HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Transmission Shift Shaft and Bell Crank (Style A) Parts Diagram

4x4 Utility Vehicle

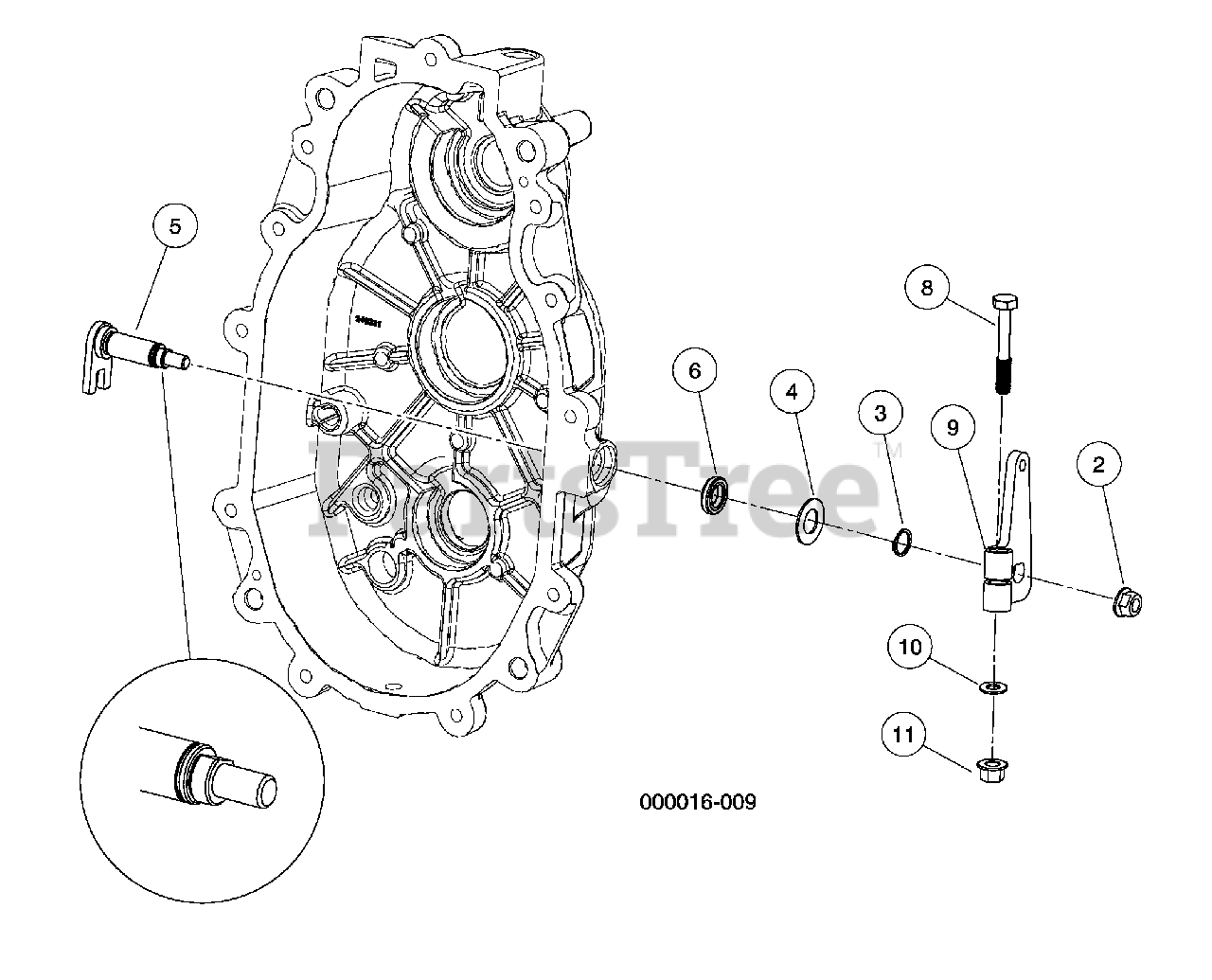

Transmission Shift Shaft and Bell Crank (Style A) Parts Diagram

  • Title

1

Husqvarna 603001785

Kit, Trans Shift Shaft Repair

Note: (includes items 2 through 6)

$

$

Not available

2

Husqvarna 603001640

Nut, Lock Hex, Nylon, 5/16-24

$

$

Not available

3

Husqvarna 603001644

Ring, Retaining, External 9/16

$

$

Not available

4

Husqvarna 603001646

Washer, Flat, .58 X 1.08 X .05

$

$

Not available

5

Husqvarna 603002839

Weldment, Shift, Shaft

$

$

Not available

6

Husqvarna 603001657

Seal, Dul Lip, .88 X .56 X .19

$

$

Not available

7

Husqvarna 531309570

Kit, Bellcrank, D Shape, Clamp

Note: (includes items 8 through 11)

$

$

Not available

8

Husqvarna 603003035

Bolt, 3/8-16 X 2.00 Hex Head.

$

$

Not available

9

Husqvarna 603004507

Asm, Bellcrank, D Shape, Clamp
(Superseded to 531309570)

$

$

Not available

10

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available

11

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
