HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Shaft Parts Diagram

4x4 Utility Vehicle

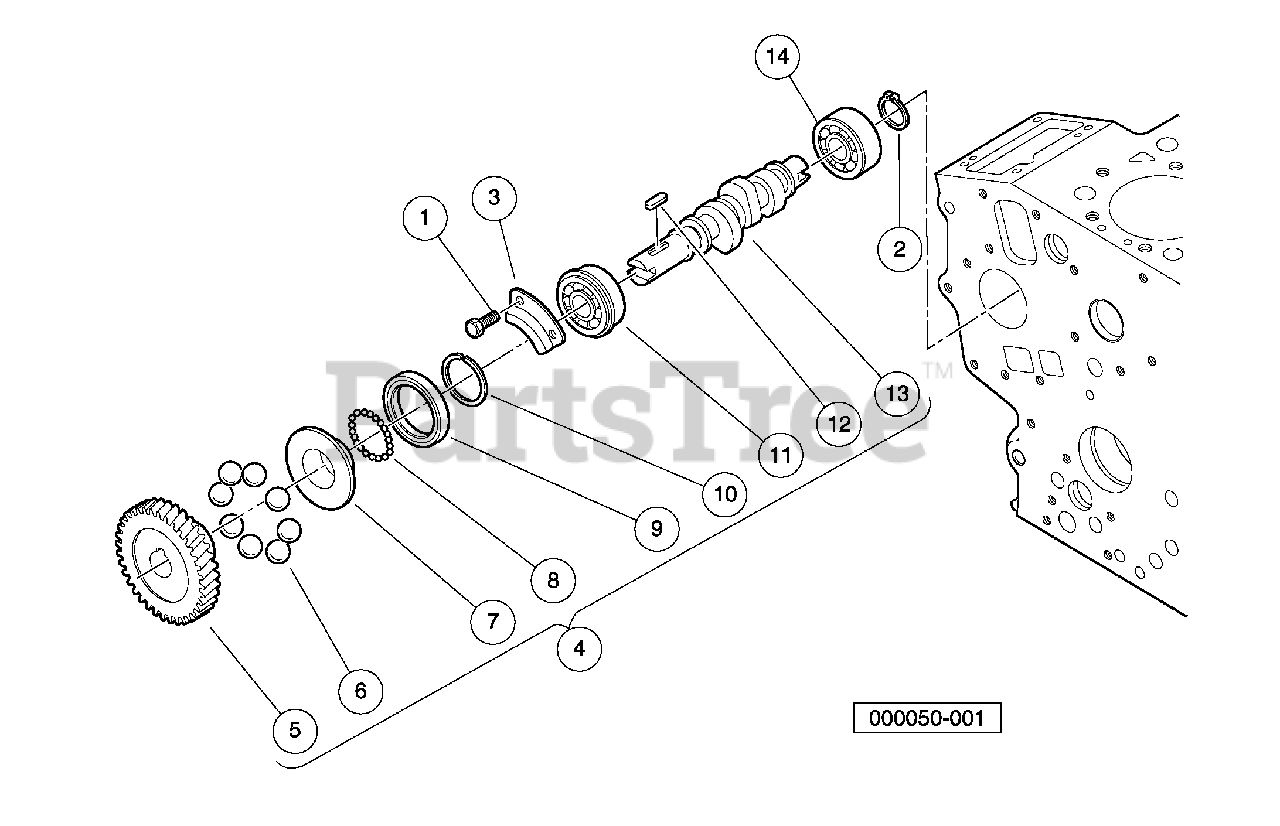

Shaft Parts Diagram

  • Title

1

603 00 12-28

Bolt, D722, Cam End

$

$

Not available

2

603 00 12-32

Circlip, External

$

$

Not available

3

603 00 12-33

Stopper, Fuel, C/shaft

$

$

Not available

4

603 00 17-23

Assy, Fuel Camshaft

Note: (includes items 5 through 13)

$

$

Not available

5

603 00 12-22

Gear, Injection Pump

$

$

Not available

6

603 00 12-23

Ball, Injection Pump

$

$

Not available

7

603 00 12-24

Sleeve, Governor

$

$

Not available

8

603 00 12-25

Ball, Governor.

$

$

Not available

9

603 00 12-26

Case, Governor Ball

$

$

Not available

10

603 00 12-27

Circlip

$

$

Not available

11

603 00 12-29

Bearing, Ball

$

$

Not available

12

603 00 12-30

Key, Feather, Short Camshaft.

$

$

Not available

13

603 00 12-31

Camshaft, Fuel, Short

$

$

Not available

14

603 00 17-24

Bearing, Ball

$

$

Not available
