HUV 4414 XP - Husqvarna 4x4 Utility Vehicle (2009-05) Main Bearing Case Parts Diagram

4x4 Utility Vehicle

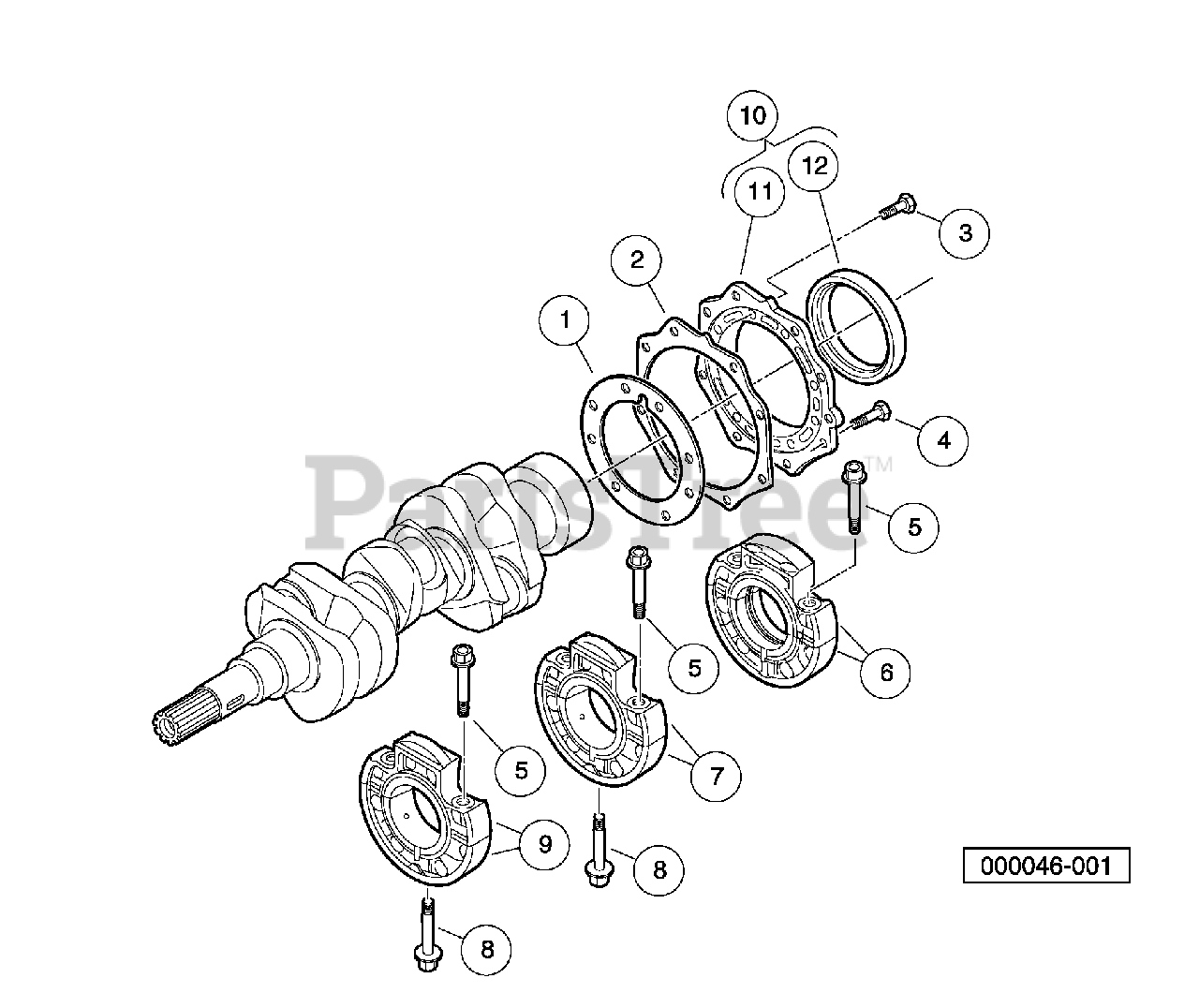

Main Bearing Case Parts Diagram

  • Title
1

Husqvarna 603001262

Gasket, Bearing Case

$

$

Not available

2

Husqvarna 603001263

Gasket, Cover

$

$

Not available

3

Husqvarna 603001266

Bolt, M6 X 1 X 20

$

$

Not available

4

Husqvarna 603001267

Bolt, M6 X 1 X 22

$

$

Not available

5

Husqvarna 603001274

Bolt, Bearing Case, Top

$

$

Not available

6

Husqvarna 603001278

Assy Case, Main Brg, First

$

$

Not available

7

Husqvarna 603001279

Assy Case, Main Brg, Sec

$

$

Not available

8

Husqvarna 603001280

Bolt, Bearing Case, Bottom

$

$

Not available

9

Husqvarna 603001281

Assy Case, Main Brg, Third

$

$

Not available

10

Husqvarna 603001718

Assy, Cover, Bearing Case

Note: (includes items 11 and 12)

$

$

Not available

11

Husqvarna 603001264

Cover, Bearing Case

$

$

Not available

12

Husqvarna 603001265

Seal, Oil.

$

$

Not available
