HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) Radiator Parts Diagram

4x4 Utility Vehicle

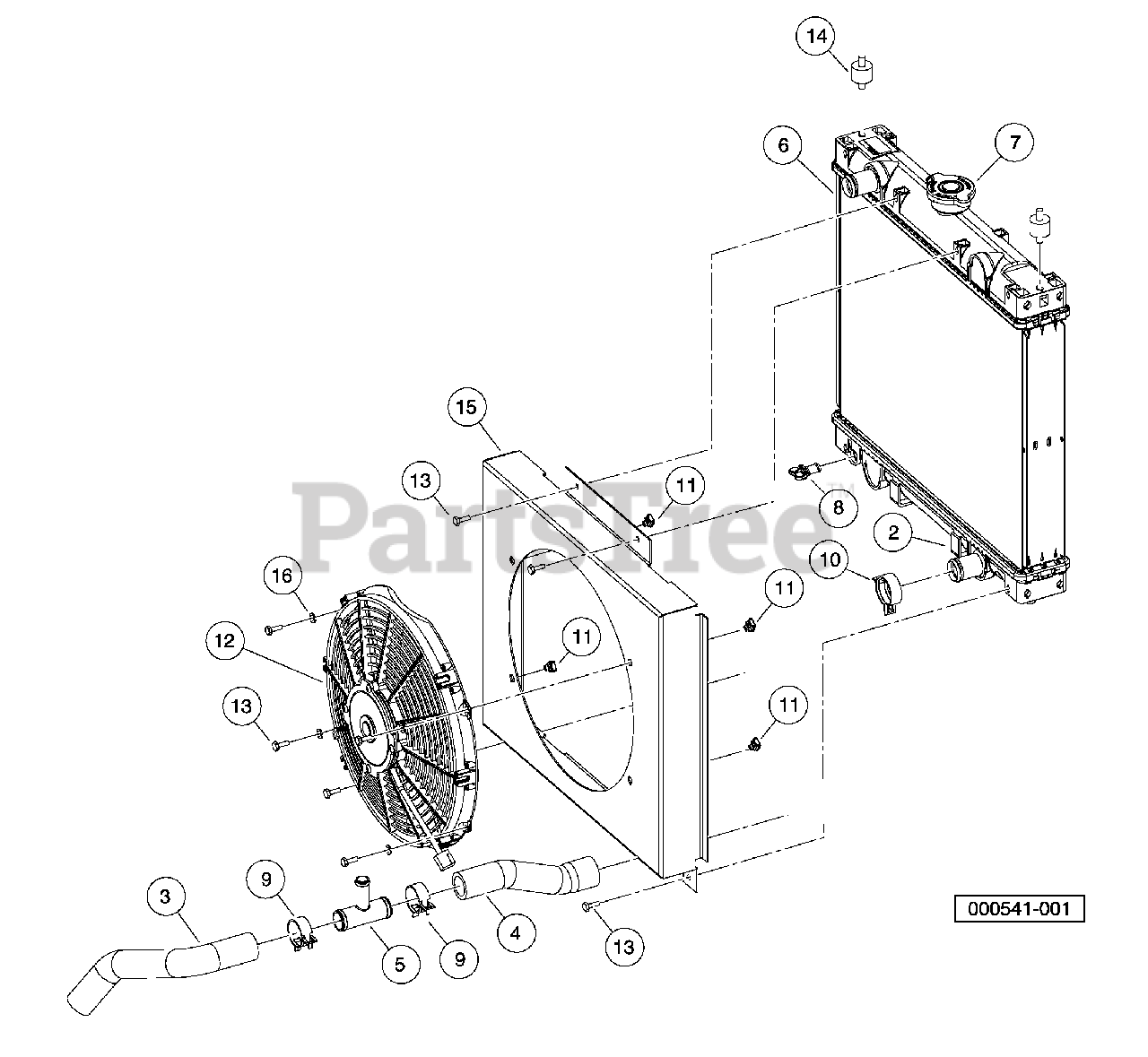

Radiator Parts Diagram

  • Title

1

Husqvarna N/A

Asm, Radiator

Note: (includes items 2 through 16)

$

$

Not available

2

Husqvarna 603000229

Tape, Vinyl Foam 1/8" x 3/4"

$

$

Not available

3

Husqvarna 603000929

Hose, Coolant Lower Pipe

$

$

Not available

4

Husqvarna 603000930

Hose, Coolant Lower Rad

$

$

Not available

5

Husqvarna 603000934

Tee, Coolant Fill

$

$

Not available

6

Husqvarna 603000964

Exchanger, Engine Coolant

Note: (includes items 7 and 8)

$

$

Not available

7

Husqvarna 603001764

Cap, Radiator

$

$

Not available

8

Husqvarna 603001765

Drain Cock, Radiator

$

$

Not available

9

Husqvarna 603000973

Clamp, Hose, Ctb 35mm

$

$

Not available

10

Husqvarna 603000974

Clamp, Hose, Ctb 38mm

$

$

Not available

11

Husqvarna 603000977

Nut, Self Retaining

$

$

Not available

12

Husqvarna 603001021

Fan, Cooling 12 In Elect

$

$

Not available

13

Husqvarna 603001167

Bolt, M6 X 1 X 16 Loctite

$

$

Not available

14

Husqvarna 603001601

Isolator, Twin-Stud

$

$

Not available

15

Husqvarna 603001185

Shroud, Radiator Fan

$

$

Not available

16

Husqvarna 603000442

Washer, M6

$

$

Not available
