HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) Electrical Components - Diesel Parts Diagram

4x4 Utility Vehicle

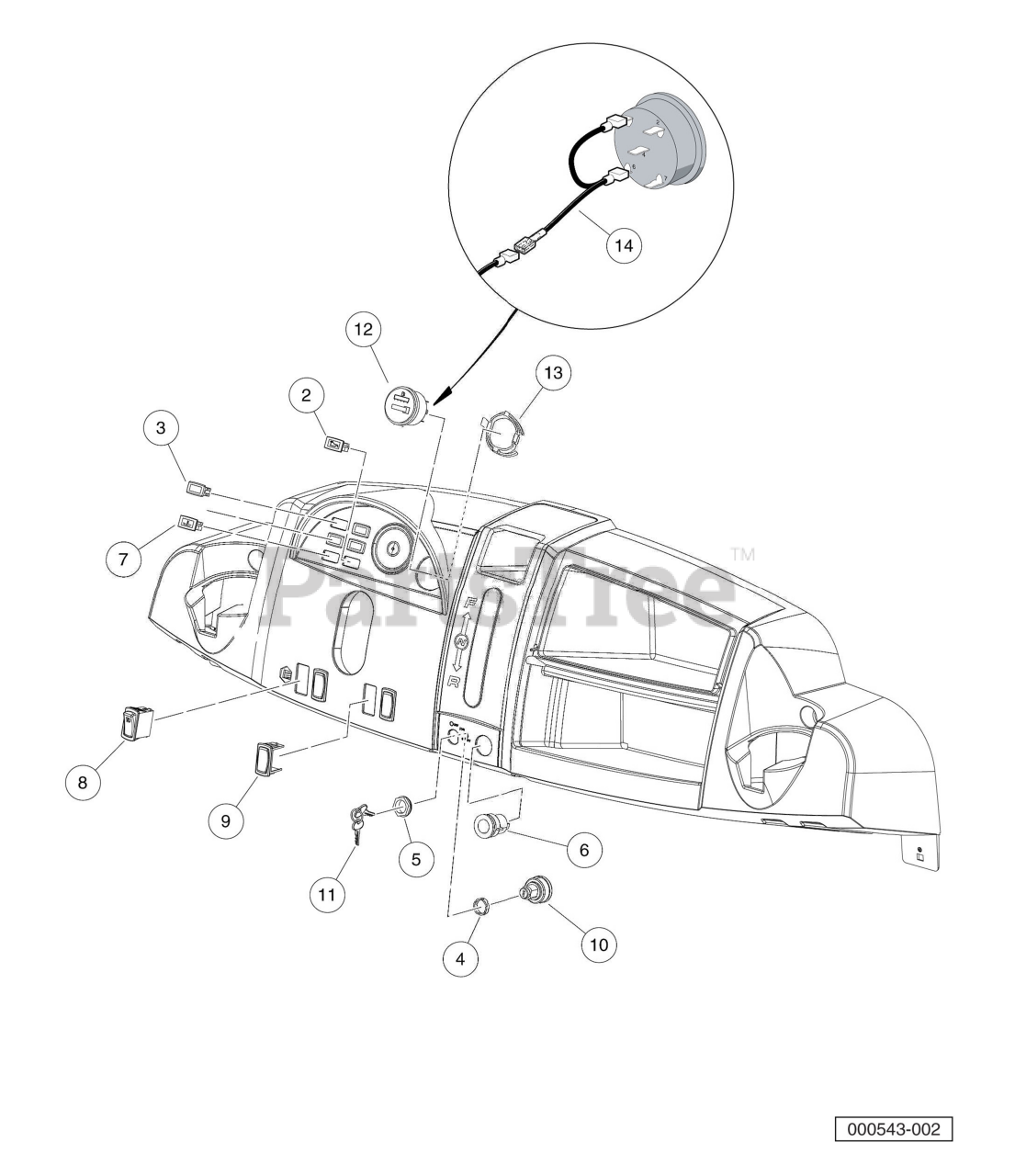

Electrical Components - Diesel Parts Diagram

  • Title
1

Husqvarna N/A

Instl, Elec Sys, Restyle Diesl

Note: (includes items 2 through 14)

$

$

Not available

2

603 00 03-66

Light, Oil

$

$

Not available

3

603 00 35-54

Plug, Hole

$

$

Not available

4

603 00 07-60

Spacer, Keyswitch

$

$

Not available

5

603 00 07-61

Nut, Key Switch

$

$

Not available

6

603 00 08-01

Receptacle, Accessory

$

$

Not available

7

603 00 09-22

Light, Indicator, Coolant Temp

$

$

Not available

8

531 30 82-50

Switch, Rocker, Light

$

$

Not available

9

603 00 35-55

Cover, Hole, Switch, Rocker

$

$

Not available

10

603 00 35-56

Keyswitch, 12v, Diesel

$

$

Not available

11

531 30 83-86

Keys (set of 2)

$

$

Not available

12

603 00 41-68

Gauge Fuel-hour Sep Gnd

$

$

Not available

13

603 00 41-69

Clip, Meter, Round

$

$

Not available

14

603 00 41-70

Asm Wire Meter F-h Jumper

$

$

Not available
