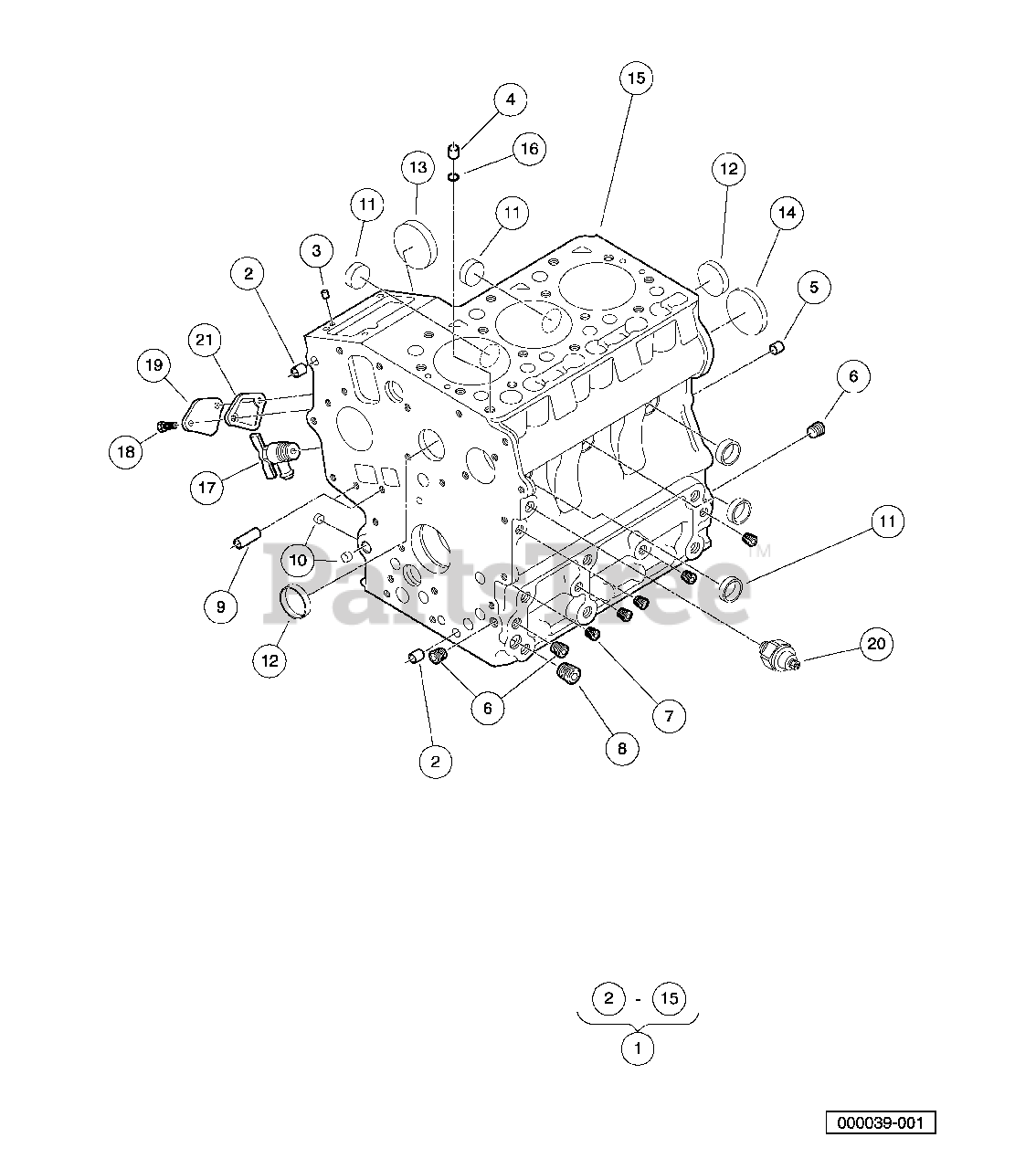

HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) Crankcase Parts Diagram

4x4 Utility Vehicle

Crankcase Parts Diagram

  • Title

1

Husqvarna 603001199

Engine Block

Note: (includes items 2 through 15)

$

$

Not available

2

Husqvarna 603001200

Pin, Pipe, Dia 8 X 14

$

$

Not available

3

Husqvarna 603001201

Pin, Straight, Dia 5 X 10

$

$

Not available

4

Husqvarna 603001203

Pin, Pipe, Dia 7 X 14

$

$

Not available

5

Husqvarna 603001204

Pin, Straight, Dia 8 X 16

$

$

Not available

6

Husqvarna 603001205

Plug, 1/8"

$

$

Not available

7

Husqvarna 603001206

Plug, 3/32"

$

$

Not available

8

Husqvarna 603001207

Plug, 1/4"

$

$

Not available

9

Husqvarna 603001209

Pin, Pipe, Dia 8 X 11

$

$

Not available

10

Husqvarna 603001700

Cap, Sealing, Small

$

$

Not available

11

Husqvarna 603001701

Cap, Sealing, Med

$

$

Not available

12

Husqvarna 603001702

Cap, Sealing, Large

$

$

Not available

13

Husqvarna 603001703

Cover, Fuel Camshaft

$

$

Not available

14

Husqvarna 603001704

Plug, Expansion

$

$

Not available

15

Block, Engine

$

$

Not available

16

Husqvarna 603001202

O Ring, 8 X 7

$

$

Not available

17

Husqvarna 603001210

Cock, Drain

$

$

Not available

18

Husqvarna 603001343

Bolt, M6 X 1 X 20

$

$

Not available

19

Husqvarna 603001661

Plate, Engine Block

$

$

Not available

20

Husqvarna 603001746

Switch, Oil Pressure

$

$

Not available

21

Husqvarna 603001762

Gasket, Fuel Pump, D722

$

$

Not available
