HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) Bucket Seats - Black Parts Diagram

4x4 Utility Vehicle

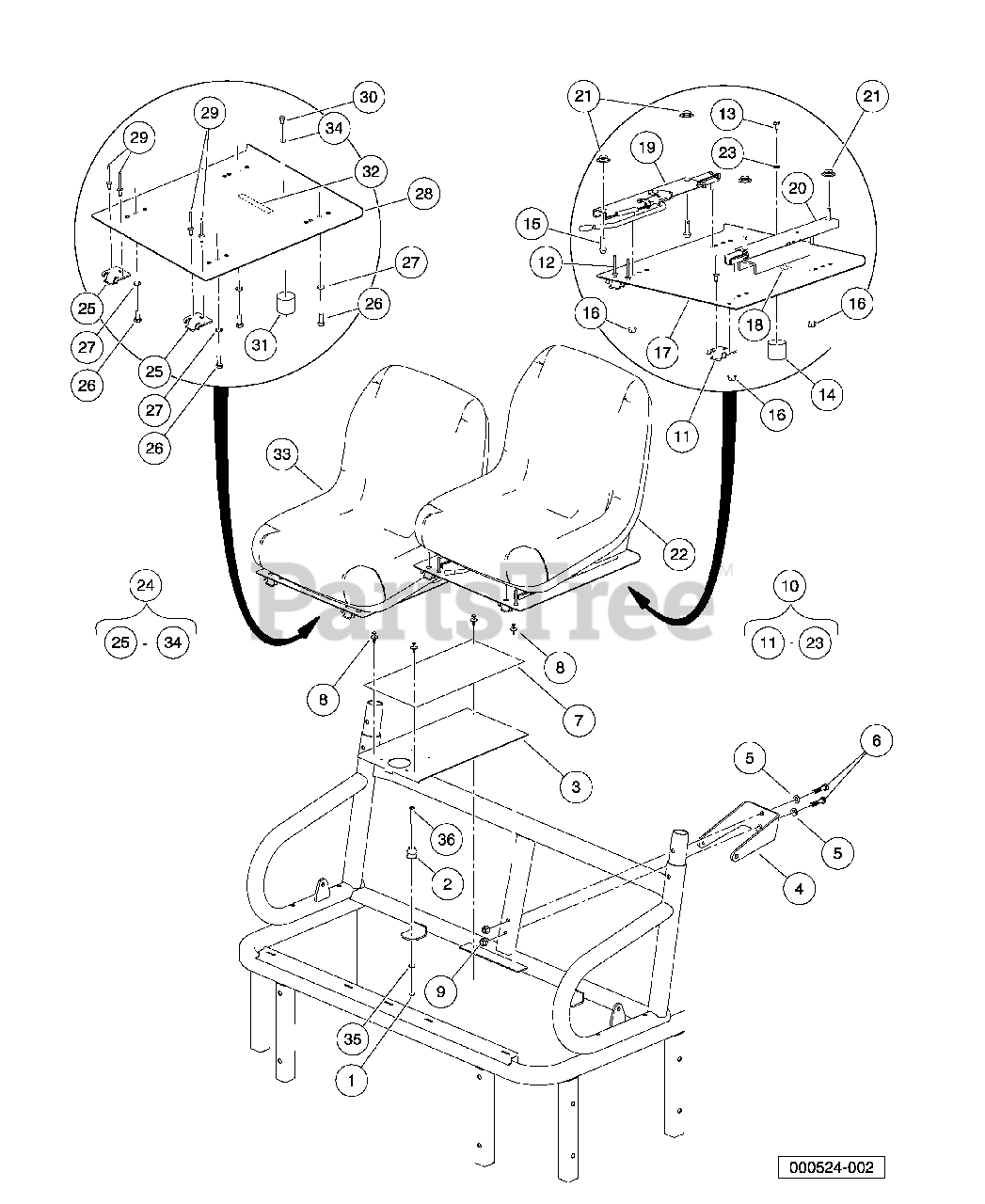

Bucket Seats - Black Parts Diagram

  • Title

1

Husqvarna 603000558

Locknut, M6-1.00 Nylon Insert

$

$

Not available

2

Husqvarna 603000773

Seat Holder Base

$

$

Not available

3

Husqvarna 603001049

Pan, Center, Closeout

$

$

Not available

4

Husqvarna 603001585

Bracket, Seatbelt, Bolt-On

$

$

Not available

5

Husqvarna 603001673

Washer, Hard, M10, Zn-Ni/Blk

$

$

Not available

6

Husqvarna 603001760

Bolt, M10 X 45, Zn-Ni (Black)

$

$

Not available

7

Husqvarna 603003464

Cover, Center Console

$

$

Not available

8

Husqvarna 603000695

Rivet, Removable, Tuflok 1/4"

$

$

Not available

9

Husqvarna 603003475

Nut, Flanged, M10 x 1.5, Black

$

$

Not available

10

Husqvarna 603003466

Asm, Bracket Seat, Adj, Blk

Note: (includes items 11 through 23)

$

$

Currently unavailable

11

Husqvarna 603000125

Hinge Plate

$

$

Not available

12

Husqvarna 603000736

Rivet, 1/4 X .438 Blind

$

$

Not available

13

Husqvarna 603000774

Screw, 6m-1.00 X 10mm Hex Head

$

$

Not available

14

Husqvarna 603000777

Seat Holder Cup

$

$

Not available

15

Husqvarna 603000875

Bolt, Flange Head, M8 X 30.0

$

$

Not available

16

Husqvarna 603001298

Nut,m8,all Metal Lock

$2.49

$

In Stock, Qty 11

0

17

Husqvarna 603001093

Pan, Seat, Driver Asm

$

$

Not available

18

Husqvarna 603001102

Decal, Hot Surface Warning

$

$

Not available

19

Husqvarna 603001137

Adjuster, Forward/Aft

$

$

Not available

20

Husqvarna 603001138

Adjuster, Slider

$

$

Not available

21

Husqvarna 603001145

Washer, Bell

$

$

Not available

22

Husqvarna 603004080

Seat, Bucket, Black

$

$

Not available

23

Husqvarna 603000058

Lockwasher, 1/4 Helical Split

$

$

Not available

24

Asm, Bracket Seat, Passenger, Blk

Note: (includes items 25 through 34)

$

$

Not available

25

Husqvarna 603000125

Hinge Plate

$

$

Not available

26

Husqvarna 603000579

Screw, M8-125 X 22 Hex-Head

$

$

Not available

27

Husqvarna 603000184

Lockwasher, 8mm Split

$

$

Not available

28

Husqvarna 603000689

Pan, Seat, Passenger

$

$

Not available

29

Husqvarna 603000736

Rivet, 1/4 X .438 Blind

$

$

Not available

30

Husqvarna 603000774

Screw, 6m-1.00 X 10mm Hex Head

$

$

Not available

31

Husqvarna 603000777

Seat Holder Cup

$

$

Not available

32

Husqvarna 603001102

Decal, Hot Surface Warning

$

$

Not available

33

Husqvarna 603004080

Seat, Bucket, Black

$

$

Not available

34

Husqvarna 603000058

Lockwasher, 1/4 Helical Split

$

$

Not available

35

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

36

Husqvarna 603000452

Bolt, M6 X 1 X 45

$

$

Not available
