HUV 4414 - Husqvarna 4x4 Utility Vehicle (2009-05) 60-Amp Alternator Parts Diagram

4x4 Utility Vehicle

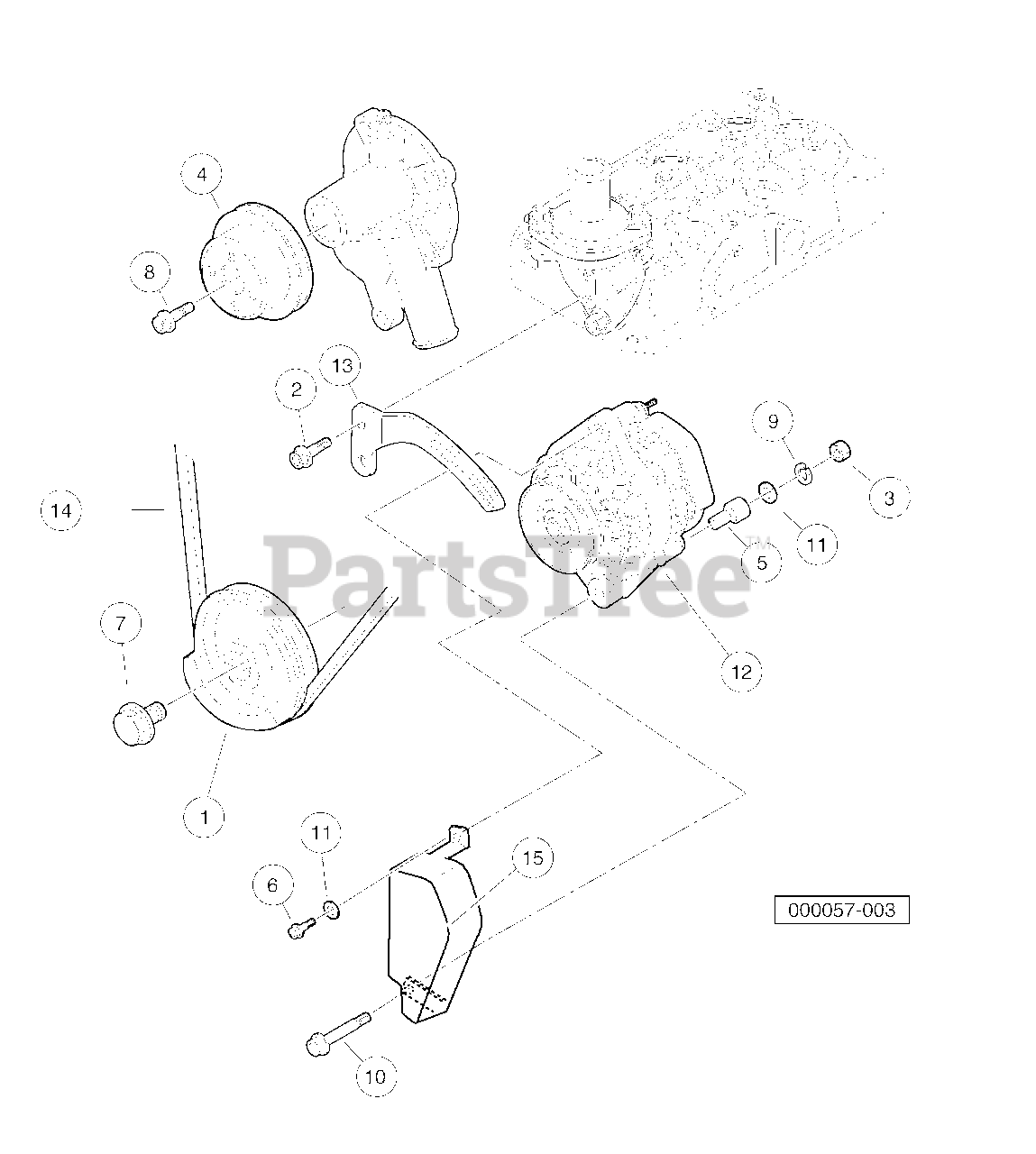

60-Amp Alternator Parts Diagram

  • Title
1

Husqvarna 603001335

Pulley, Fan Drive

$

$

Not available

2

Husqvarna 603001343

Bolt, M6 X 1 X 20

$

$

Not available

3

Husqvarna 603001820

Nut, M8, Plate

$

$

Not available

4

Husqvarna 603001663

Pulley, Water Pump

$

$

Not available

5

Husqvarna 603001740

Collar, Alternator Assy, D722

$

$

Not available

6

Husqvarna 603001742

Bolt, Alt, D722, Adjuster

$

$

Not available

7

Husqvarna 603001744

Bolt, Alt, D722, Drive Pulley

$

$

Not available

8

Husqvarna 603001751

Bolt, D722, Drive Pulley

$

$

Not available

9

Husqvarna 603001819

Washer, Spring, D722, Starter

$

$

Not available

10

Husqvarna 603001743

Bolt, Alternator, Lower

$

$

Not available

11

Husqvarna 603001821

Washer, Alternator, Upper

$

$

Not available

12

Husqvarna 603004477

Alternator, 60 Amp

$

$

Not available

13

Husqvarna 603004478

Brkt, Alt, D722, 60 Amp

$

$

Currently unavailable

14

Husqvarna 603004479

Belt, Acc Drive, D722, 60 Amp

$

$

Not available

15

Husqvarna 603004480

Guard, Acc Belt

$

$

Currently unavailable
