HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Tilt Bed, Hinge, and Latch Parts Diagram

4x2 Utility Vehicle

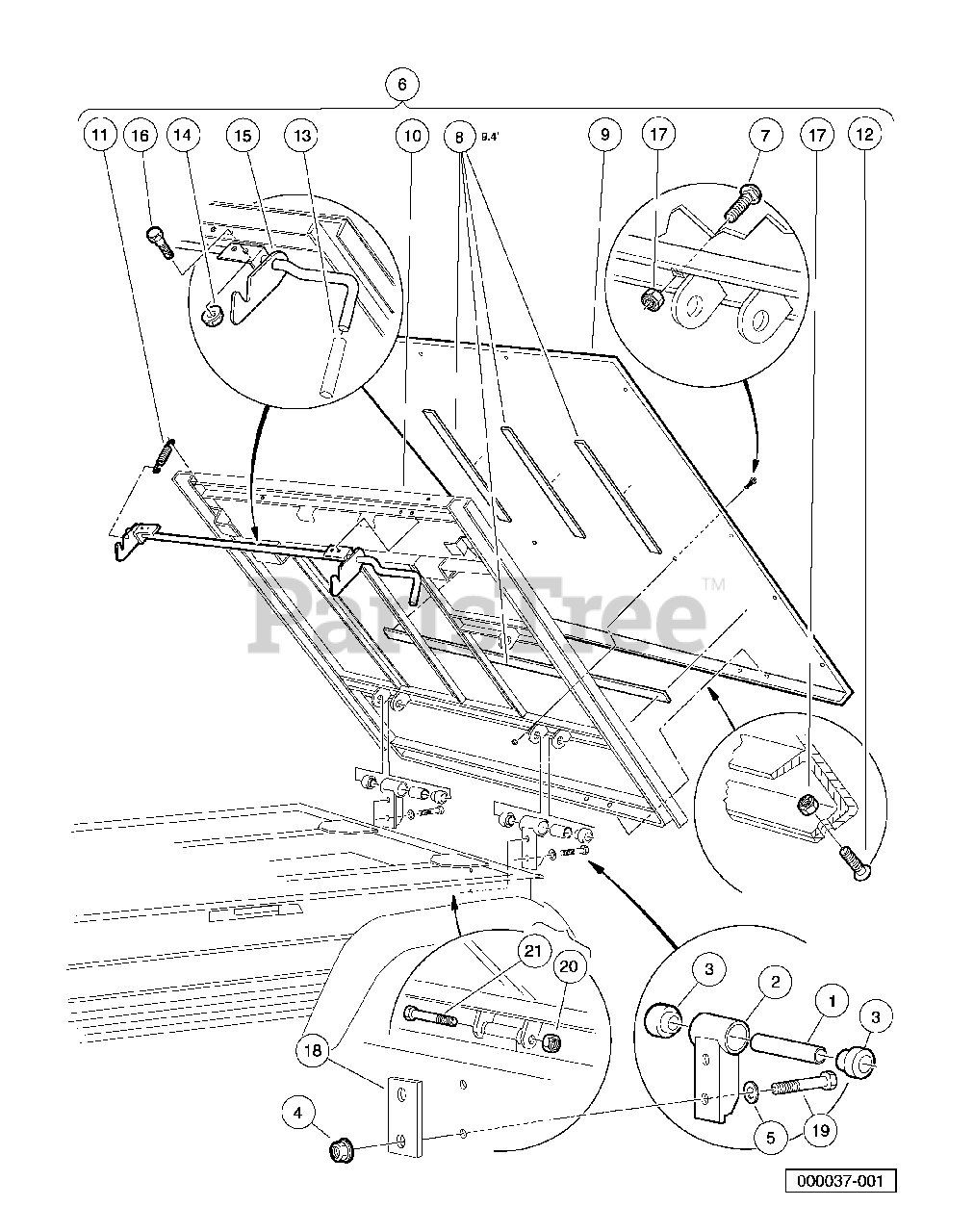

Tilt Bed, Hinge, and Latch Parts Diagram

  • Title

1

Husqvarna 603000136

Bushing, Steel

$

$

Not available

2

Husqvarna 603000250

Hinge

$

$

Not available

3

Husqvarna 603000263

Bushing, Urethane

$

$

Not available

4

Husqvarna 603000780

Locknut, 3/8-16 Flanged Dimple

$

$

Not available

5

Husqvarna 603000781

Washer, 3/8 Type B Hard Flat

$

$

Not available

6

Husqvarna 603002655

Tilt Bed Assembly

Note: (includes items 7 through 17)

$

$

Not available

7

Husqvarna 603000107

Bolt, Carriage, 5/16-18 X 1.00

$

$

Not available

8

Husqvarna 603000229

Tape, Vinyl Foam 1/8" x 3/4" *

$

$

Not available

9

Plate, Floor Bed

$

$

Not available

10

Frame Assembly

$

$

Not available

11

Husqvarna 603000254

Extension, Spring Latch

$

$

Not available

12

Husqvarna 603000255

Screw, 5/16-18 X 0.88 Torx Truss-Head

$

$

Not available

13

Husqvarna 603000256

Grip, Tilt Latch Hand

$

$

Not available

14

Husqvarna 603000521

Locknut, 1/4-20 Hex Whiz

$

$

Not available

15

Husqvarna 603002765

Ltch Weld Asm Tlt Bd

$

$

Not available

16

Husqvarna 603000057

Screw, 1/4-20 X 0.625 Hex-Head Cap

$

$

Not available

17

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available

18

Husqvarna 603001286

Plate, Back

$

$

Not available

19

Husqvarna 603000080

Bolt, 3/8-16 X 3.00 Hex Head

$

$

Not available

20

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available

21

Husqvarna 603000096

Screw, 3/8-16 X 3.375 Hex Cap

$

$

Not available
