HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Shrouds and Brackets Parts Diagram

4x2 Utility Vehicle

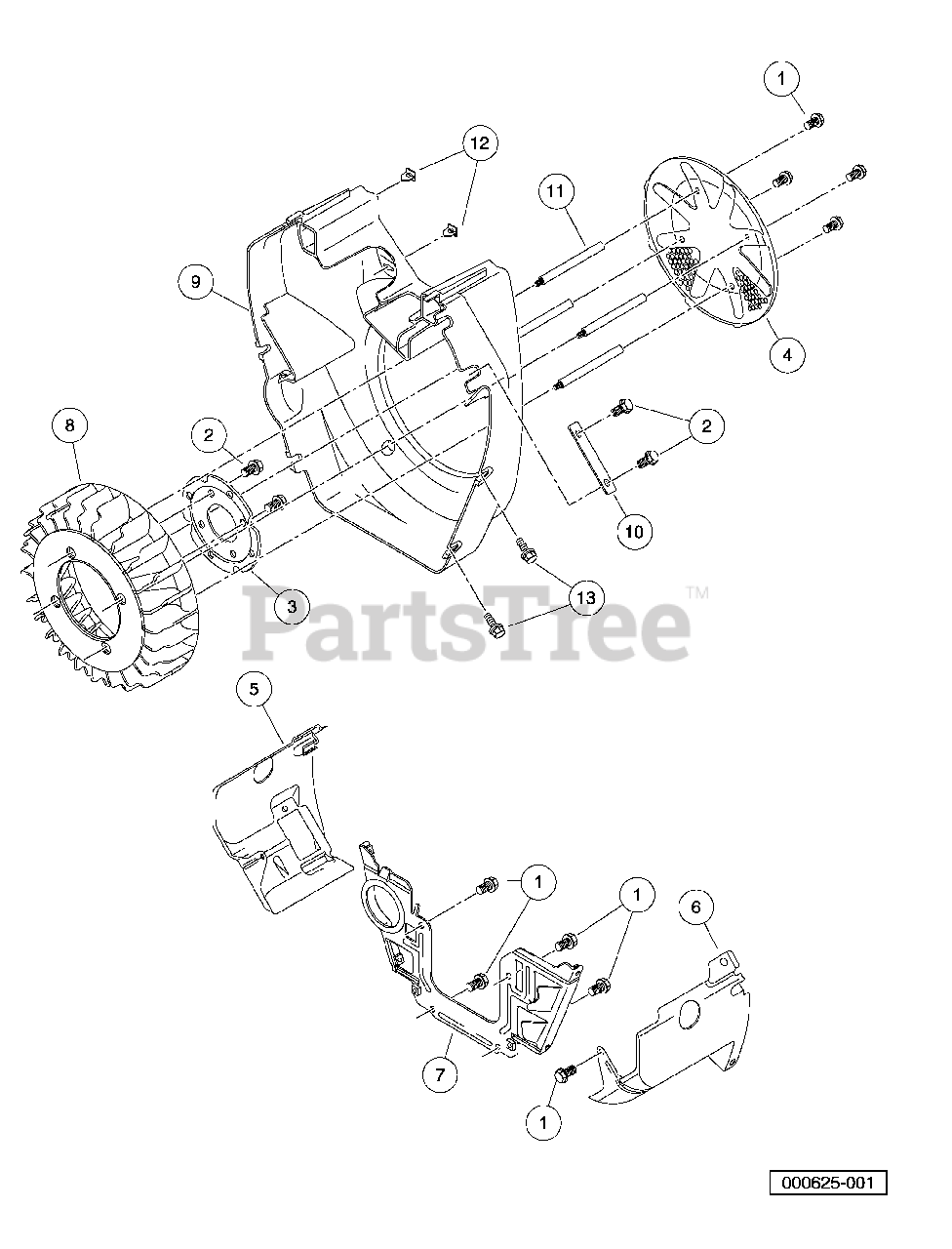

Shrouds and Brackets Parts Diagram

  • Title
1

Husqvarna 603003928

Bolt, Flg, M6 X 1.0 X 12

$

$

Not available

2

Husqvarna 603003927

Bolt, Flg, M6 X 1.0 X 16

$

$

Not available

3

Husqvarna 603003875

Plate, Housing, Fan, Fh

$

$

Not available

4

Husqvarna 603003874

Screen, Fan, Fh.

$

$

Not available

5

Husqvarna 603003873

Shroud, Engine, Rh, Fh

$

$

Not available

6

Husqvarna 603003872

Shroud, Engine, Lh, Fh

$

$

Not available

7

Husqvarna 603003871

Shroud, Engine, Front, Fh

$

$

Not available

8

Husqvarna 603003870

Fan, Cooling, Fh

$

$

Not available

9

Husqvarna 603003869

Housing, Engine, Fh

$

$

Not available

10

Husqvarna 603003868

Washer, Housing, Fan, Fh

$

$

Not available

11

Husqvarna 603003817

Stud, Fan Screen, Fh

$

$

Not available

12

Husqvarna 603003816

Nut, Press In, Front Cover, Fh

$

$

Not available

13

Husqvarna 603003809

Bolt, Oil Pickup, Fh

$

$

Currently unavailable
