HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Prop Shafts Parts Diagram

4x2 Utility Vehicle

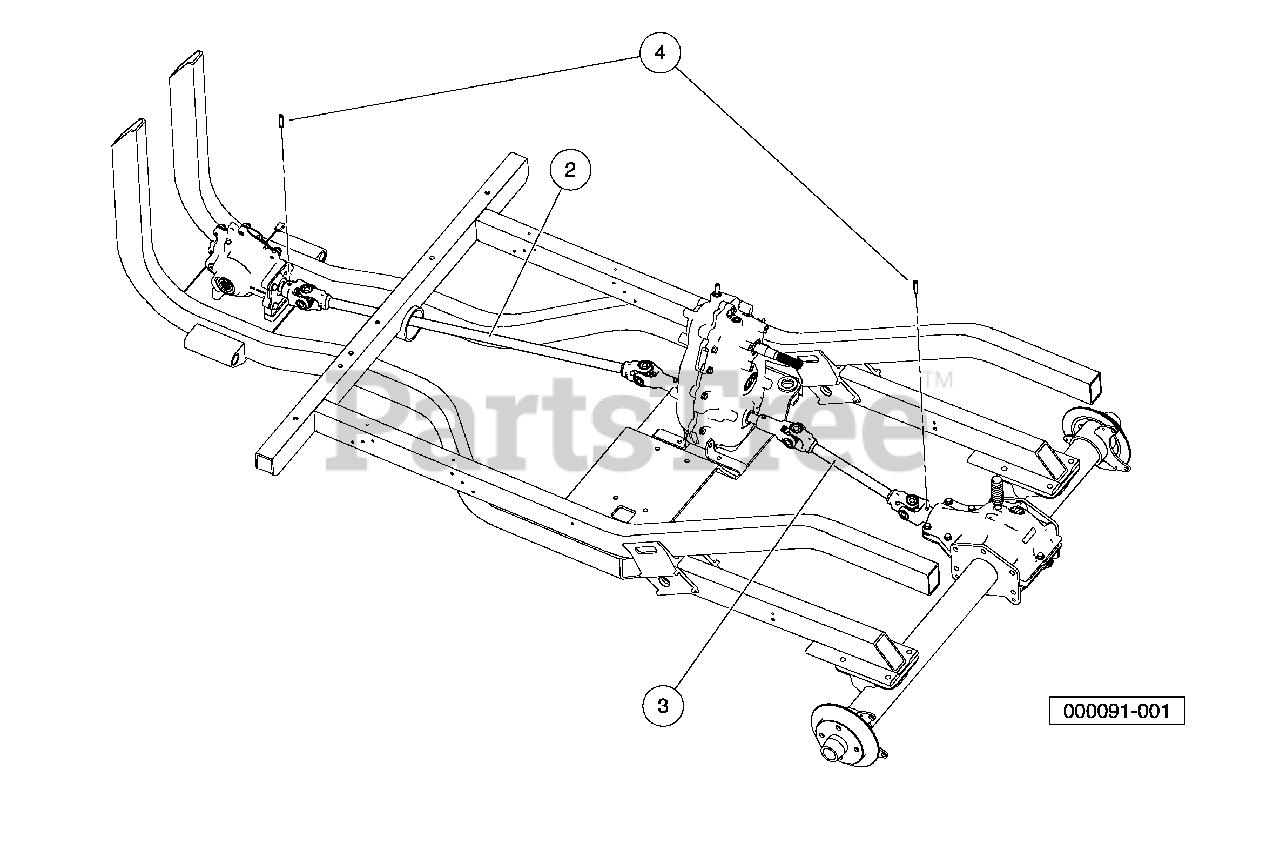

Prop Shafts Parts Diagram

  • Title
1

Inst, Prop Shafts, Awd

Note: (includes items 2 through 4)

$

$

Not available

2

Husqvarna 603000912

Prop Shaft, Front

$

$

Not available

3

Husqvarna 603000915

Prop Shaft, Rear

$

$

Not available

4

Husqvarna 603000436

Pin, Spring, 5/16 X 1-1/2 Hd
(Superseded to 586602101)

$3.49

$

In Stock, only 3 left!
