HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Piston and Crankshaft Parts Diagram

4x2 Utility Vehicle

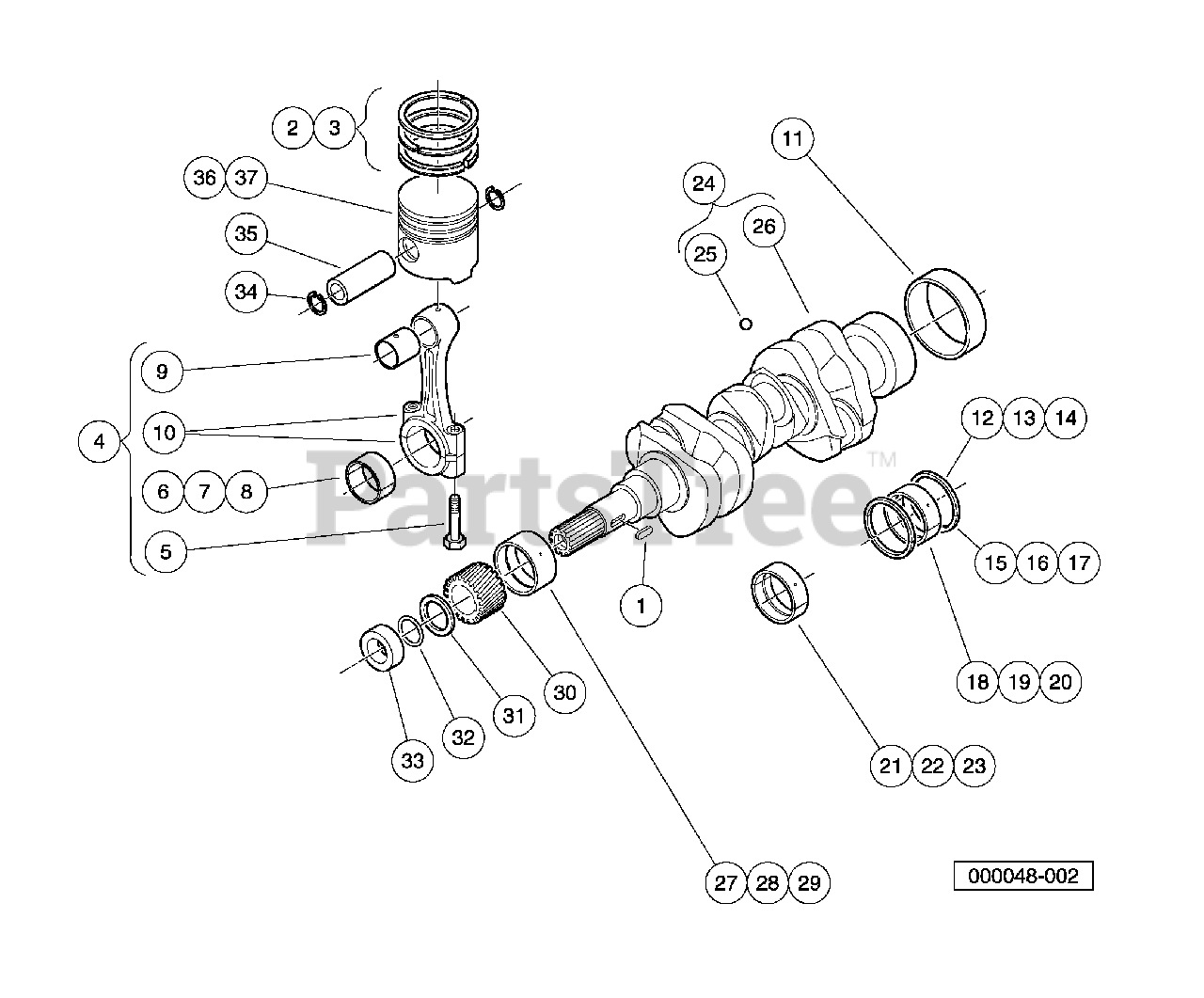

Piston and Crankshaft Parts Diagram

  • Title

1

Husqvarna 603001230

Key, Feather, Short Camshaft

$

$

Not available

2

Husqvarna 603001256

Assy Piston Ring, D722 Std

$

$

Not available

3

Husqvarna 603001257

Assy Piston Ring, D722 +.025

$

$

Not available

4

Husqvarna 603001258

Assy, Connecting Rod

Note: (includes items 5 through 10)

$

$

Not available

5

Husqvarna 603001259

Bolt, Connecting Rod

$

$

Not available

6

Husqvarna 603001336

Metal, Crank, Rod, D722, Std

$

$

Not available

7

Husqvarna 603001337

Metal, Crank, Rod, D722, .020

$

$

Not available

8

Husqvarna 603001338

Metal, Crank, Rod, D722, .040

$

$

Not available

9

Husqvarna 603001758

Bushing, Piston Pin, D722

$

$

Not available

10

Rod, Connecting

$

$

Not available

11

Husqvarna 603001261

Sleeve, Crankshaft

$

$

Not available

12

Husqvarna 603001268

Metal,crank, O Side, Std

$

$

Not available

13

Husqvarna 603001269

Metal,crank, O Side, +.020

$

$

Not available

14

Husqvarna 603001270

Metal,crank, O Side, +.040

$

$

Not available

15

Husqvarna 603001271

Metal,crank, I Side, Std

$

$

Not available

16

Husqvarna 603001272

Metal,crank, I Side, +.020

$

$

Not available

17

Husqvarna 603001273

Metal,crank, I Side, +.040

$

$

Not available

18

Husqvarna 603001275

Metal, Crank, Main, Rear Std

$

$

Not available

19

Husqvarna 603001276

Metal, Crank, Main, Rear -.020

$

$

Not available

20

Husqvarna 603001277

Metal, Crank, Main, Rear -.040

$

$

Not available

21

Husqvarna 603001282

Metal, Crank, Main, Mid Std

$

$

Not available

22

Husqvarna 603001283

Metal, Crank, Main, Mid +.020

$

$

Not available

23

Husqvarna 603001284

Metal, Crank, Main, Mid +.040

$

$

Not available

24

Husqvarna 603001285

Crankshaft

Note: (includes items 25 and 26)

$

$

Not available

25

Husqvarna 603001260

Ball, Crankshaft

$

$

Not available

26

Crankshaft

$

$

Not available

27

Husqvarna 603001328

Metal, Crank, D722, Frnt, Std

$

$

Not available

28

Husqvarna 603001329

Metal, Crank, 722, Frnt, -.020

$

$

Not available

29

Husqvarna 603001330

Metal, Crank, 722, Frnt, -.040

$

$

Not available

30

Husqvarna 603001331

Gear, Crank

$

$

Not available

31

Husqvarna 603001332

Slinger, Oil

$

$

Not available

32

Husqvarna 603001333

O Ring, 23 X 26

$

$

Not available

33

Husqvarna 603001334

Collar, Crankshaft

$

$

Not available

34

Husqvarna 603001339

Circlip, Piston Pin

$

$

Not available

35

Husqvarna 603001340

Pin, Piston

$

$

Not available

36

Husqvarna 603001719

Piston, D722, Std

$

$

Not available

37

Husqvarna 603001720

Piston, D722, +0.25

$

$

Not available
