HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Intake Duct and Air Box Assembly - Kawasaki Gasoline Vehicles Parts Diagram

4x2 Utility Vehicle

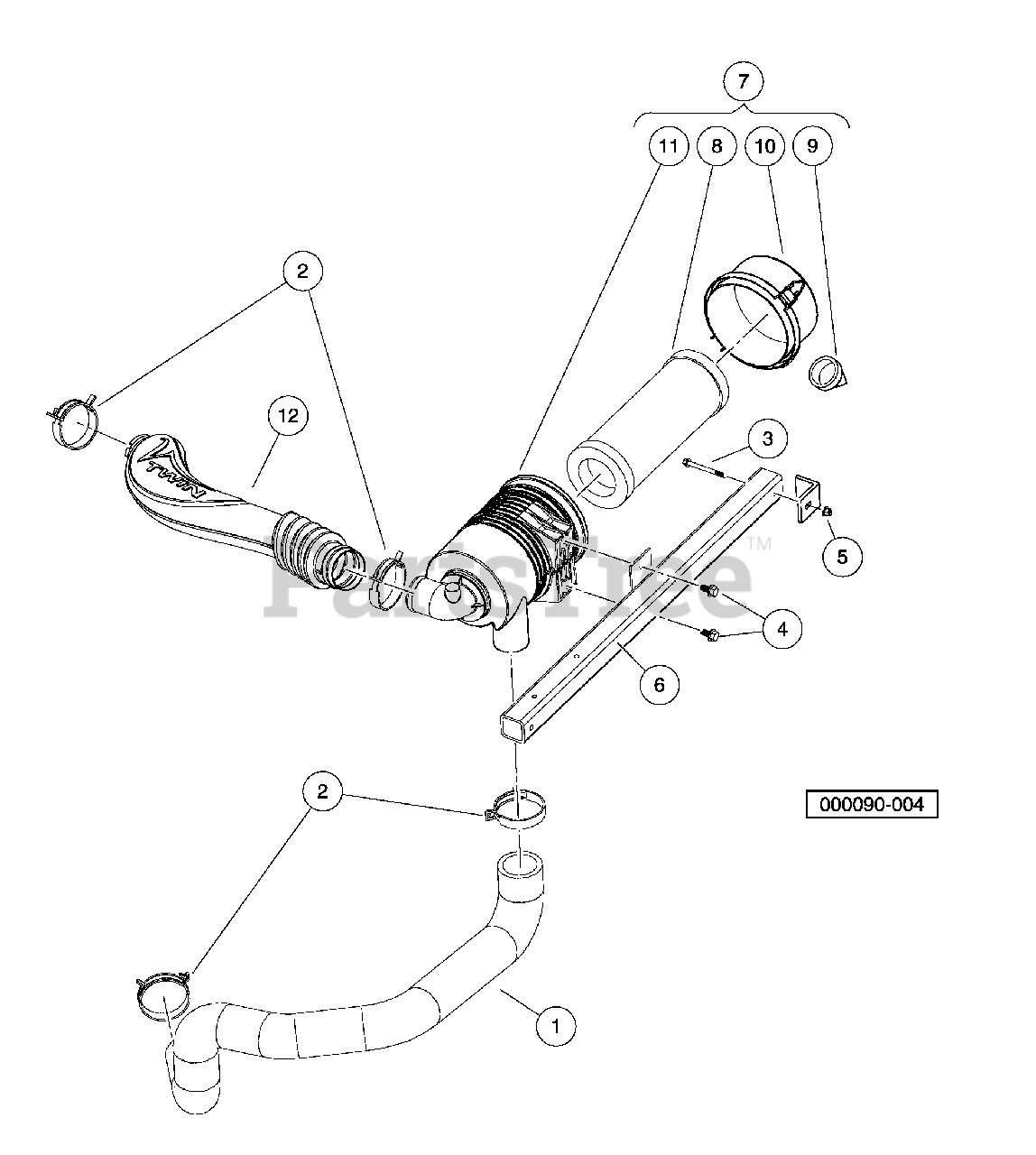

Intake Duct and Air Box Assembly - Kawasaki Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 603000943

Hose, Intake, Primary

$

$

Not available

2

Husqvarna 603000976

Clamp, Hose, Ctb 64mm

$

$

Not available

3

Husqvarna 603001198

Bolt, M 6 X 1.0 X 65 Hex, Flange, Head, Black.

$

$

Not available

4

Husqvarna 603001315

Bolt Flanged Head, M8 X1.25x 16 with Loctite

$

$

Not available

5

Husqvarna 603001317

Nut Flg, M6 X 1.0 Nylon

$

$

Not available

6

Weldment, Support, Air Cleaner

$

$

Not available

7

Husqvarna 603000933

Filter, Air, Canister, W/labe

Note: (includes items 8 through 11)

$

$

Not available

8

Husqvarna 603000010

Element, Filter, Air, 5 In

$

$

Not available

9

Husqvarna 603001698

Valve, Evacuator, Filter Air

$

$

Not available

10

Husqvarna 603001699

Cap, Latch Lock, Filter, Air

$

$

Not available

11

Body, Canister, Filter, Air

$

$

Not available

12

Husqvarna 603003846

Hose, Intake, Fh680d

$

$

Not available
