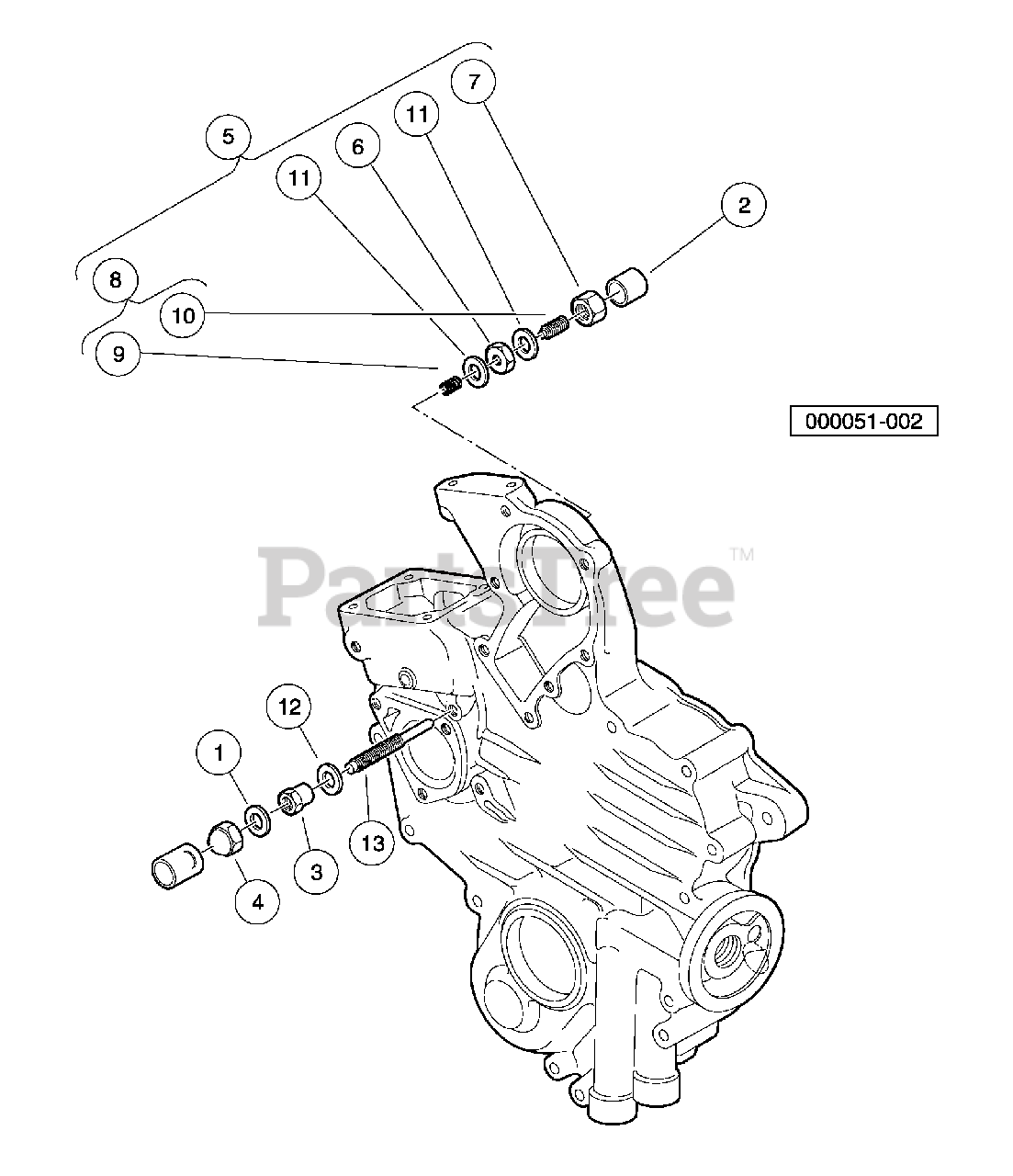

HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Idle Apparatus Parts Diagram

4x2 Utility Vehicle

Idle Apparatus Parts Diagram

  • Title
1

Husqvarna 603001369

Gasket, 6 X 10

$

$

Not available

2

Husqvarna 603001371

Cap, Bolt Assy

$

$

Not available

3

Husqvarna 603001381

Nut, Lock, Special

$

$

Not available

4

Husqvarna 603001382

Nut, Special

$

$

Not available

5

Husqvarna 603001725

Assy, Idle Apparatus

Note: (includes items 6 through 11)

$

$

Not available

6

Husqvarna 603001370

Nut, M8, D722 Idle App, Specl

$

$

Not available

7

Husqvarna 603001372

Nut, M8, D722 Idle App

$

$

Not available

8

Husqvarna 603001726

Assy, Bolt, Adjusting

Note: (includes items 9 and 10)

$

$

Not available

9

Spring, Idle Apparatus

$

$

Not available

10

Stud, Idle Adjustment

$

$

Not available

11

Husqvarna 603002800

Gasket, Idle Apparatus, Rear

$

$

Not available

12

Husqvarna 603001728

Gasket, Idle Apparatus, Front

$

$

Not available

13

Husqvarna 603002801

Bolt, Idle Adjusting.

$

$

Not available
