HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Head Cover Parts Diagram

4x2 Utility Vehicle

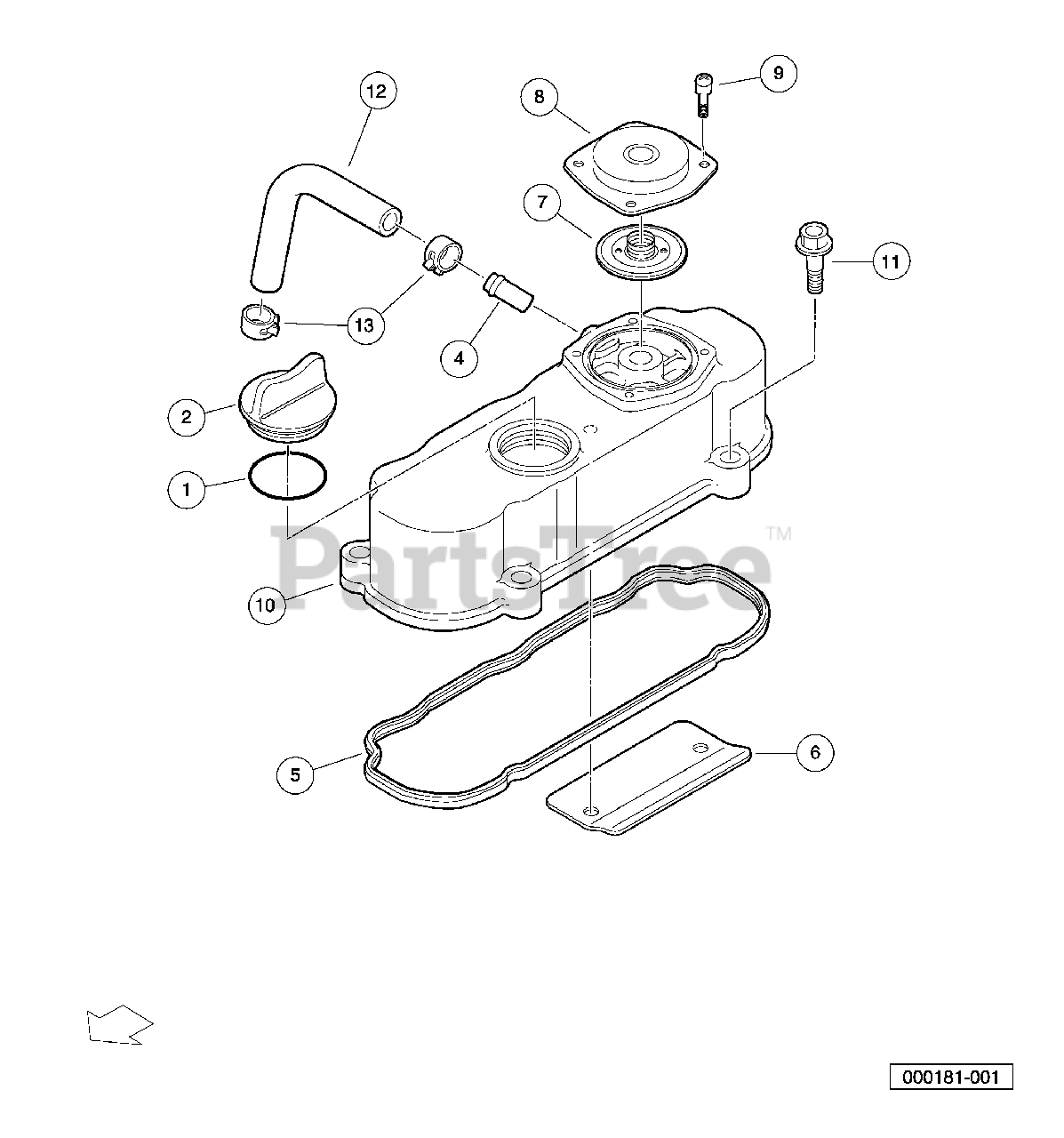

Head Cover Parts Diagram

  • Title
1

Husqvarna 603001406

O Ring, 30 X 36

$

$

Not available

2

Husqvarna 603001407

Plug, Oil Filler

$

$

Not available

3

Husqvarna 603001813

Assembly, Cylinder Head Cover

Note: (includes items 4 through 10)

$

$

Not available

4

Husqvarna 603001828

Pipe, Water Return, D722

$

$

Not available

5

Husqvarna 603001823

Gasket, Cylinder Head Cover

$

$

Not available

6

Husqvarna 603001824

Shield, Breather
(Superseded to 603001813)

$

$

Not available

7

Husqvarna 603001825

Valve, Breather

$

$

Not available

8

Husqvarna 603001826

Cover, Breather

$

$

Not available

9

Husqvarna 603001827

Screw, Breather

$

$

Not available

10

Cover, Cylinder Head

$

$

Not available

11

Husqvarna 603001829

Bolt, Cylinder Head Cover

$

$

Not available

12

Husqvarna 603001830

Tube, Breather

$

$

Not available

13

Husqvarna 603001831

Clamp, Breather Tube

$

$

Not available
