HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Gasket Kits Parts Diagram

4x2 Utility Vehicle

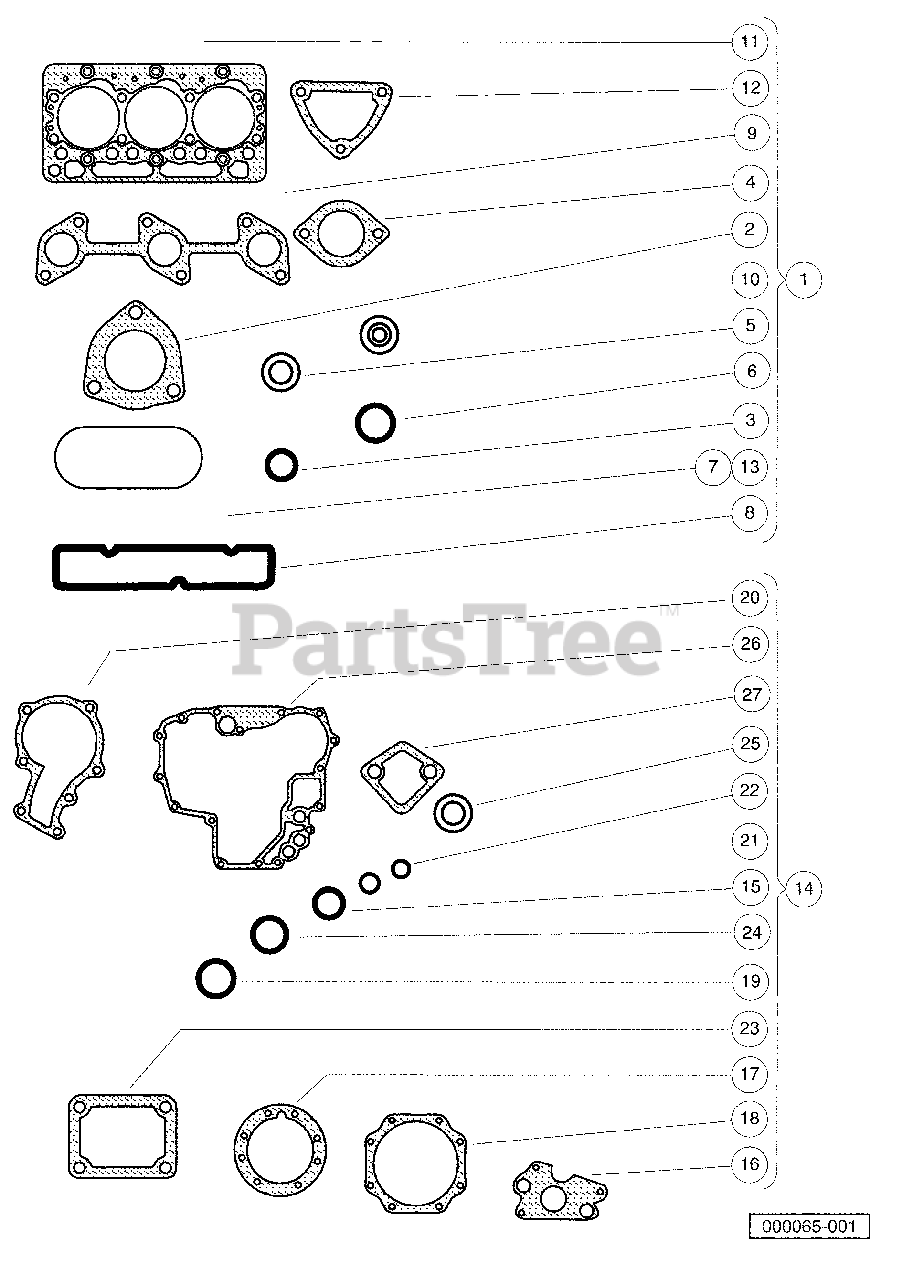

Gasket Kits Parts Diagram

  • Title

1

Husqvarna 603001755

Kit, Gasket Upper, D722

Note: (includes items 2 through 13)

$

$

Not available

2

Husqvarna 603000996

Gasket, Exhaust Diesel

$

$

Not available

3

Husqvarna 603001202

O Ring, 8 X 7

$

$

Not available

4

Husqvarna 603001353

Gasket, Thermostat

$

$

Not available

5

Husqvarna 603001369

Gasket, 6 X 10.

$

$

Not available

6

Husqvarna 603001406

O Ring, 30 X 36

$

$

Not available

7

Husqvarna 603001410

Gasket, Head Cover

$

$

Not available

8

Husqvarna 603001419

Gasket, Intake Manifold

$31.99

$

In Stock, only 1 left!

0

9

Husqvarna 603001424

Gasket, Ex-manifold

$

$

Not available

10

Husqvarna 603001449

Seal, Valve Stem

$

$

Not available

11

Husqvarna 603001455

Gasket, Cylinder Head

$

$

Not available

12

Husqvarna 603001460

Gasket, Water Flange

$

$

Not available

13

Husqvarna 603001823

Gasket, Cylinder Head Cover

$

$

Not available

14

Husqvarna 603001756

Kit, Gasket Lower, D722

Note: (includes items 15 through 27)

$

$

Not available

15

Husqvarna 603001212

O Ring, 18 X 13

$

$

Not available

16

Husqvarna 603001249

Gasket, Oil Pump

$

$

Not available

17

Husqvarna 603001262

Gasket, Bearing Case

$

$

Not available

18

Husqvarna 603001263

Gasket, Cover

$

$

Not available

19

Husqvarna 603001333

O Ring, 23 X 26

$

$

Not available

20

Husqvarna 603001349

Gasket, Water Pump, D722

$

$

Not available

21

Husqvarna 603001358

O Ring, 19 X 16

$

$

Not available

22

Husqvarna 603001362

O Ring, 9 X 7

$

$

Not available

23

Husqvarna 603001363

Gasket, Control Plate

$

$

Not available

24

Husqvarna 603001459

O Ring, 20 X 17

$

$

Not available

25

Husqvarna 603002800

Gasket, Idle Apparatus, Rear

$

$

Not available

26

Husqvarna 603001731

Gasket, Gearcase, D722

$

$

Not available

27

Husqvarna 603001762

Gasket, Fuel Pump, D722

$

$

Not available
