HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Fuel Tank - Gasoline Vehicles Parts Diagram

4x2 Utility Vehicle

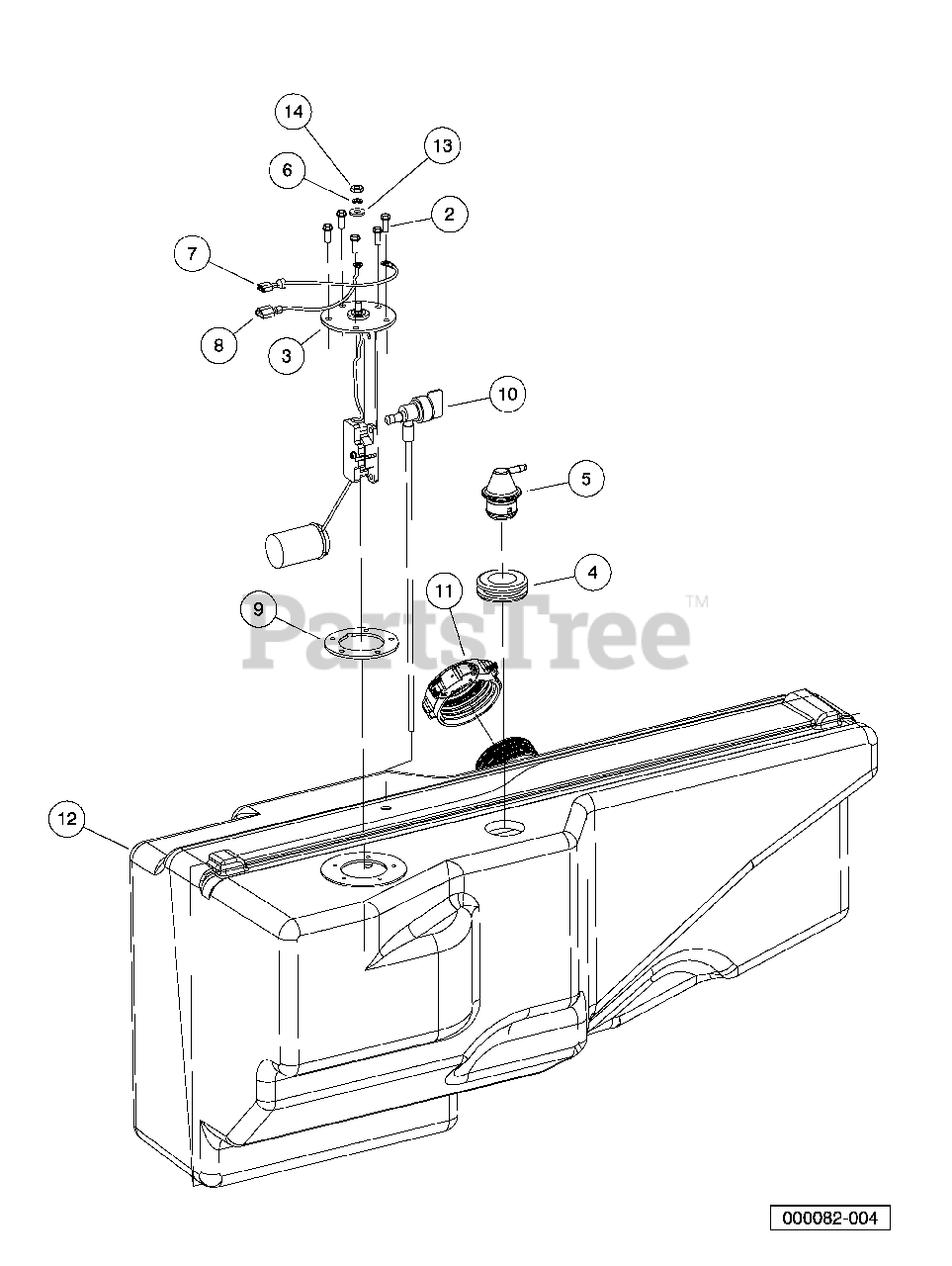

Fuel Tank - Gasoline Vehicles Parts Diagram

  • Title
1

Husqvarna 603000950

Asm, Tank, Fuel, Gas, 4x4

Note: (includes items 2 through 14)

$

$

Not available

2

Husqvarna 603000173

Screw, #10-16 Hex-Head Hi-Lo

$

$

Not available

3

Sending Unit, Fuel Level *

$

$

Not available

4

Husqvarna 603000241

Insulation Grommet

$

$

Not available

5

Husqvarna 603000242

Vent, Fuel Tank
(Superseded to 589258901)

$

$

Not available

6

Husqvarna 603000061

Washer, #10 Split Lock

$

$

Not available

7

Wire Asm, Blk, 170mm

$

$

Not available

8

Wire Asm, Org, 170mm

$

$

Not available

9

Husqvarna 603003057

Gasket, Rubber

$

$

Not available

10

Husqvarna 603001588

Valve, Pickup Tube, Fuel

$

$

Not available

11

Husqvarna 531309543

Cap, Fuel Tank, Gasoline

$

$

Not available

12

Tank, Fuel, Gas, 4x4

$

$

Not available

13

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

14

Husqvarna 603000097

Nut, #10-32 Brass Hex

$

$

Not available
