HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Front Body Components Parts Diagram

4x2 Utility Vehicle

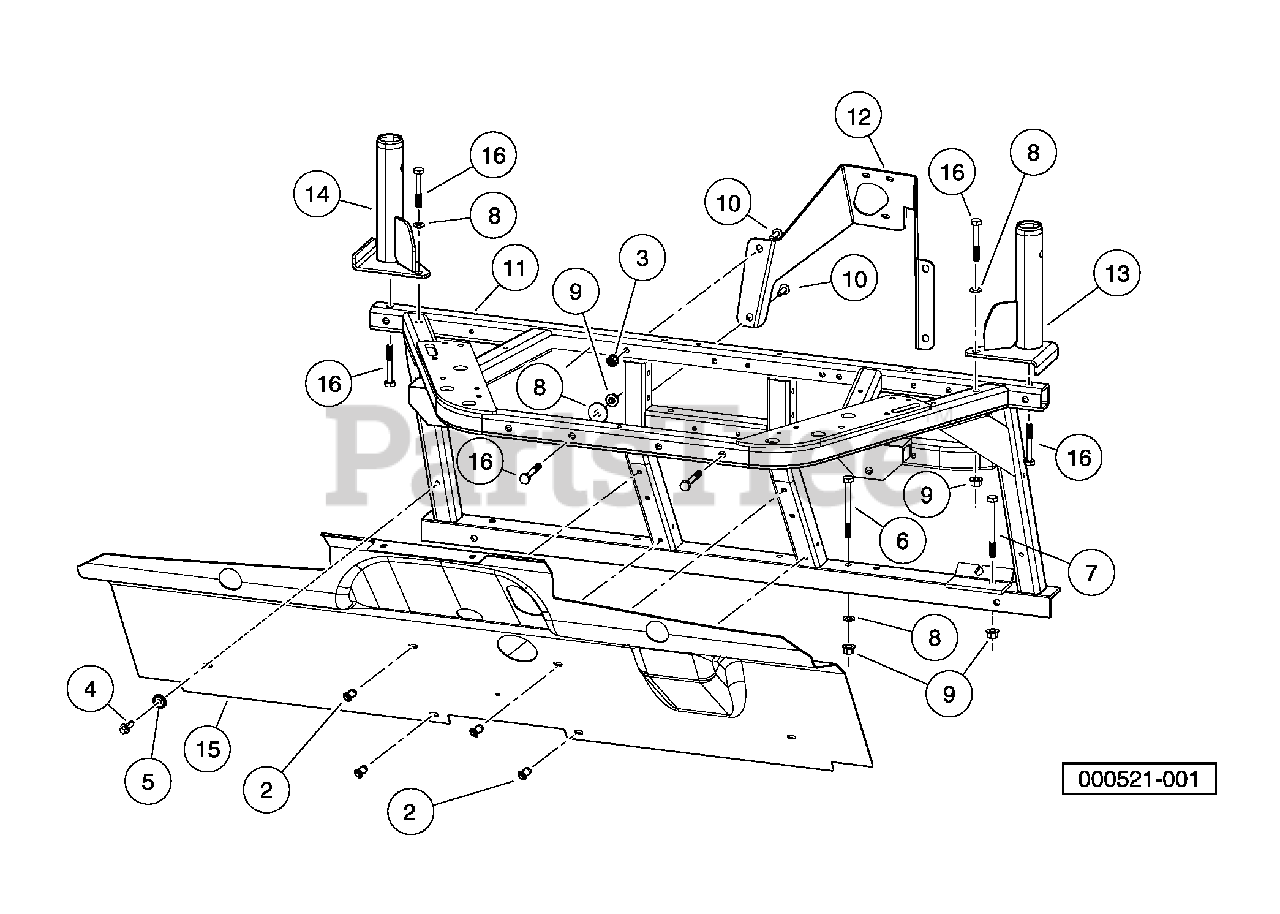

Front Body Components Parts Diagram

  • Title

1

Instl, Cowl Weldmnt/Splash Guard

Note: (includes items 2 through 16)

$

$

Not available

2

Husqvarna 603000379

Blind Rivet, Push Type

$

$

Not available

3

Husqvarna 603001298

Nut,m8,all Metal Lock

$2.49

$

In Stock, Qty 11

0

4

Husqvarna 603003559

M8-1.25x20 Taptite

$

$

Not available

5

Husqvarna 603003522

Washer, Flat, 3/8, Blk Fin

$

$

Not available

6

Husqvarna 603001759

BOLT, M10 X 100, ZN-NI/BLK

Note: (Black)

$

$

Not available

7

Husqvarna 603003432

Bolt, M10 X 1.50 X 110 Black

$

$

Not available

8

Husqvarna 603001174

Washer Hard,m10

$

$

Not available

9

Husqvarna 603001300

Nut Flg M10 X 1.5 Mech Def

$

$

Not available

10

Husqvarna 603001306

Bolt Flanged Head, M8 X 1.25 X 65

$

$

Not available

11

Husqvarna 603003433

Weldment, Dash, Front

$

$

Not available

12

Husqvarna 603003434

Bracket, Column, Steering

$

$

Not available

13

Husqvarna 531308405

Weldment, Front, Base, ROPS, Right-Hand

$

$

Not available

14

Husqvarna 531308404

Weldment, Front, Base, ROPS, Left-Hand

$

$

Not available

15

Husqvarna 603004407

Guard, Splash, Gas Injection

$

$

Not available

16

Husqvarna 603000448

Bolt, M10 X 1.50 X 65

$

$

Not available
