HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Exhaust System Parts Diagram

4x2 Utility Vehicle

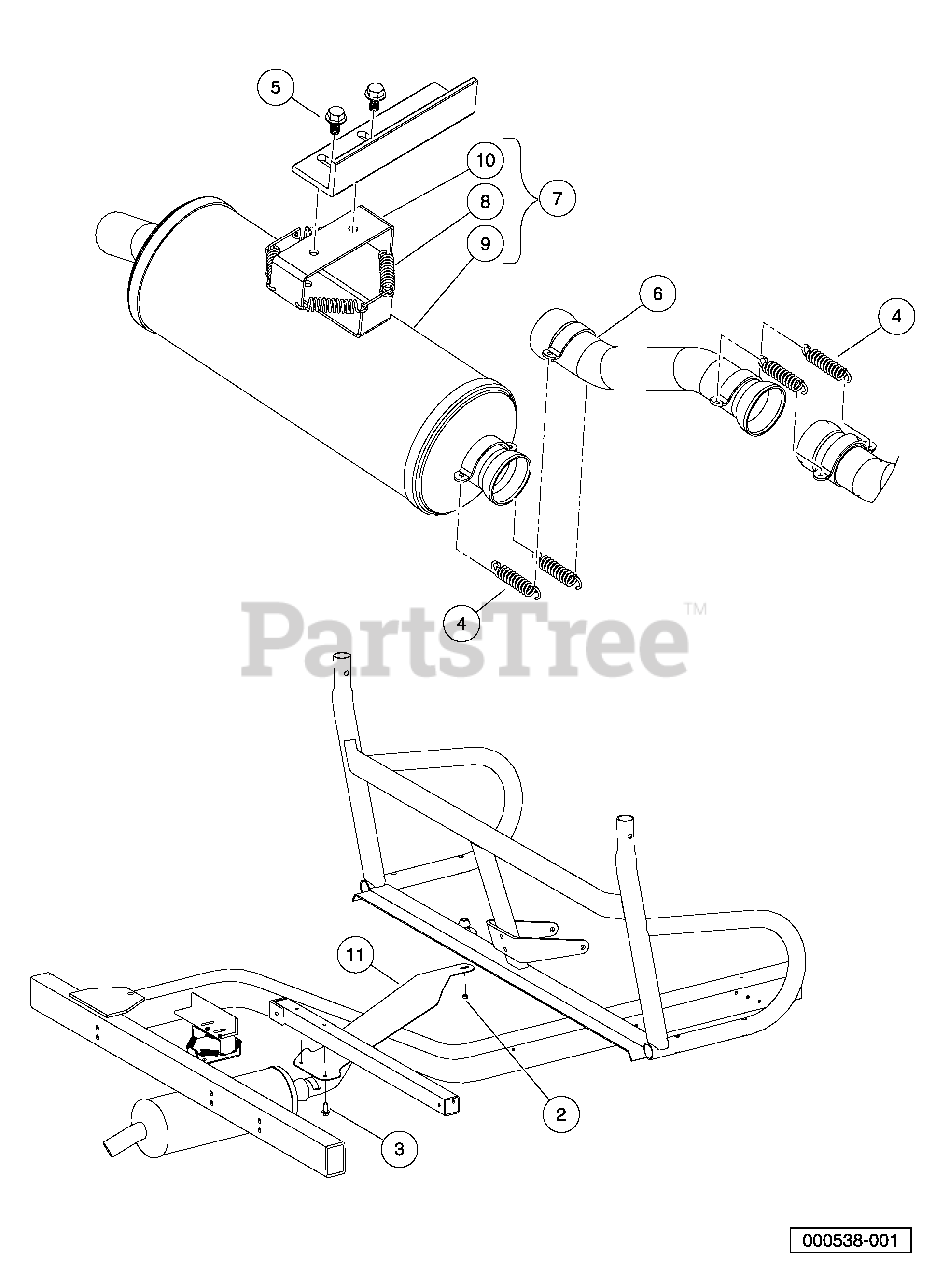

Exhaust System Parts Diagram

  • Title

1

Instl, Exhaust, AWD

Note: (includes items 2 through 11)

$

$

Not available

2

Husqvarna 603000558

Locknut, M6-1.00 Nylon Insert

$

$

Not available

3

Husqvarna 603003559

M8-1.25x20 Taptite

$

$

Not available

4

Husqvarna 603000960

Spring, Exhaust

$

$

Not available

5

Husqvarna 603001315

Bolt Flanged Head, M8 X1.25x 16 with Loctite

$

$

Not available

6

Husqvarna 531308388

Pipe, Exhaust, Int, Offset

$

$

Not available

7

Husqvarna 603002947

Asm, Muffler, AWD Homologation

Note: (includes items 8 through 10)

$

$

Not available

8

Husqvarna 603000960

Spring, Exhaust

$

$

Not available

9

Muffler

$

$

Not available

10

Bracket, Muffler

$

$

Not available

11

Husqvarna 531307135

Shield, Exhaust, Clearance

$

$

Not available
