HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Driven Clutch Parts Diagram

4x2 Utility Vehicle

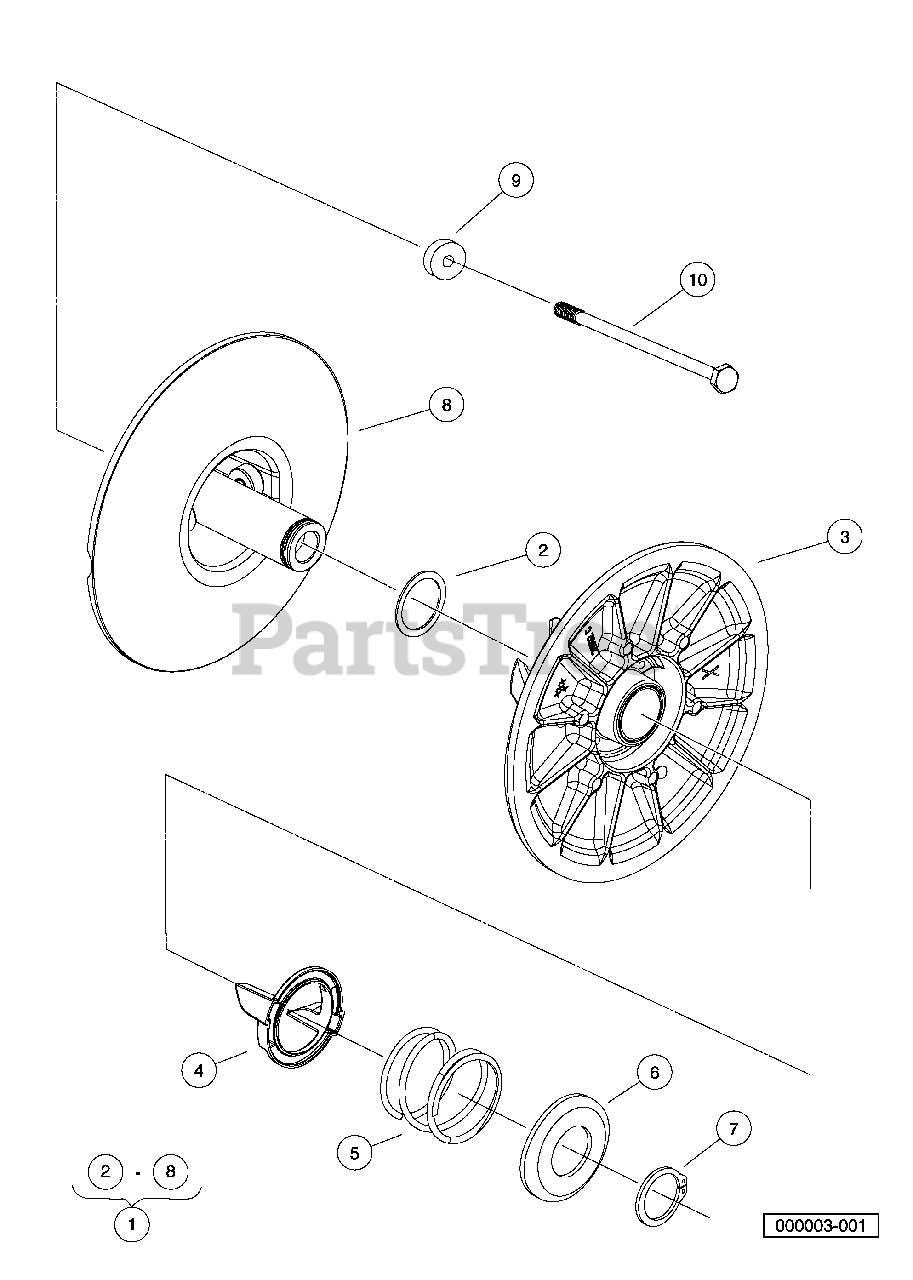

Driven Clutch Parts Diagram

  • Title

1

Husqvarna 603000906

CVT, Secondary

Note: (includes items 2 through 8)

$

$

Not available

2

Husqvarna 603001635

Washer, Thrust, 1.53 X 1.92

$

$

Not available

3

Sheave, Driven Clutch

$

$

Not available

4

Husqvarna 603001636

Retainer, Spring, Inner

$

$

Not available

5

Husqvarna 603001637

Spring, Compression, Secondary

$

$

Not available

6

Husqvarna 603001638

Retainer, Spring, Outer

$

$

Not available

7

Husqvarna 603001639

Ring, Retaining, External

$

$

Not available

8

Driven Clutch Base Sheave

$

$

Not available

9

Husqvarna 603000939

Washer, Stepped

$

$

Not available

10

Husqvarna 603001169

Bolt, M10 X 1.5 X 100 Loctite

$

$

Not available
