HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Cylinder Head and Crankcase Parts Diagram

4x2 Utility Vehicle

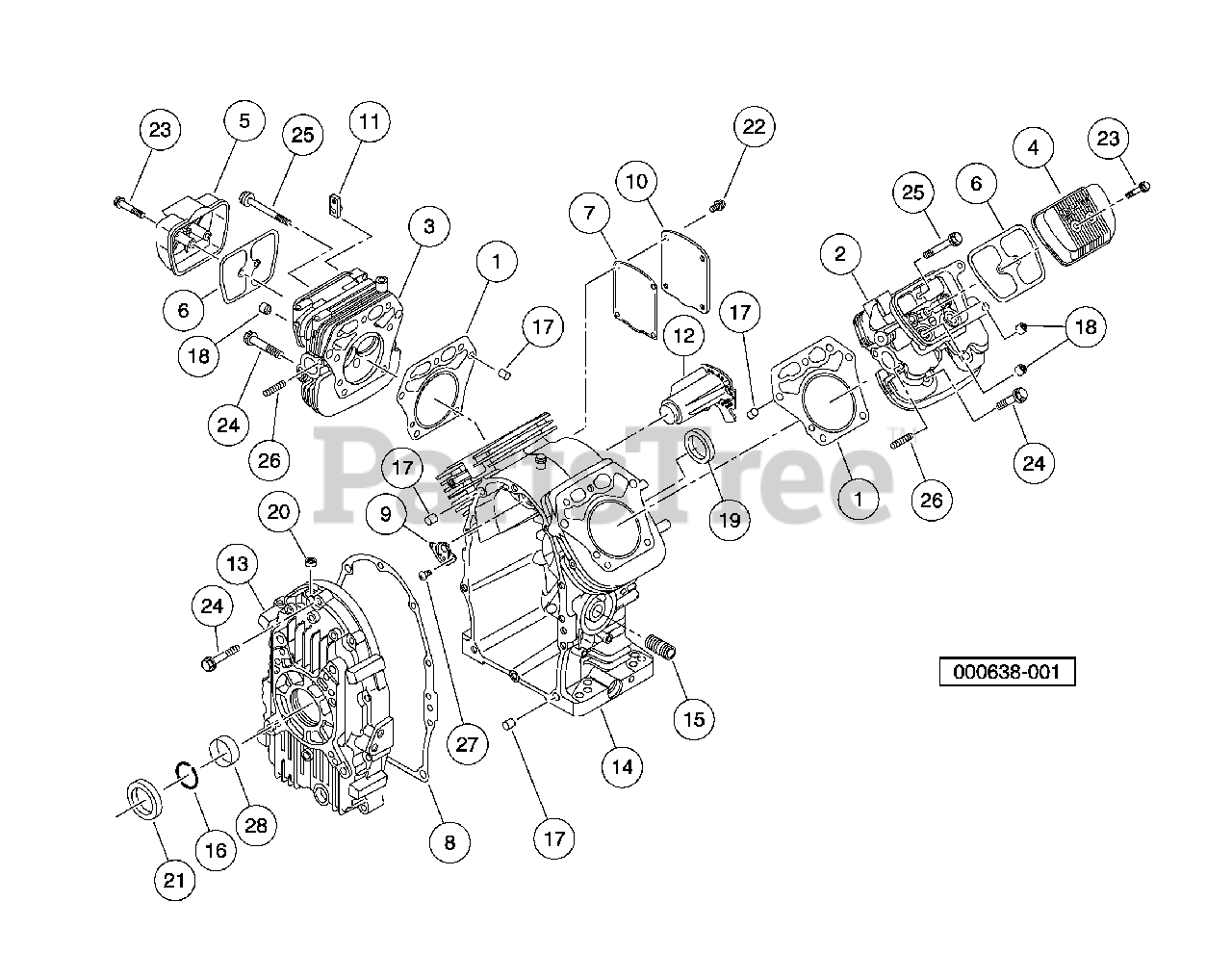

Cylinder Head and Crankcase Parts Diagram

  • Title
1

Husqvarna 603003949

Gasket, Head, Cyl, Fh

$

$

Not available

2

Husqvarna 603003948

Head, Cyld 1, Fh

$

$

Not available

3

Husqvarna 603003947

Head, Cyld 2, Fh

$

$

Not available

4

Husqvarna 603003946

Cover, Rocker, Cyld 1, Fh

$

$

Not available

5

Husqvarna 603003945

Cover, Rocker, Cyld 2, Fh

$

$

Not available

6

Husqvarna 603003944

Gasket, Rocker, Cover, FH

$

$

Not available

7

Husqvarna 603003943

Gasket, Breather, Fh

$

$

Not available

8

Husqvarna 603003942

Gasket, Cover, Crank, Fh

$

$

Not available

9

Husqvarna 603003941

Valve, Assy, Reed, Fh

$

$

Not available

10

Husqvarna 603003940

Cover, Crkcase, Comp, Fh

$

$

Not available

11

Husqvarna 603003939

Pipe, Head, Comp, Clyd, Fh

$

$

Not available

12

Husqvarna 603003938

Pipe, Crkcase, Comp, Fh

$

$

Not available

13

Husqvarna 603003937

Cover, Crankcase, Fh

$

$

Not available

14

Husqvarna 603003936

Crankcase, Comp, Fh

$

$

Not available

15

Husqvarna 603003935

Nipple, Oil Filter, Fh

$

$

Not available

16

Husqvarna 603003934

Ring, Snap, Fh

$

$

Not available

17

Husqvarna 603003933

Pin, Head, Fh.

$

$

Not available

18

Husqvarna 603003932

Seal, Oil, Valve, Fh

$

$

Not available

19

Husqvarna 603003931

Seal, Oil, Crank, Rear, Fh

$

$

Not available

20

Husqvarna 603003930

Seal, Oil, Governor, Fh

$

$

Not available

21

Husqvarna 603003929

Seal, Oil, Crank, Front, Fh

$

$

Not available

22

Husqvarna 603003928

Bolt, Flg, M6 X 1.0 X 12

$

$

Not available

23

Husqvarna 603003926

Bolt, Flg, M6 X 1.0 X 40

$

$

Not available

24

Husqvarna 603003925

Bolt, Flg, M8 X 1.25 X 50

$

$

Not available

25

Husqvarna 603003924

Bolt, Flg, M8 X 1.25 X 75

$

$

Not available

26

Husqvarna 603003923

Stud, M8 X 1.25, Exhaust, Fh

$

$

Not available

27

Husqvarna 603003819

Screw, Pan, Governor, Fh

$

$

Not available

28

Husqvarna 603003818

Bushing, Main, Fh

$

$

Not available
