HUV 4214 - Husqvarna 4x2 Utility Vehicle (2009-05) Carburetor Installation - Kawasaki Gasoline Vehicles Parts Diagram

4x2 Utility Vehicle

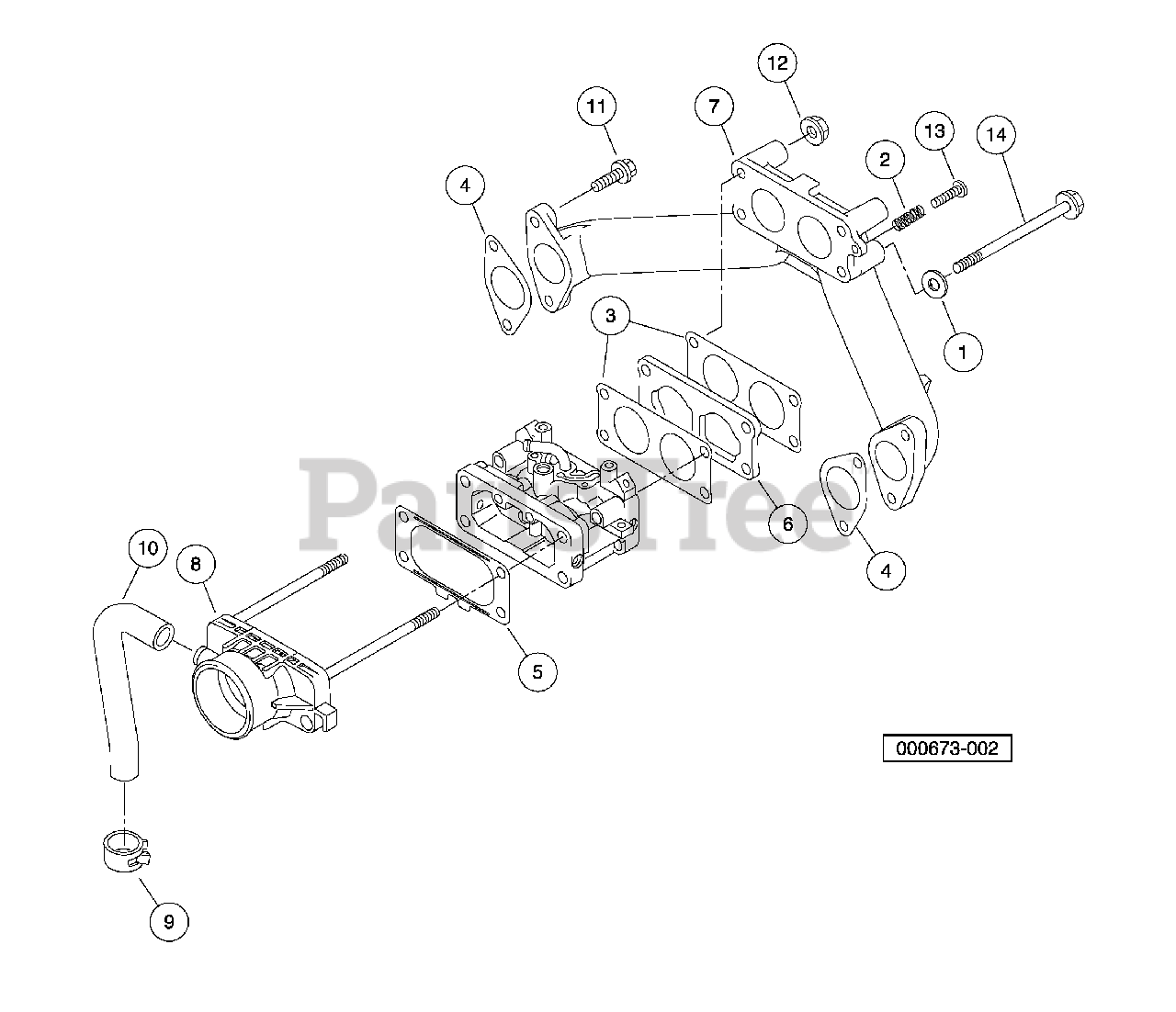

Carburetor Installation - Kawasaki Gasoline Vehicles Parts Diagram

  • Title

1

Husqvarna 603000329

Washer, M6 Flat

$

$

Not available

2

Husqvarna 603003855

Spring, Fh

$

$

Not available

3

Husqvarna 603003853

Gasket, Carburetor, Fh

$

$

Not available

4

Husqvarna 603003852

Gasket, Manifold, Fh

$

$

Not available

5

Husqvarna 603003851

Gasket, Air Filter, Fh

$

$

Not available

6

Husqvarna 603003850

Insulator, Manifold, Fh

$

$

Not available

7

Husqvarna 603003849

Manifold, Intake, Fh

$

$

Not available

8

Husqvarna 603003832

Pipe, Intake Adapter, Fh

$

$

Not available

9

Husqvarna 603003831

Clamp, Crankcase Vent, Fh

$

$

Not available

10

Husqvarna 603003830

Tube, Crankcase Vent, Fh

$

$

Not available

11

Husqvarna 603003820

Bolt, Flanged, M6 X 20, Kaw

$

$

Not available

12

Husqvarna 603003803

Nut, Carburetor, M6

$

$

Not available

13

Husqvarna 603003802

Screw, Carburetor, M4 X 20

$

$

Not available

14

Husqvarna 603003801

Bolt, Flg, Carburetor, M6x105

$

$

Not available
