HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) TILT BED Parts Diagram

4x2 Utility Vehicle

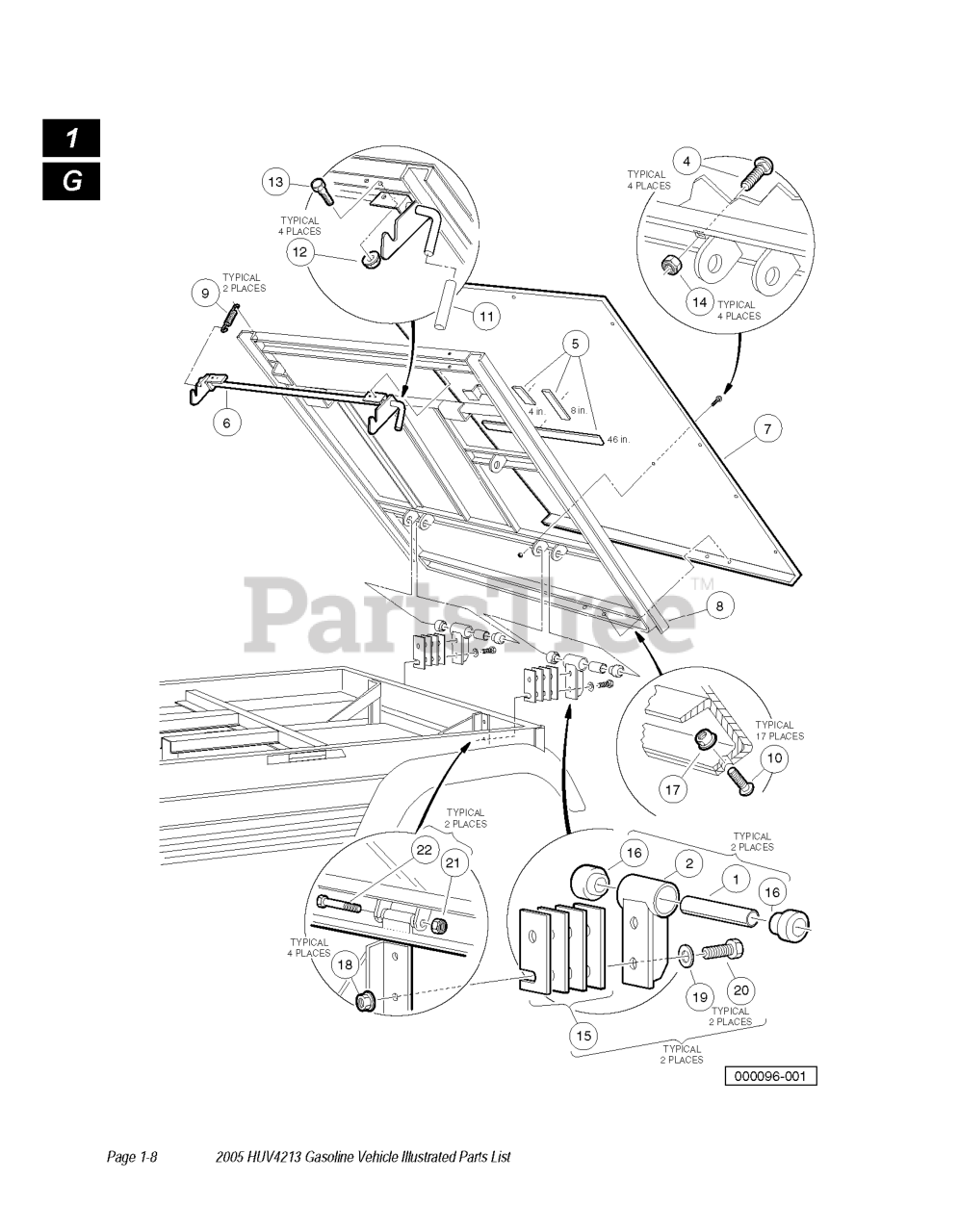

TILT BED Parts Diagram

  • Title

9

Husqvarna 603000254

EXENSION SPRING LATCH CA

$

$

Not available

19

Husqvarna 603000781

WASHER, 3/8 TYPE B HARD FLAT

$

$

Not available

10

Husqvarna 603000255

SCREW, 5/16-18 X .88 TRX TRUSS

$

$

Not available

13

Husqvarna 603000057

SCREW

$

$

Not available

22

Husqvarna 603000096

SCREW, 3/8-16 X 3.375

$

$

Not available

18

Husqvarna 603000780

LOCKNUT, 3/8-16 FLANGED DIMPLE

$

$

Not available

3

Husqvarna 603000460

TILT BED ASM CA II MANUAL LIFT

$

$

Not available

11

Husqvarna 603000256

GRIP, TILT LATCH HAND

$

$

Not available

12

Husqvarna 603000521

LOCKNUT, 1/4-20 HEX WHIZ

$

$

Not available

1

Husqvarna 603000136

BUSHING - STEEL (GAS CAR)

$

$

Not available

4

Husqvarna 603000107

BOLT, 5/16-18 X 1.00 SQ.NECK

$

$

Not available

16

Husqvarna 603000263

BUSHING, URETHANE

$

$

Not available

21

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

6

Husqvarna 603000244

LATCH WELD ASSY CARRYALL

$

$

Not available

2

Husqvarna 603000250

ASM, HINGE-TILT BED

$

$

Not available

15

Husqvarna 603000260

SHIM TILT BED PIVOT

$

$

Not available

5

Husqvarna 603000229

BOX INS.BULK

$

$

Not available

17

Husqvarna 603000616

LOCKNUT, 5/16-18 HEX FLANGE

$

$

Not available

20

Husqvarna 603000059

SCREW

$

$

Not available

14

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available
