HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) STEERING 2 Parts Diagram

4x2 Utility Vehicle

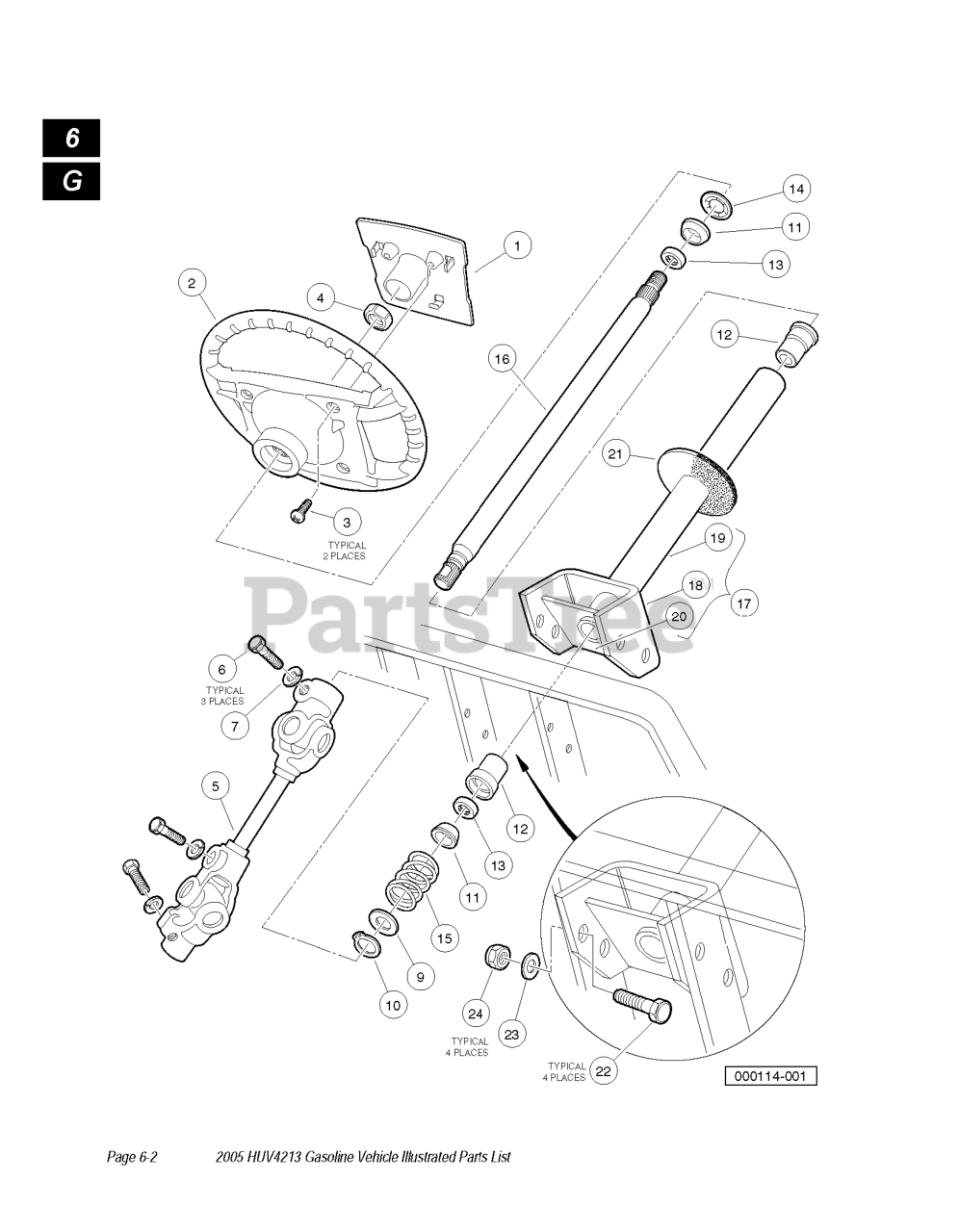

STEERING 2 Parts Diagram

  • Title

1

Husqvarna 603000284

PLATE

$

$

Not available

14

Husqvarna 603000217

RING, RETAINING

$

$

Not available

13

Husqvarna 603000216

BEARING ASSY STEERING SHAFT

$

$

Not available

11

Husqvarna 603000212

WEDGE MOLDED

$

$

Not available

17

Husqvarna 603000639

COLUMN WELD ASSY, STEERING

$

$

Not available

19

Husqvarna 603004417

Steering Column

$

$

Currently unavailable

3

Husqvarna 603000367

SCREW, #12-14 X .625 TYP AB PN

$

$

Not available

16

Husqvarna 603000390

SHAFT STEERING COLUMN

$

$

Not available

12

Husqvarna 603000213

SEAT, PLASTIC BEARING

$

$

Not available

7

Husqvarna 603000072

LOCKWASHER, 5/16 SPLIT

$

$

Not available

18

Husqvarna 603004416

Column Mtg Bracket

$

$

Currently unavailable

6

Husqvarna 603000386

HEX HEAD BOLT, 8MM X 1.25 - 30

$

$

Not available

21

Husqvarna 603000868

BOOT, STEERING COLUMN ROUND

$

$

Not available

24

Husqvarna 603000095

LOCKNUT, 3/8-16 HEX

$

$

Not available

23

Husqvarna 603000055

WASHER, 3/8 FLAT

$

$

Not available

4

Husqvarna 603000389

NUT, 5/8-18 NYLON INSERT JAM

$

$

Not available

5

Husqvarna 603000637

YOKE ASSEMBLY

$

$

Not available

15

Husqvarna 603000218

SPRING, STEERING SHAFT COMP

$

$

Not available

9

Husqvarna 603000147

WASHER

$

$

Not available

2

Husqvarna 603000280

WHEEL ASSY, SPL. HUB STEERING

$

$

Not available

10

Husqvarna 603000148

RING

$

$

Not available

20

Husqvarna 603004417

Steering Column

$

$

Currently unavailable

8

Husqvarna 603000640

STEERING COLUMN

$

$

Not available

22

Husqvarna 603000053

SCREW, CAP, HEX HD 3/8-16X1.00

$

$

Not available
