HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) SHIFTER ASSEMBLY Parts Diagram

4x2 Utility Vehicle

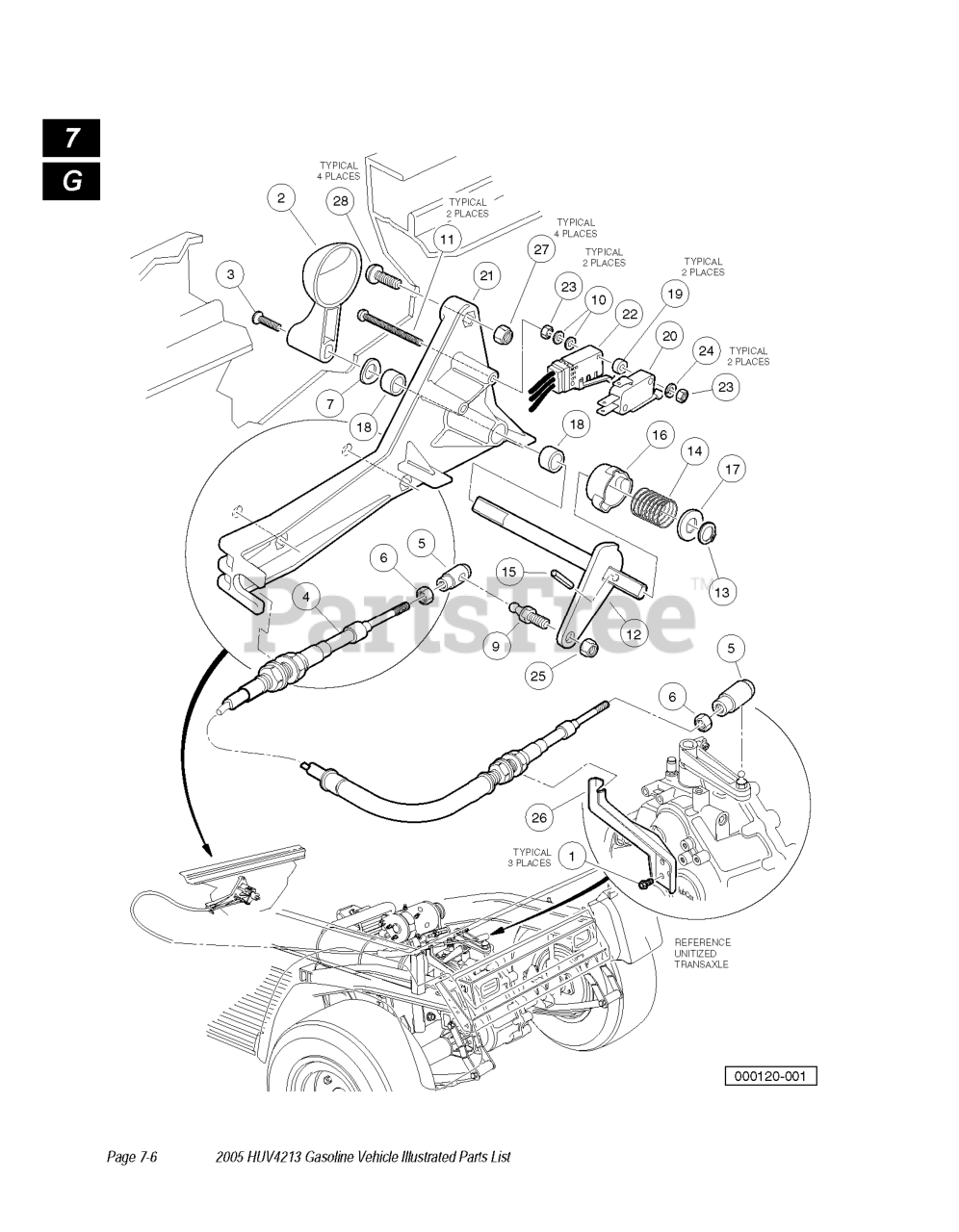

SHIFTER ASSEMBLY Parts Diagram

  • Title

2

Husqvarna 603000162

HANDLE, FNR SWITCH

$

$

Not available

22

Husqvarna 603000621

SWITCH ASSY, SEALED LIMITER

$

$

Not available

20

Husqvarna 603000235

SWITCH, LIMIT

$

$

Not available

8

Husqvarna 603000378

F & R SHIFTER ASSEMBLY

$

$

Not available

3

Husqvarna 603000239

SCREW

$

$

Not available

18

Husqvarna 603000215

BUSHING, SECONDARY WGHT SPLIT

$

$

Not available

21

Husqvarna 603000289

SHIFTER BASE

$22.99

$

In Stock, only 1 left!

0

6

Husqvarna 603000084

NUT, #10-32 HEX

$

$

Not available

17

Husqvarna 603000204

WASHER

$

$

Not available

23

Husqvarna 603000086

NUT HEX MACHINE

$

$

Not available

1

Husqvarna 603000134

SCREW HX TYP TT

$

$

Not available

7

Husqvarna 603000282

WASHER, WAVE

$

$

Not available

11

Husqvarna 603000146

SCREW

$

$

Not available

26

Husqvarna 603003233

SHIFTER BRACKET

$

$

Not available

14

Husqvarna 603000178

SPRING, FNR CAM

$

$

Not available

24

Husqvarna 603000087

LOCKWASH, # 4 HELICAL SPLIT

$

$

Not available

12

Husqvarna 603000176

F&R BELL CRANK WELDMENT

$

$

Not available

10

Husqvarna 603000140

WASHER

$

$

Not available

16

Husqvarna 603000209

NEUTRAL LOCKOUT CAM KIT

$

$

Not available

5

Husqvarna 603000137

JOINT, #10-32 BALL

$

$

Not available

4

Husqvarna 603000258

TRAN'S SHIFT CABLE ASM CA II

$

$

Not available

15

Husqvarna 603000179

PIN

$

$

Not available

28

Husqvarna 603000090

SCREW 1/4-20 X .75

$

$

Not available

9

Husqvarna 603000117

STUD

$

$

Not available

25

Husqvarna 603000094

LOCKNUT, 1/4-28 NYLON INSERT

$

$

Not available

27

Husqvarna 603000089

LOCKNUT, 1/4-20 NYLON INSERT

$

$

Not available

13

Husqvarna 603000177

RING

$

$

Not available

19

Husqvarna 603000234

WASHER

$

$

Not available
