HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) PEDALS Parts Diagram

4x2 Utility Vehicle

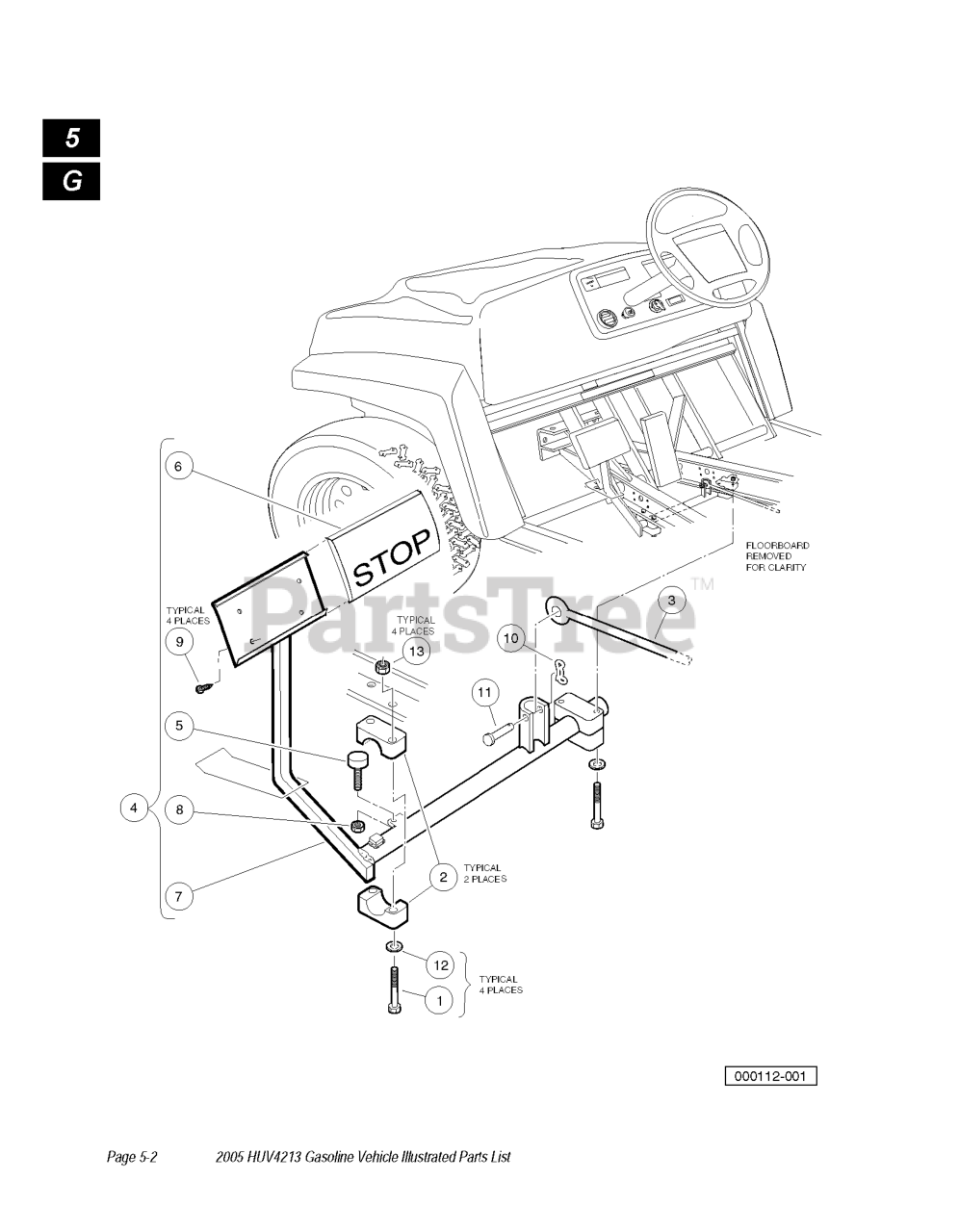

PEDALS Parts Diagram

  • Title
12

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

4

Husqvarna 603000704

BRAKE PEDAL ASM HYD

$

$

Not available

10

Husqvarna 603000872

PIN, BOW TIE LOCKING - .072

$

$

Not available

2

Husqvarna 603000121

PACKAGE, BRAKE MOUNTING BLOCK

$

$

Not available

1

Husqvarna 603000115

SCREW HEX CAP

$

$

Not available

8

Husqvarna 603000062

NUT, 1/4-20 HEX

$

$

Not available

3

Husqvarna 603000610

EQUALIZER ROD

$

$

Not available

13

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

9

Husqvarna 603000081

SCREW TYPE AB SHT MTL

$

$

Not available

7

Husqvarna 603004415

Brake Pedal Weld Asm

$

$

Currently unavailable

6

Husqvarna 603000703

PAD, HYDRAULIC BRAKE PEDAL

$

$

Not available

11

Husqvarna 603002601

PIN, 3/8 X 1-5/16 CLEVIS

$

$

Not available

5

Husqvarna 603000113

BUMPER, BRAKE PEDAL RUBBER

$

$

Not available
