HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) MASTER CYLINDER Parts Diagram

4x2 Utility Vehicle

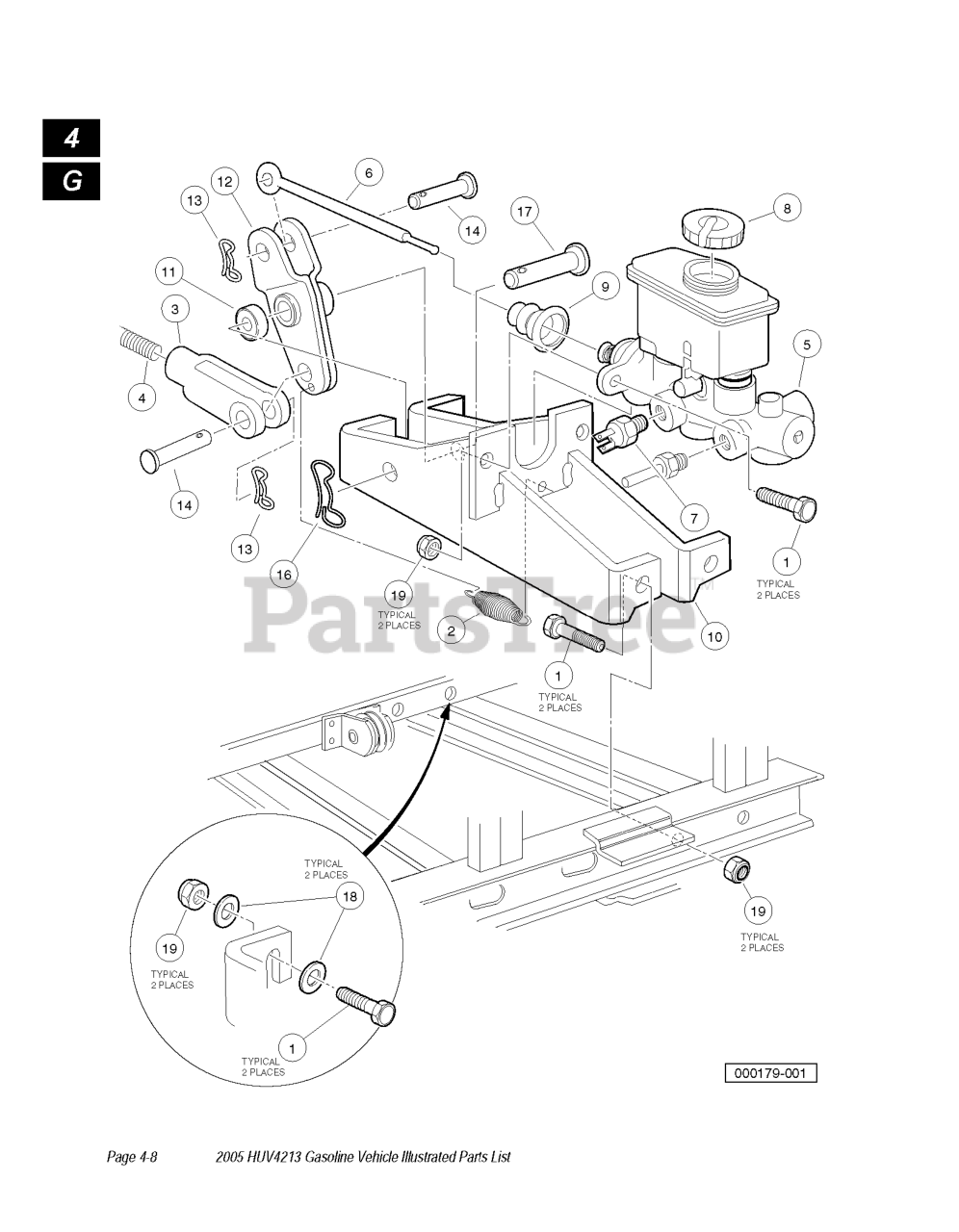

MASTER CYLINDER Parts Diagram

  • Title
16

Husqvarna 603001195

PIN, BOW TIE .120X2.750

$

$

Not available

19

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

1

Husqvarna 603000116

SCREW HEX CAP

$

$

Not available

17

Husqvarna 603001196

PIN, 1/2X2-1/2 CLEVIS

$

$

Not available

13

Husqvarna 603000882

PIN, BOW TIE LOCKING

$

$

Not available

$

$

Not available

$

$

Not available

8

Husqvarna 603000759

FILLER CAP ASM

$

$

Not available

$

$

Not available

6

$

$

Not available

10

Husqvarna 603000767

SUPPORT LEG BRACE ASM

$

$

Not available

18

Husqvarna 603000065

WASHER, 5/16 TYPE A FLAT

$

$

Not available

2

Husqvarna 603000175

SPRING, BRAKE RETURN

$

$

Not available

7

Husqvarna 603000758

PRESSURE SWITCH

$

$

Not available

12

Husqvarna 603000880

BELL CRANK

$

$

Not available

5

Husqvarna 603000717

MASTER CYLINDER

$

$

Not available

4

Husqvarna 603000610

EQUALIZER ROD

$

$

Not available

15

Husqvarna 603000888

PLUG, 3/8 X 24

$

$

Not available

14

Husqvarna 603002601

PIN, 3/8 X 1-5/16 CLEVIS

$

$

Not available
