HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) FUEL TANK Parts Diagram

4x2 Utility Vehicle

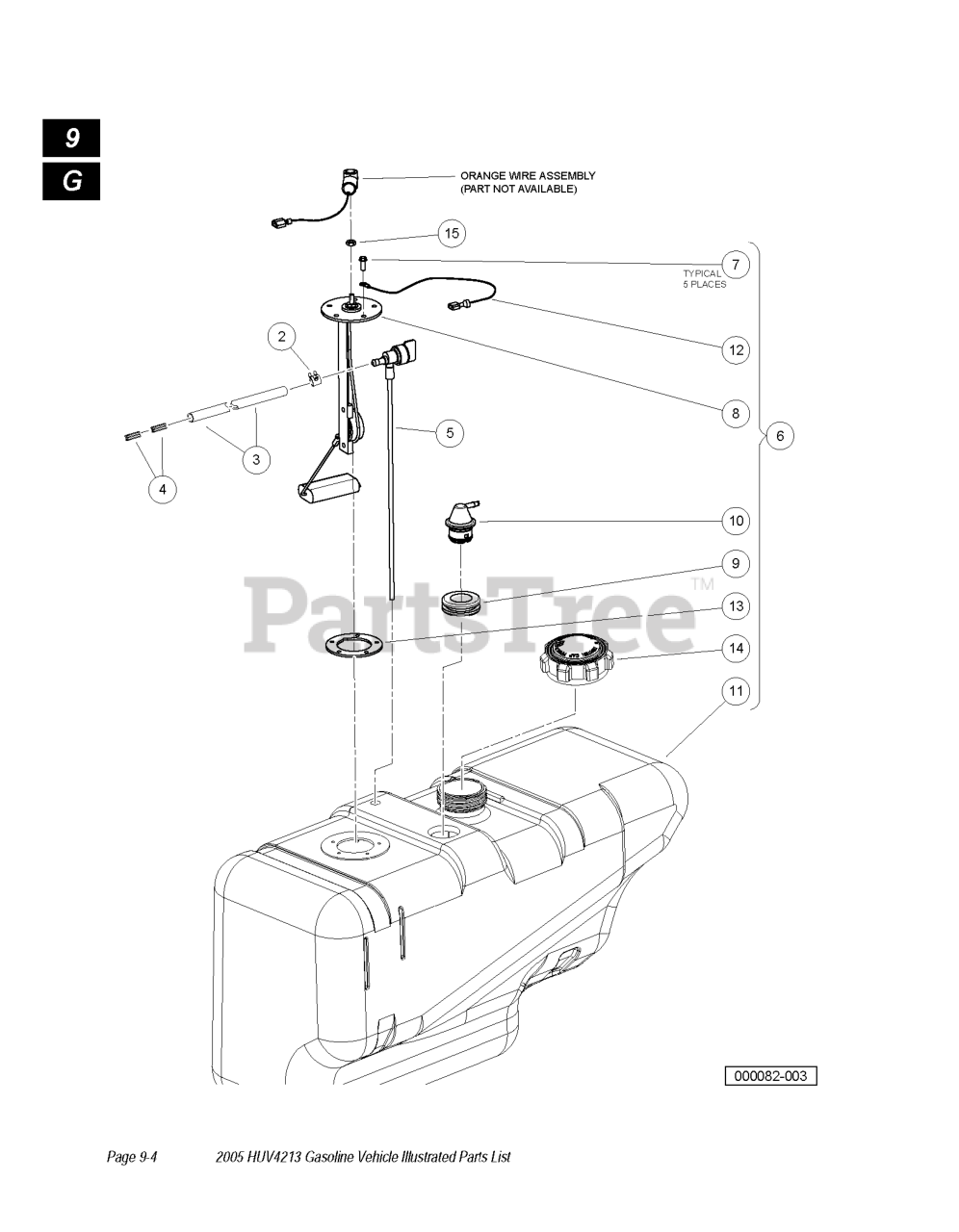

FUEL TANK Parts Diagram

  • Title
14

Husqvarna 531309543

CAP, FUEL TANK - GASOLINE

$

$

Not available

$

$

Not available

10

Husqvarna 603000242

FUEL TANK VENT ASSY
(Superseded to 589258901)

$

$

Not available

15

Husqvarna 603000097

NUT, #10-32 BRASS HEX

$

$

Not available

12

NEEDS DESCRIPTION

Note: BLACK

$

$

Not available

13

Husqvarna 603003057

GASKET, SEND UNIT (RUBBER)

$

$

Not available

5

Husqvarna 603000575

FUEL PICKUP W/ SHUTOFF

$

$

Not available

$

$

Not available

1

Husqvarna 603000275

TANK KIT W/ SENDING UNIT

$

$

Not available

4

$

$

Not available

9

Husqvarna 603000241

INSULATION GROMMET

$

$

Not available

3

Husqvarna 603000240

FUEL LINE

Note: AVAILABLE BY THE FOOT

$

$

Not available
