HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) FRONT SEAT Parts Diagram

4x2 Utility Vehicle

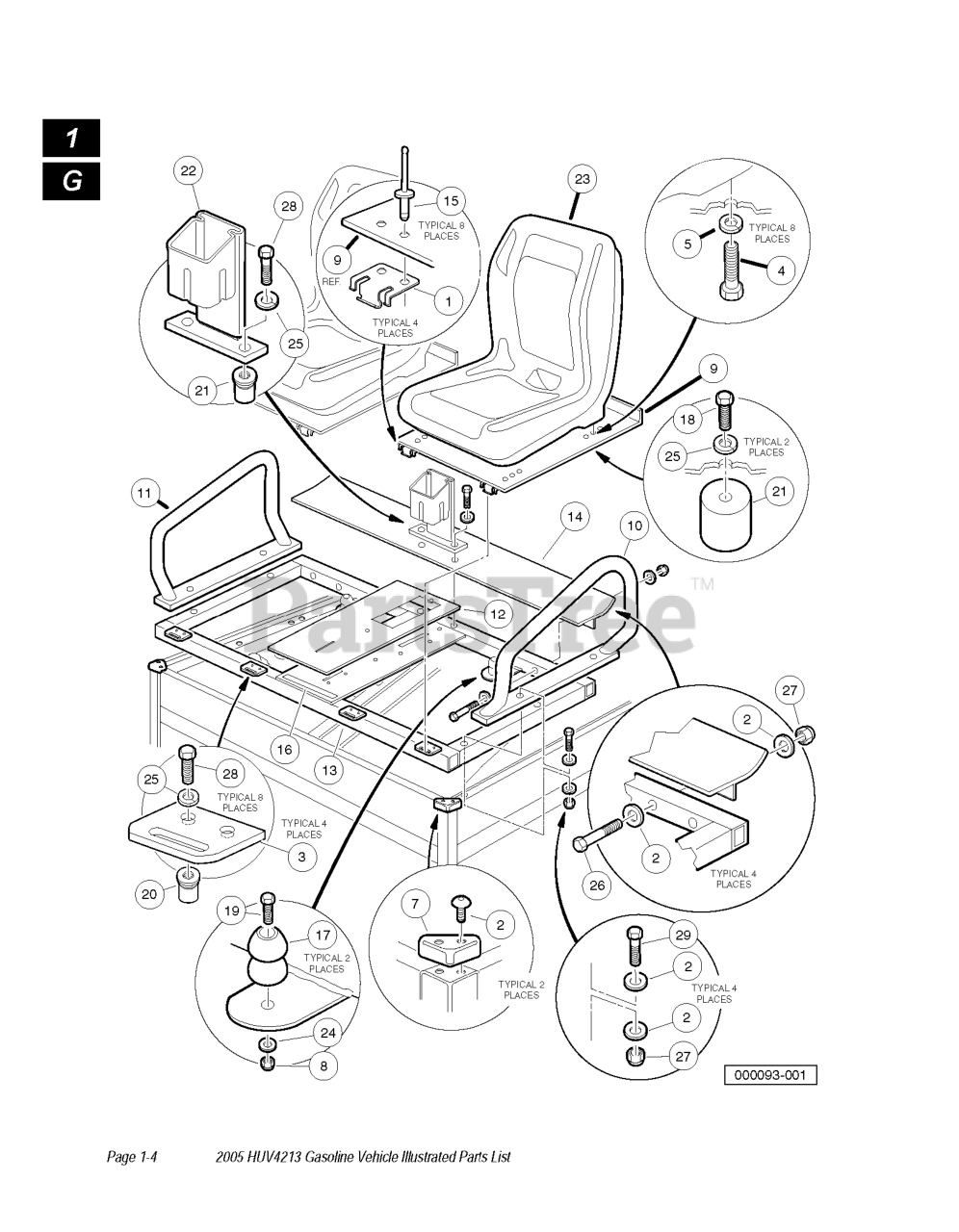

FRONT SEAT Parts Diagram

  • Title

3

Husqvarna 603000139

BODY, HINGE PLATE

$

$

Not available

17

Husqvarna 603000773

SEAT HOLDER BASE

$

$

Not available

7

Husqvarna 603000225

CORNER CAP CAI

$

$

Not available

20

Husqvarna 603000776

THREADED INSERT

$

$

Not available

23

Husqvarna 603004079

SEAT, BUCKET, GRAY

$433.99

$

In Stock, only 1 left!

0

1

Husqvarna 603000125

HINGE PLATE

$

$

Not available

24

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

12

Husqvarna 603000698

CONSOLE COVER

$

$

Not available

13

Husqvarna 603000700

ASM, SEAT SUPPORT - COYOTE STR

$

$

Not available

15

Husqvarna 603000736

RIVET, 1/4 X .438 BLIND

$

$

Not available

29

Husqvarna 603000098

SCREW, 5/16-18 X 2.25

$

$

Not available

2

Husqvarna 603000127

WASHER, 5/16 FLAT

$

$

Not available

6

Husqvarna 603000223

SCREW

$

$

Not available

8

Husqvarna 603000558

LOCKNUT, M6-1.00 NYLON INSERT

$

$

Not available

26

Husqvarna 603000074

SCREW, 1/4-20 X 2.00 HX HD CAP

$

$

Not available

28

Husqvarna 603000083

SCREW, 1/4-20 X .75 HEX

$

$

Not available

10

Husqvarna 603000690

ARMREST DRIVER

$

$

Not available

9

Husqvarna 603000688

PAN, SEAT

$

$

Not available

22

Husqvarna 603000785

RADIO/BEVERAGE HOLDER ASM

$

$

Not available

11

Husqvarna 603000691

ARMREST PASSENGER

$

$

Not available

18

Husqvarna 603000774

SCREW, 6M-1.00 X 10MM HEX HEAD

$

$

Not available

5

Husqvarna 603000184

LOCKWASH

$

$

Not available

21

Husqvarna 603000777

SEAT HOLDER CUP

$

$

Not available

4

Husqvarna 603000579

SCREW, M8-125 X 22 HEX GR.8.8

$

$

Not available

25

Husqvarna 603000058

LOCKWASHER, 1/4 HELICAL SPLIT

$

$

Not available

14

Husqvarna 603000706

BED SEAL

$

$

Not available

27

Husqvarna 603000078

LOCKNUT, 5/16-18 NYLON INSERT

$

$

Not available

19

Husqvarna 603000775

SCREW, 6M-1.00 X 35MM HEX HEAD

$

$

Not available
