HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) FRONT BRAKE Parts Diagram

4x2 Utility Vehicle

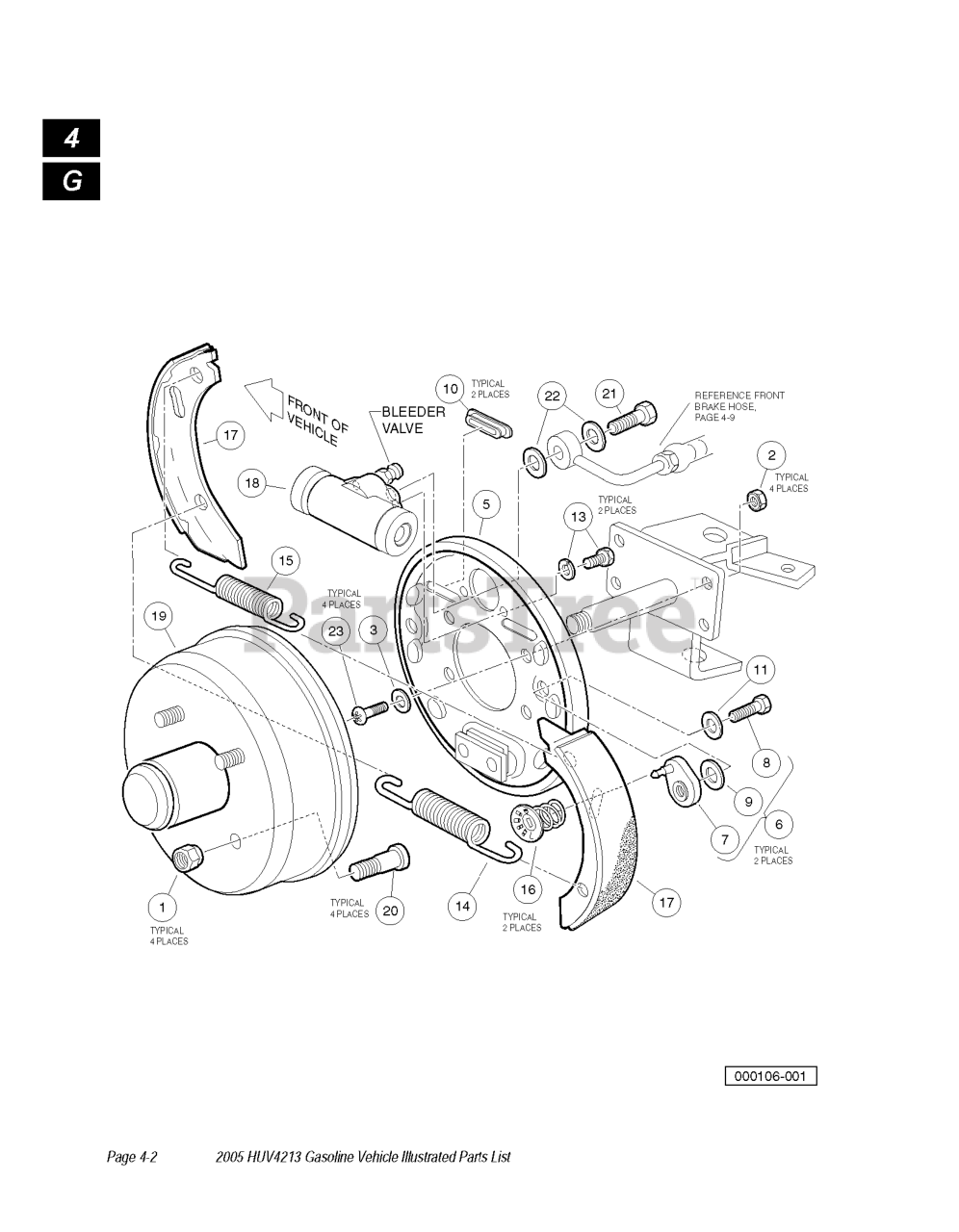

FRONT BRAKE Parts Diagram

  • Title

20

Husqvarna 603000189

LUG STUD

$

$

Not available

5

Husqvarna 603000739

BACKING PLATE ASM

$

$

Not available

4

Husqvarna 603000718

FRONT BRAKE CLUSTER HYD

$

$

Not available

1

Husqvarna 603000024

NUT 1/2-20 LUG

$

$

Not available

8

Husqvarna 603000743

BOLT, 1/4-28 UNF X .31 LG

$

$

Not available

19

Husqvarna 603000724

FRONT HUB

$

$

Not available

3

Husqvarna 603000388

WASHER, 5/16 HARDENED

$

$

Not available

12

Husqvarna 603000742

HARDWARE KIT - AXLE

$

$

Not available

21

Husqvarna 603000725

BANJO BOLT

$

$

Not available

6

Husqvarna 603000741

ADJUSTER KIT AXLE

$

$

Not available

18

Husqvarna 603000747

WHEEL CYCL ASM .625 DIA

$

$

Not available

17

Husqvarna 603000746

SHOE KIT - AXLE SET

$

$

Not available

22

Husqvarna 603000730

COPPER WASHER

$

$

Not available

23

Husqvarna 603000755

SCREW, 5/16-24 X 1.0 TORX HD

$

$

Not available

2

Husqvarna 603000193

NUT

$

$

Not available

15

Husqvarna 603000750

SPRING, SHOE TO SHOE UPPER

$

$

Not available

16

Husqvarna 603000751

SHOE HOLD DOWN

$

$

Not available

9

Husqvarna 603000744

WASHER

$

$

Not available

13

Husqvarna 603000748

BOLT, WHL CYL-M6 X 1 SELF LOCK

$

$

Not available

7

Husqvarna 603000740

ADJUSTER

$

$

Not available

10

Husqvarna 603000745

DUST COVER

$

$

Not available

14

Husqvarna 603000749

SPRING, SHOE TO SHOE - LOWER

$

$

Not available
