HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) ENGINE PLATE Parts Diagram

4x2 Utility Vehicle

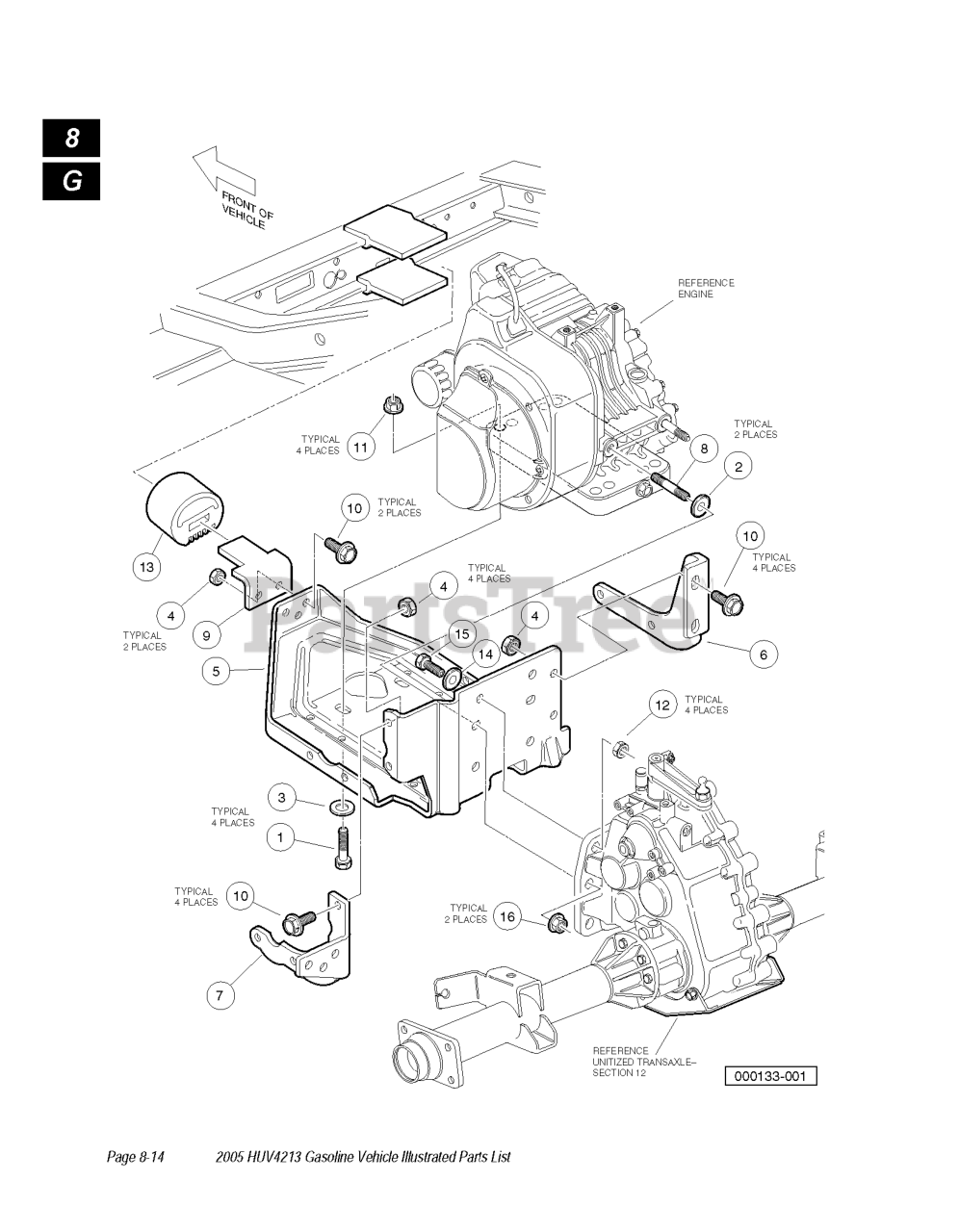

ENGINE PLATE Parts Diagram

  • Title

3

Husqvarna 603000145

WASHER

$

$

Not available

9

Husqvarna 603000519

SNUBBER BRACKET

$

$

Not available

7

Husqvarna 603000511

STIFFENER, FLYWHEEL SIDE

Note: FLYWHEEL SIDE

$

$

Not available

10

Husqvarna 603000556

SCREW, 5/16-24 X .875 GR8 FLNG

$

$

Not available

13

Husqvarna 603000133

INNER FRAME SNUBBER

$

$

Not available

1

Husqvarna 603000111

BOLT HEX HEAD

$

$

Not available

6

Husqvarna 603000510

PTO SIDE STIFFENER

Note: PTO SIDE

$

$

Not available

5

Husqvarna 603000505

PLATE, ENGINE MOUNTING

$

$

Not available

11

Husqvarna 603000616

LOCKNUT, 5/16-18 HEX FLANGE

$

$

Not available

2

Husqvarna 603000127

WASHER, 5/16 FLAT

$

$

Not available

4

Husqvarna 603000193

NUT

$

$

Not available

12

Husqvarna 603000780

LOCKNUT, 3/8-16 FLANGED DIMPLE

$

$

Not available

15

Husqvarna 603000059

SCREW

$

$

Not available

14

Husqvarna 603000055

WASHER, 3/8 FLAT

$

$

Not available

16

Husqvarna 603000512

NUT, M8-1.25 FLANGED HEX

$

$

Not available

8

Husqvarna 603000513

STUD, M8-1.25 X 50MM 2-ENDED

$

$

Not available
