HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) ELECTRICAL 3 Parts Diagram

4x2 Utility Vehicle

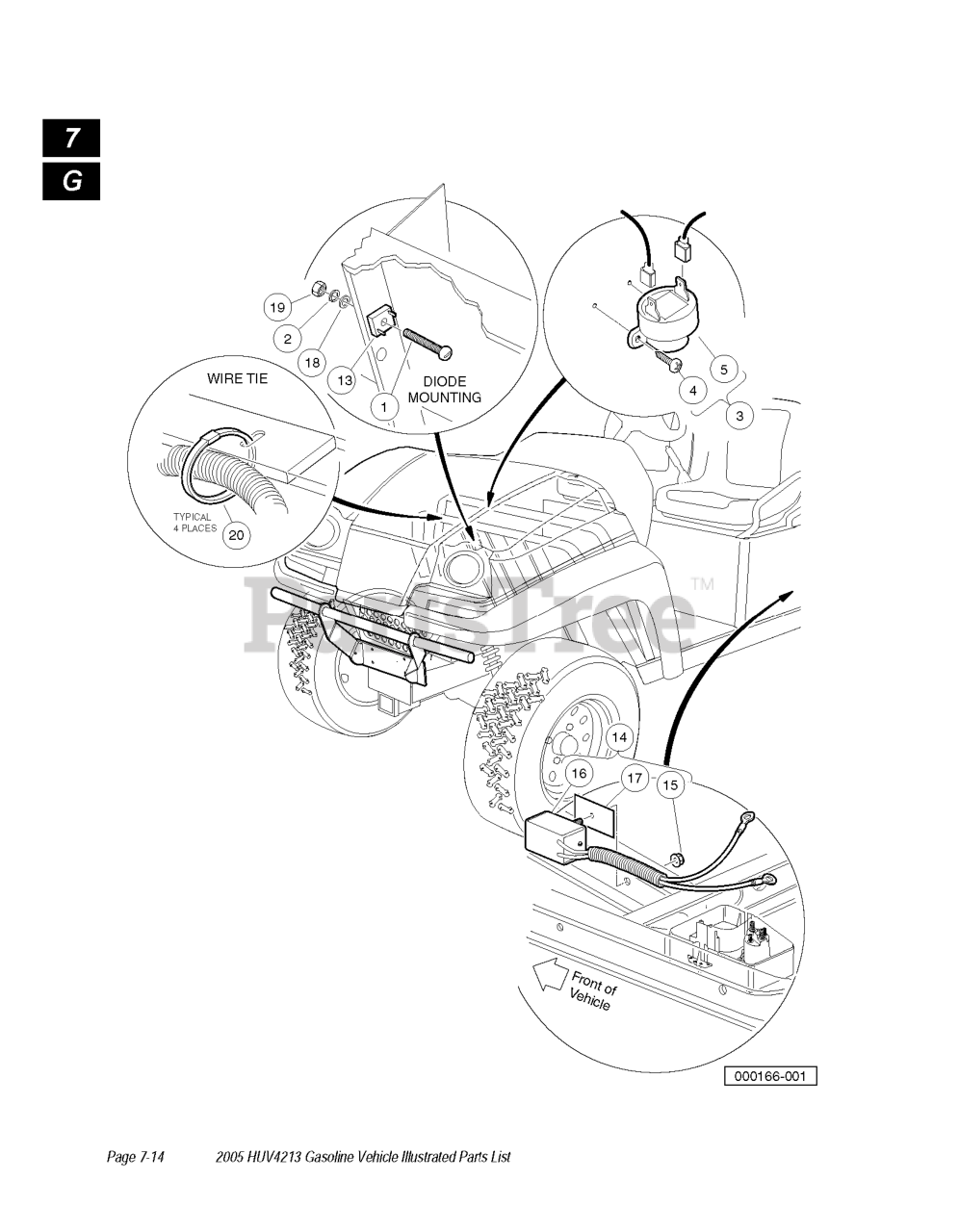

ELECTRICAL 3 Parts Diagram

  • Title

6

Husqvarna 603002086

SCREW #6-32X1/2HX WASH HEAD

$

$

Not available

5

Husqvarna 603000140

WASHER

$

$

Not available

2

Husqvarna 603000061

WASHER,#10 SPLIT WASH

$

$

Not available

10

Husqvarna 603002349

SCREW, #4-40 X .75 RD HD MACH

$

$

Not available

15

Husqvarna 603000616

LOCKNUT, 5/16-18 HEX FLANGE

$

$

Not available

4

Husqvarna 603002034

LOCKNUT, #6-32 WHIZ

$

$

Not available

13

Husqvarna 603000433

LIMITER, VOLTAGE

$

$

Not available

1

Husqvarna 603000114

SCREW HD MCH

$

$

Not available

3

Husqvarna 603000372

KIT, REVERSE BUZZER

$

$

Not available

8

Husqvarna 603000371

BUZZER, 9-48 VDC REVERSE

$

$

Not available

14

Husqvarna 603000865

KIT, DIODE

$

$

Not available

20

Husqvarna 603000093

TIE WRAP , 11" NYLON

$

$

Not available

19

Husqvarna 603000084

NUT, #10-32 HEX

$

$

Not available

11

Husqvarna 603000086

NUT HEX MACHINE

$

$

Not available

17

Husqvarna 603000845

THERMAL, PAD

$

$

Not available

12

Husqvarna 603000087

LOCKWASH, # 4 HELICAL SPLIT

$

$

Not available

7

Husqvarna 603000370

SCREW, #4-24 X .33 PN HD MACH

$

$

Not available

18

Husqvarna 603000051

WASHER FLAT

$

$

Not available

16

Husqvarna 603000826

DIODE ASSY

$

$

Not available
