HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) DIFFERENTIAL Parts Diagram

4x2 Utility Vehicle

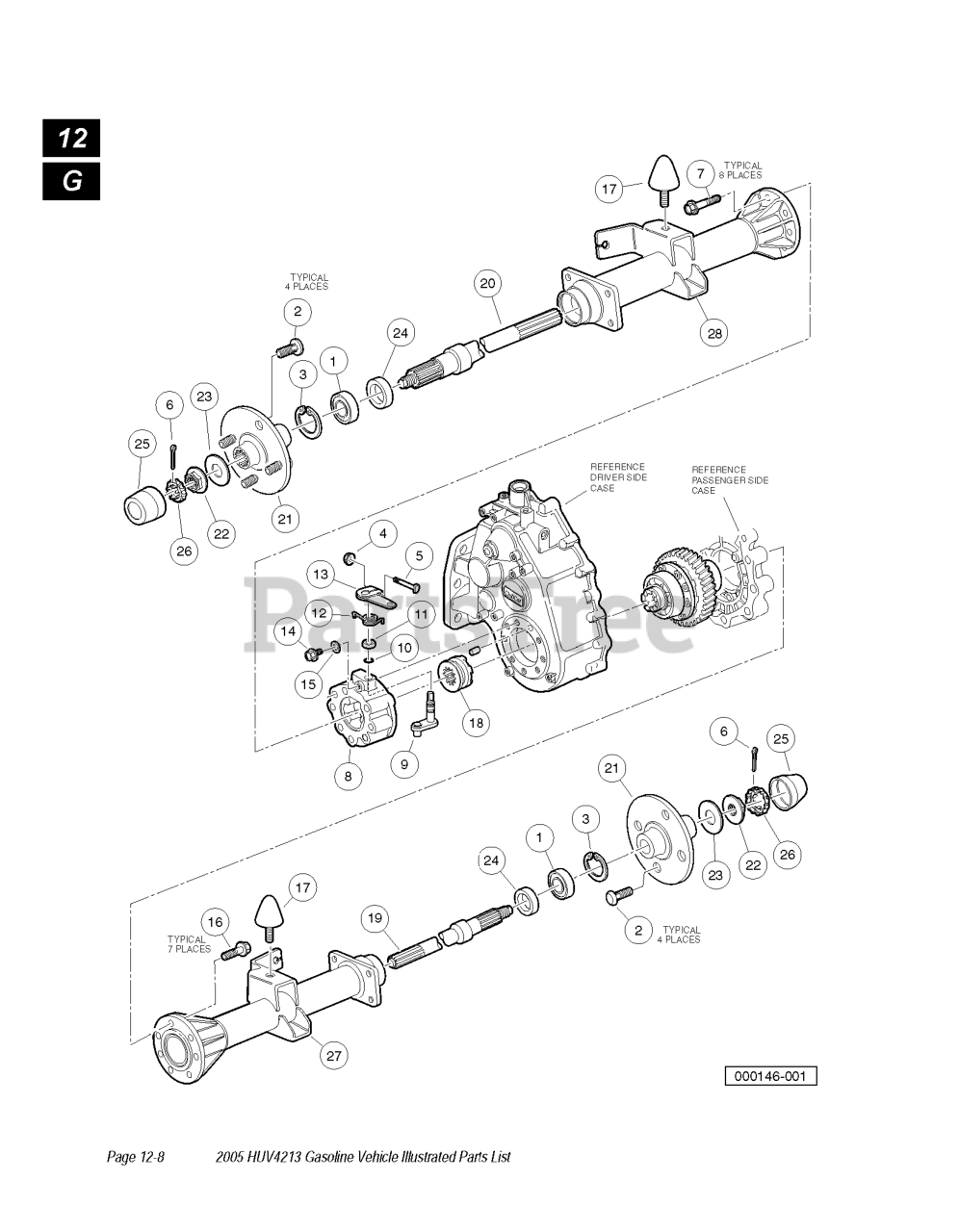

DIFFERENTIAL Parts Diagram

  • Title

21

Husqvarna 603000841

WHEEL BOLT FLANGE

$

$

Not available

28

Husqvarna 603001081

AXLE TUBE, HD, LH

Note: LH

$

$

Not available

11

Husqvarna 603000661

SPACER, DIFFERENTAL LOCK

$

$

Not available

1

Husqvarna 603000120

OUTER AXLE, TUBE BEARING

$

$

Not available

19

Husqvarna 603000839

AXLE SHAFT - RH

Note: TH

$

$

Not available

26

Husqvarna 603000867

LOCKING CAP, NUT

$

$

Not available

25

Husqvarna 603000866

CENTER CAP, RUBBER

Note: RUBBER

$

$

Not available

4

Husqvarna 603000341

NUT

$

$

Not available

5

Husqvarna 603000368

BOLT, M6 SPECIAL

$

$

Not available

12

Husqvarna 603000662

SPRING, DIFFERENTAL LOCK

$

$

Not available

27

Husqvarna 603001080

AXLE TUBE, HD, RH

Note: RH

$

$

Not available

2

Husqvarna 603000189

LUG STUD

$

$

Not available

8

Husqvarna 603000658

HOUSING, DIFFERENTAL LOCK

$

$

Not available

20

Husqvarna 603000840

AXLE SHAFT - LH

Note: LH

$

$

Not available

16

Husqvarna 603000711

BOLT, M10 X 1.5 X 30MM

$

$

Not available

15

Husqvarna 603000681

WASHER

$

$

Not available

3

Husqvarna 603000190

CIRCLIP TYPE C

$

$

Not available

6

Husqvarna 603000525

PIN-COTTER - .312 X 1.25"

$

$

Not available

10

Husqvarna 603000660

O-RING DIFFERENTAL LOCK

$

$

Not available

7

Husqvarna 603000657

BOLT, M10 X 1.5 X 70MM

$

$

Not available

13

Husqvarna 603000663

ARM LEVER, DIFFERENTAL LOCK

$

$

Not available

14

Husqvarna 603000680

SCREW, M6 X 1 X 10MM

$

$

Not available

9

Husqvarna 603000659

LEVER, DIFFERENTAL LOCK

$

$

Not available

22

Husqvarna 603000842

NUT - AXLE FLANGE

$

$

Not available

18

Husqvarna 603000833

SHIFTER, 15T

$

$

Not available

24

Husqvarna 603000844

SEAL, OIL

$

$

Not available

23

Husqvarna 603000843

WASHER - AXLE

$

$

Not available

17

Husqvarna 603000799

STUD MOUNT

$

$

Not available
