HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) CARBURETOR Parts Diagram

4x2 Utility Vehicle

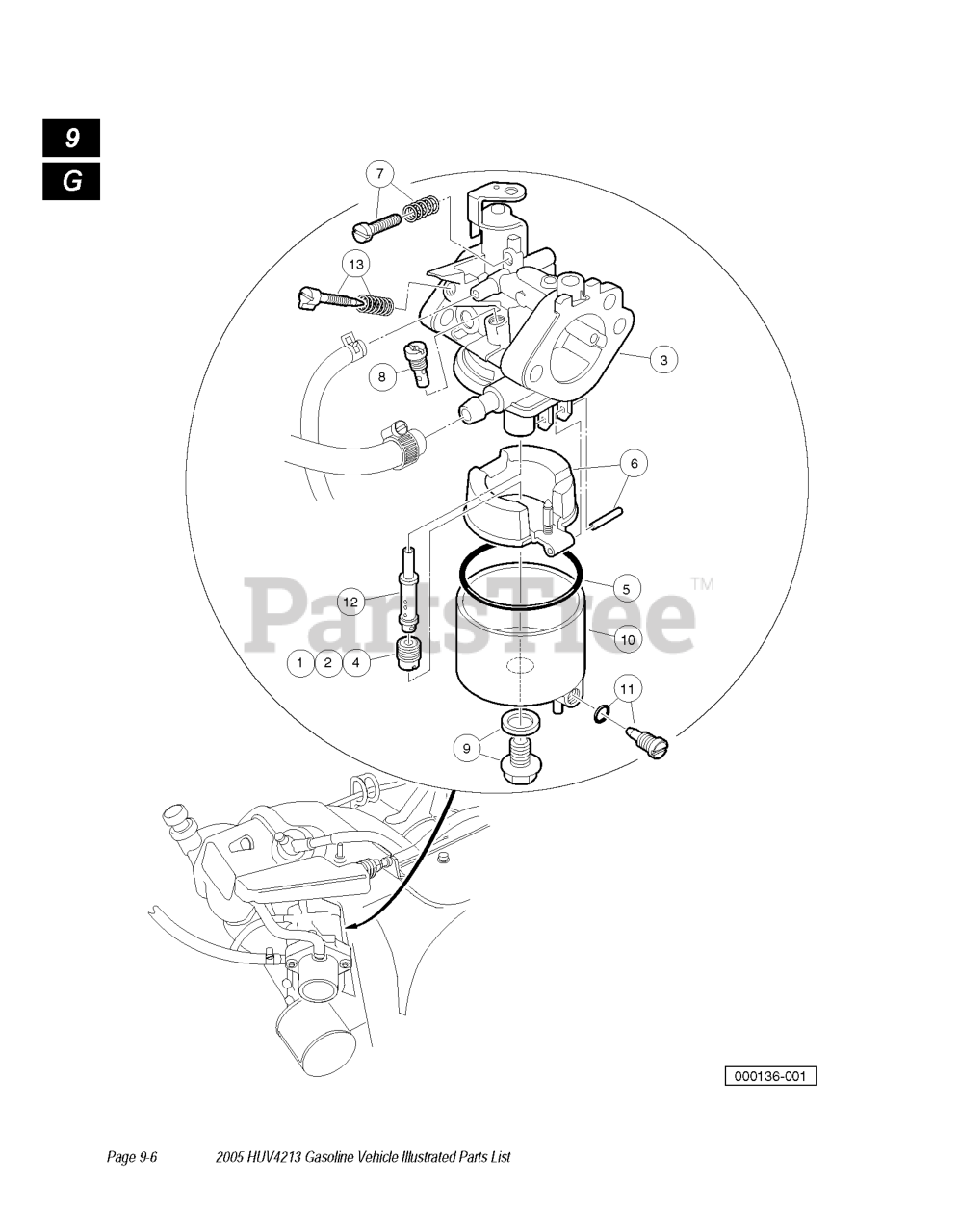

CARBURETOR Parts Diagram

  • Title
7

Husqvarna 603000325

SCREW ASSEMBLY

$

$

Not available

4

Husqvarna 603000469

HIGH ALTITUDE JET

$

$

Not available

8

Husqvarna 603000353

JET, #45 PILOT

$

$

Not available

10

Husqvarna 603000409

CHAMBER ASSEMBLY - FLOAT

$

$

Not available

6

Husqvarna 603000319

FLOAT ASSEMBLY

$

$

Not available

3

Husqvarna 603000852

FE400 CARBURETOR ASSY

$

$

Not available

12

Husqvarna 603000858

Nozzle, Main, Carburetor

$

$

Not available

11

Husqvarna 603000324

SCREW ASSEMBLY

$

$

Not available

$

$

Not available

1

Husqvarna 603000467

JET, HIGH ALTITUDE OHV

$

$

Not available

2

Husqvarna 603000468

HIGH ALTITUDE JET

$

$

Not available

5

Husqvarna 603000297

GASKET, CARB. BOWL OHV

$

$

Not available
