HUV 4213 - Husqvarna 4x2 Utility Vehicle (2008-04) AIR FILTER Parts Diagram

4x2 Utility Vehicle

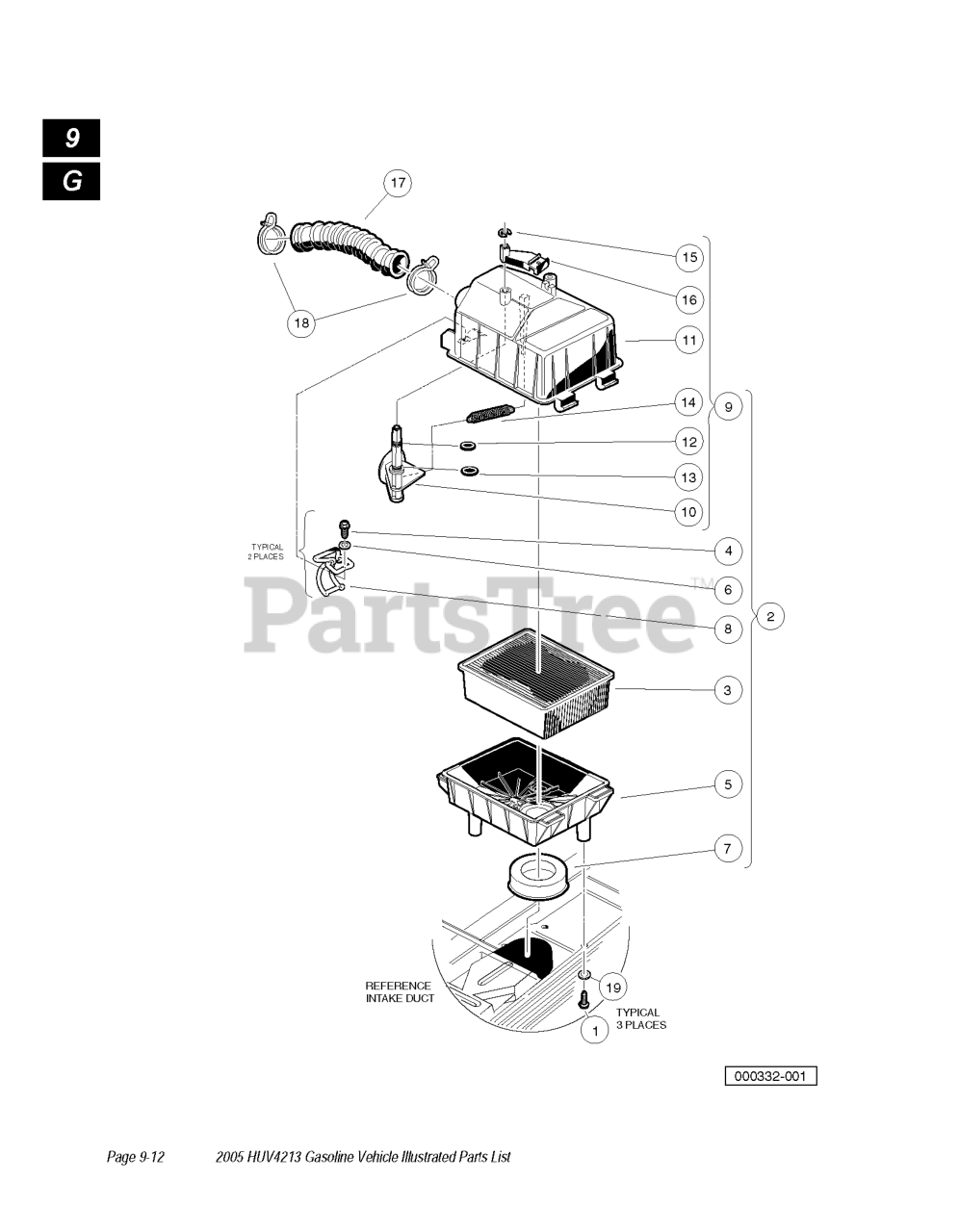

AIR FILTER Parts Diagram

  • Title

17

Husqvarna 603000523

AIR INTAKE HOSE

$

$

Not available

1

Husqvarna 603000268

SCREW, #12-16 X .625 HI-LO

$

$

Not available

6

Husqvarna 603000555

WASHER, #8 SS FLAT WASHER

$

$

Not available

9

Husqvarna 603000619

TOP ASSY, AIR BOX

$

$

Not available

3

Husqvarna 603000004

AIR FILTER OHV

$

$

Not available

16

Husqvarna 603000591

LEVER, CHOKE

$

$

Not available

18

Husqvarna 603000618

CLAMP, 1.58" ID HOSE

$

$

Not available

2

Husqvarna 603000501

AIR BOX ASSY

$

$

Not available

15

Husqvarna 603000498

RETAINING RING .25 SHAFT

$

$

Not available

5

Husqvarna 603000494

BOTTOM, AIR BOX

$

$

Not available

4

Husqvarna 603000491

SCREW, #8 X .500 HX HD HI-LO

$

$

Not available

8

Husqvarna 603000594

LATCH, WIREFORM

$

$

Not available

19

Husqvarna 603000054

WASHER 1/4 FLAT

$

$

Not available

14

Husqvarna 603000497

SPRING, EXTENSION RETURN

$

$

Not available

7

Husqvarna 603000592

SEAL, INTAKE

$

$

Not available
