HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Wheels and Tires, Mud Tread Parts Diagram

4x2 Utility Vehicle

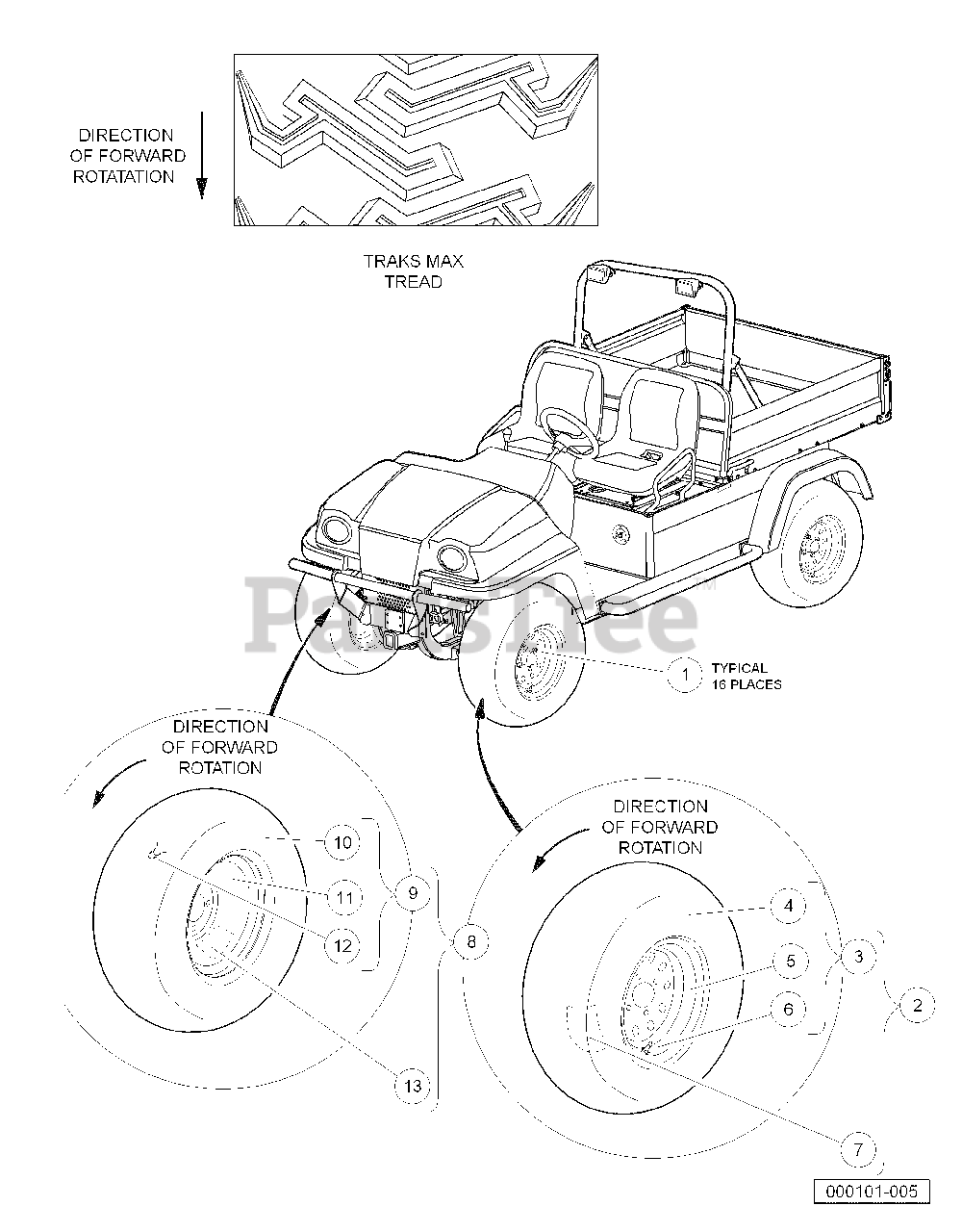

Wheels and Tires, Mud Tread Parts Diagram

  • Title

1

Husqvarna 603000024

.500-20 Unf Lug Nut

$

$

Not available

2

Husqvarna 603000019

Tire Asm, Traks Max L Service

Note: (includes items 3 through 7)

$

$

Not available

3

Gray Tire Asm Traks Max II L

Note: (includes items 4 through 6)

$

$

Not available

4

Husqvarna 603000666

Tire, Traks Max II L

$

$

Not available

5

Husqvarna 603000815

Wheel Rim 10" Gray

$

$

Not available

6

Husqvarna 603000033

Valve Stem

$

$

Not available

7

Husqvarna 603000023

Decal, Brake Warning

$

$

Not available

8

Husqvarna 603000020

Tire Asm, Traks Max R Service

Note: (includes items 9 through 13)

$

$

Not available

9

Gray Tire Asm Traks Max II R

Note: (includes items 10 through 12)

$

$

Not available

10

Husqvarna 603000666

Tire, Traks Max II L

$

$

Not available

11

Husqvarna 603000815

Wheel Rim 10" Gray

$

$

Not available

12

Husqvarna 603000033

Valve Stem

$

$

Not available

13

Husqvarna 603000023

Decal, Brake Warning

$

$

Not available
