HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Steering Gear Assembly Parts Diagram

4x2 Utility Vehicle

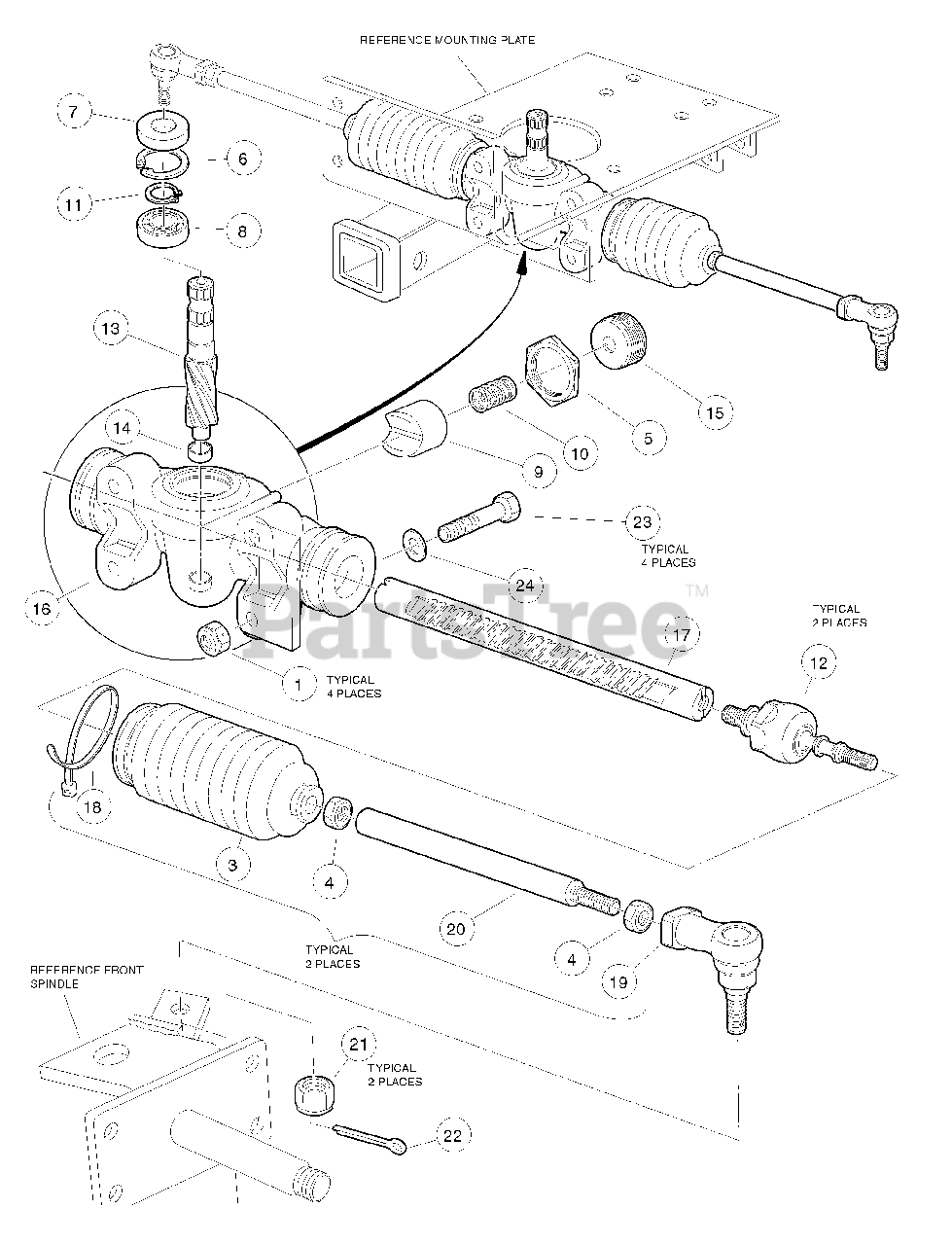

Steering Gear Assembly Parts Diagram

  • Title

1

Husqvarna 603000101

Locknut, 3/8-16 Dimpled

$

$

Not available

2

Husqvarna 603000635

Rack and Pinion Steering Gear

Note: (includes items 3 through 18)

$

$

Not available

3

Husqvarna 603000166

Bellows, Long

$

$

Not available

4

Husqvarna 603000167

Nut, 12mm Hex

$

$

Not available

5

Husqvarna 603000168

Rack Screw Locknut

$

$

Not available

6

Husqvarna 603000169

Snap Ring

$

$

Not available

7

Husqvarna 603000170

Seal, Steering Pinion Dust

$

$

Not available

8

Husqvarna 603000549

Bearing, Ball

$

$

Not available

9

Husqvarna 603000550

Support Yoke

$

$

Not available

10

Husqvarna 603000551

Rack Guide Pressure Spring

$

$

Not available

11

Husqvarna 603000552

Ring, Stop, C-Type

$

$

Not available

12

Husqvarna 603000553

Inner Ball Joint Asm

$

$

Not available

13

Pinion, Steering

$

$

Not available

14

Bearing, Lower Pinion

$

$

Not available

15

Screw, Rack Guide

$

$

Not available

16

Housing, Steering Gear

$

$

Not available

17

Rack, Steering

$

$

Not available

18

Husqvarna 603002963

Tie Wrap, 8" Nylon

$

$

Not available

19

Husqvarna 603000682

End, Tie Rod M12 X 1.25

$

$

Not available

20

Husqvarna 603000683

Drag Link

$

$

Not available

21

Husqvarna 603000684

Locknut, M12-1.25 Nylon

$

$

Not available

22

Husqvarna 603000687

Pin, Cotter

$

$

Not available

23

Husqvarna 603000068

Screw, 3/8-16 X 1.50 Hex-Head Cap

$

$

Not available

24

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available
