HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Rear Suspension Parts Diagram

4x2 Utility Vehicle

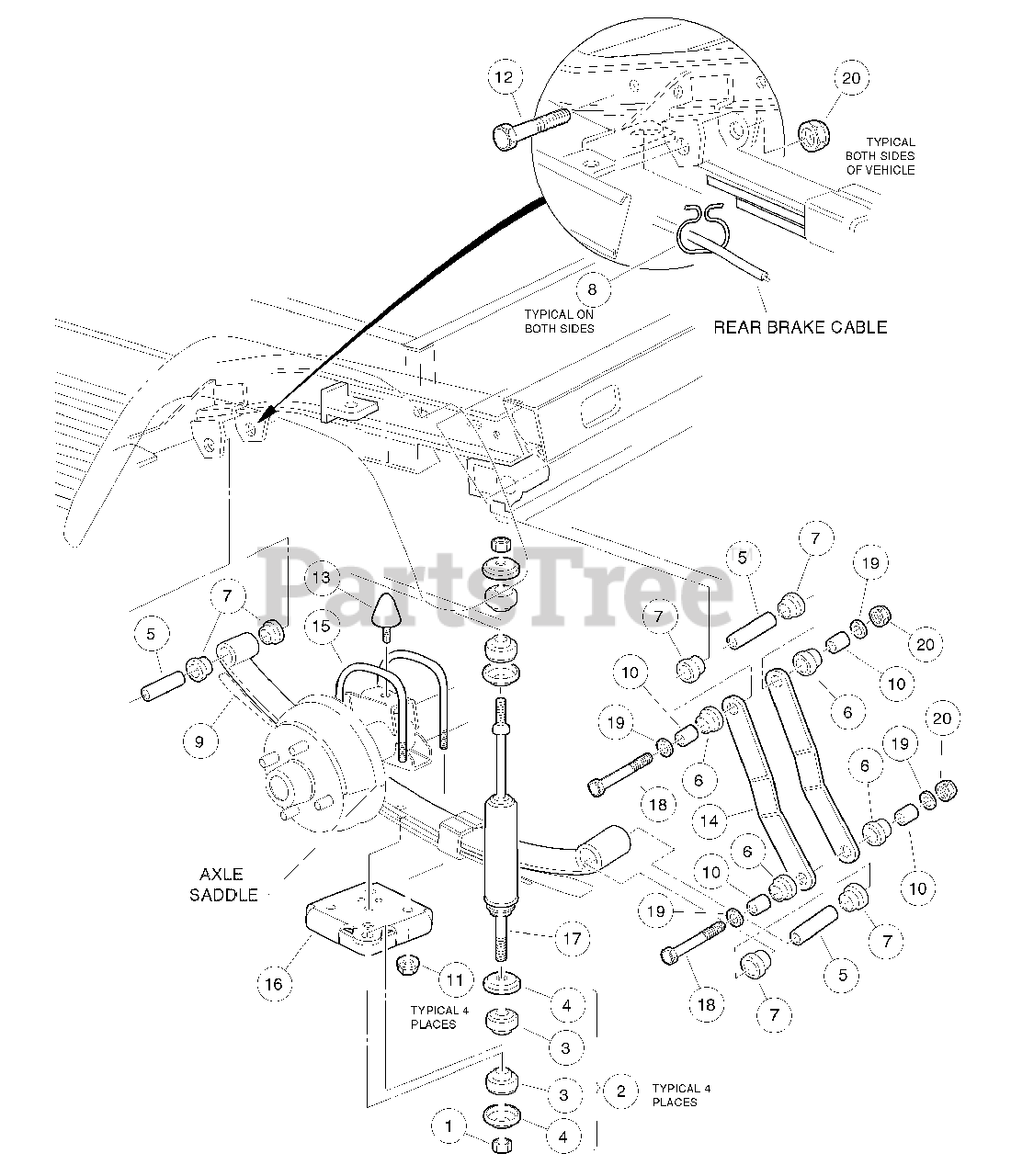

Rear Suspension Parts Diagram

  • Title

1

Husqvarna 603000104

Nut, 3/8-24 Hex

$

$

Not available

2

Husqvarna 603003022

Kit, Shock Absorber Cushion

Note: (includes items 3 and 4)

$

$

Not available

3

Cushion, Shock Absorber

$

$

Not available

4

Retainer, Shock Absorber Cushion

$

$

Not available

5

Husqvarna 603000136

Bushing, Steel

$

$

Not available

6

Husqvarna 603000259

Compression Mount

$

$

Not available

7

Husqvarna 603000263

Bushing, Urethane

$

$

Not available

8

Husqvarna 603000577

Hanger, Brake Cable

$

$

Not available

9

Husqvarna 603000634

Spring, Rear Leaf

$

$

Not available

10

Husqvarna 603000731

Spacer 0.38 ID X 0.500 OD

$

$

Not available

11

Husqvarna 603000778

Locknut 7/16-14 Flange Dimple

$

$

Not available

12

Husqvarna 603000782

Screw, 3/8-16 X 3.50 Hex Cap

$

$

Not available

13

Husqvarna 603000799

Stud Mount

$

$

Not available

14

Husqvarna 603000822

Shackle, Rear Spring -gas 272

$

$

Not available

15

Husqvarna 603000825

U-Bolt

$

$

Not available

16

Husqvarna 603000829

Reinforced Spring Pad

$

$

Not available

17

Husqvarna 603000831

Shock Absorber, Rear

$

$

Not available

18

Husqvarna 603000073

Bolt, 3/8-16 X 4.50 Hex Head

$

$

Not available

19

Husqvarna 603003617

Washer, 3/8 Type B Flat

$

$

Not available

20

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
