HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Rear Body Trim Parts Diagram

4x2 Utility Vehicle

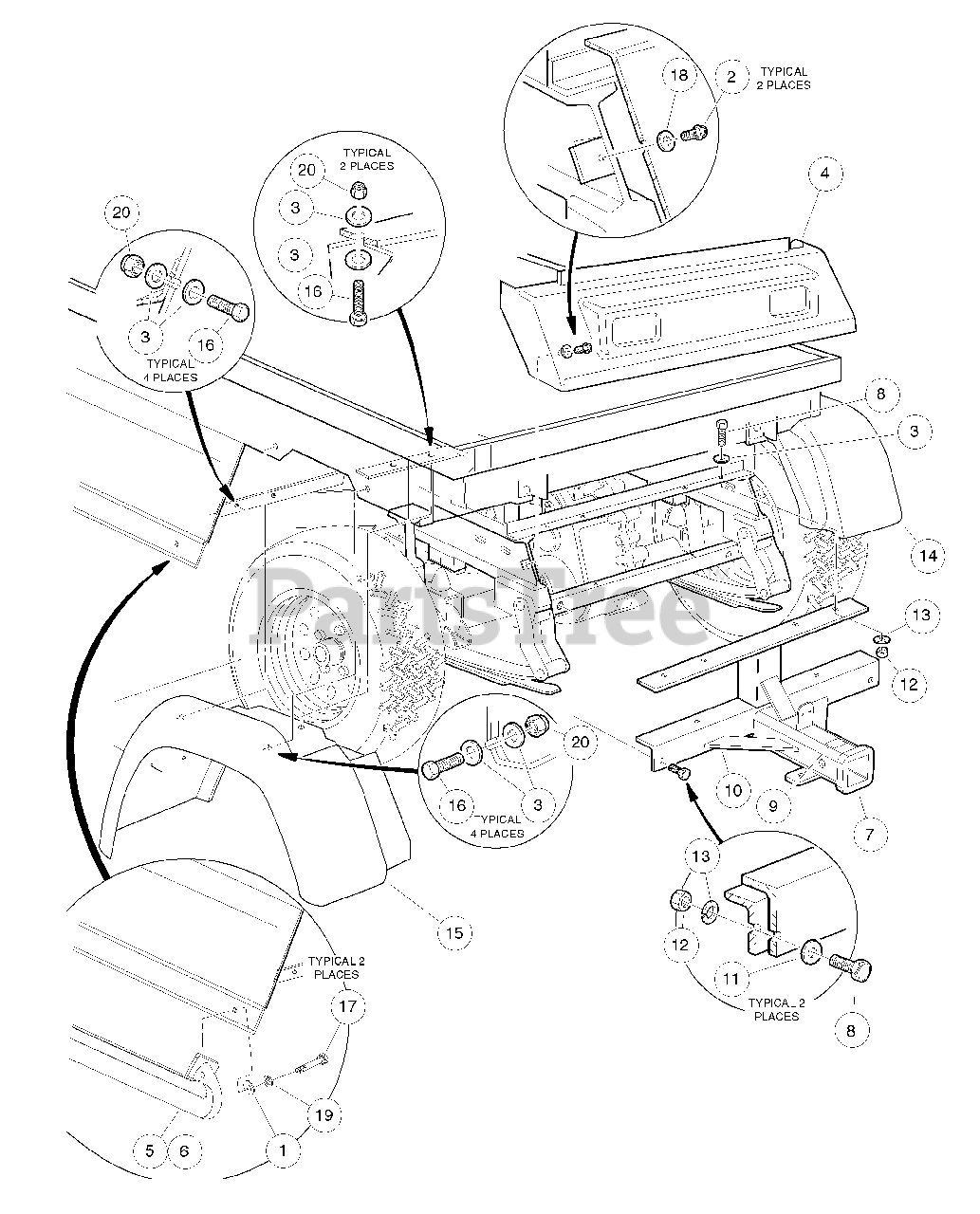

Rear Body Trim Parts Diagram

  • Title

1

Husqvarna 603000132

Washer, 3/8 Flat

$

$

Not available

2

Husqvarna 603000134

Screw, 1/4 X 0.625 Hex-Head

$

$

Not available

3

Husqvarna 603000222

Washer, 1/4" Type B Flat

$

$

Not available

4

Husqvarna 603000262

Tailskirt

$

$

Not available

5

Husqvarna 603000693

Side Step Bar

Note: (black)

$

$

Not available

6

Husqvarna 603000694

Side Step Bar

Note: (orange)

$

$

Not available

7

Husqvarna 603000779

Kit, Rear Receiver

Note: (includes items 8 through 13)

$

$

Not available

8

Husqvarna 603000116

Screw, 5/16-18 X 1.00 Hex Cap

$

$

Not available

9

Husqvarna 603000123

Decal, Trailer Hitch

$

$

Not available

10

Husqvarna 603000769

Receiver Hitch Weld Asm

$

$

Not available

11

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

12

Husqvarna 603000066

Nut, 5/16-18 Hex

$

$

Not available

13

Husqvarna 603000072

Lockwasher, 5/16 Split

$

$

Not available

14

Husqvarna 603002690

Fender, Right Rear

$

$

Not available

15

Husqvarna 603002691

Fender, Left Rear

$

$

Not available

16

Husqvarna 603000052

Screw, 1/4-20 X 1.0 Hex-Head Cap

$

$

Not available

17

Husqvarna 603000053

Screw, 3/8-16 X 1.00 Hex-Head Cap

$

$

Not available

18

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

19

Husqvarna 603000056

Washer, Lock, Hel Sp 3/8 Reg

$

$

Not available

20

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available
