HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) MC012C-BS00 S/N MC012C3J0001 & Up - Differential Lock and Axles Parts Diagram

4x2 Utility Vehicle

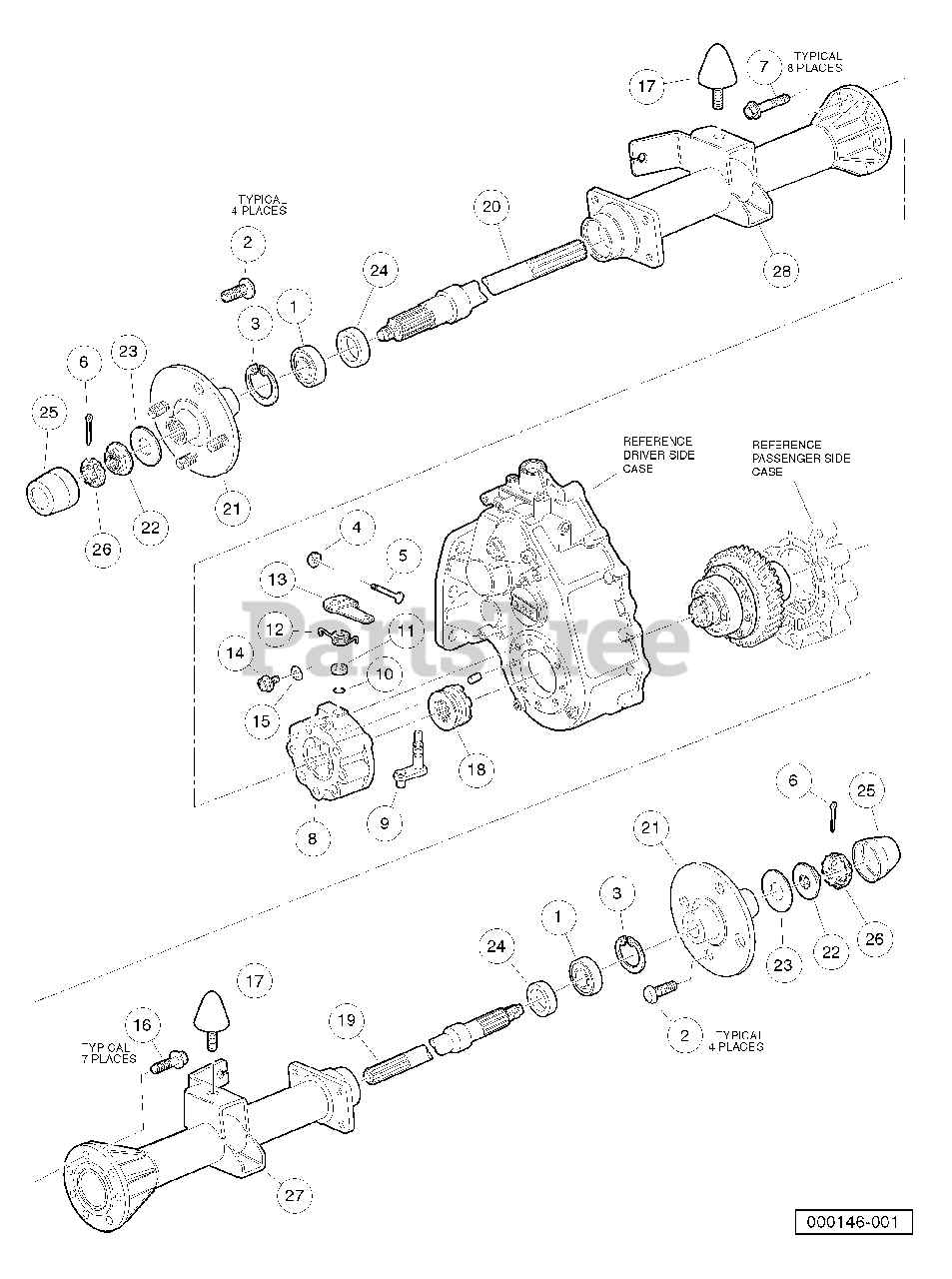

MC012C-BS00 S/N MC012C3J0001 & Up - Differential Lock and Axles Parts Diagram

  • Title

1

Husqvarna 603000120

Outer Axle, Tube Bearing

$

$

Not available

2

Husqvarna 603000189

Lu9 stud

$

$

Not available

3

Husqvarna 603000190

Circlip Type C

$

$

Not available

4

Husqvarna 603000341

Nut

$

$

Not available

5

Husqvarna 603000368

Bolt, M6 Special

$

$

Not available

6

Husqvarna 603000525

Pin, Cotter, 0.312 x 1.25

$

$

Not available

7

Husqvarna 603000657

Bolt, M10 X 1.5 X 70mm

$

$

Not available

8

Husqvarna 603000658

Housing, Differental Lock

$

$

Not available

9

Husqvarna 603000659

Lever, Differental Lock

$

$

Not available

10

Husqvarna 603000660

O-Ring

$

$

Not available

11

Husqvarna 603000661

Spacer, Differental Lock

$

$

Not available

12

Husqvarna 603000662

Spring, Differental Lock

$

$

Not available

13

Husqvarna 603000663

Arm Lever, Differental Lock

$

$

Not available

14

Husqvarna 603000680

Screw, M6 X 1 X 10mm

$

$

Not available

15

Husqvarna 603000681

Washer

$

$

Not available

16

Husqvarna 603000711

Bolt, M10 X 1.5 X 30mm

$

$

Not available

17

Husqvarna 603000799

Stud Mount

$

$

Not available

18

Husqvarna 603000833

Shifter, 15-Tooth

$

$

Not available

19

Husqvarna 603000839

Axle Shaft - Rh

$

$

Not available

20

Husqvarna 603000840

Axle Shaft - l_h

$

$

Not available

21

Husqvarna 603000841

Wheel Bolt Flange

$

$

Not available

22

Husqvarna 603000842

Nut, Flange

$

$

Not available

23

Husqvarna 603000843

Washer - Axle

$

$

Not available

24

Husqvarna 603000844

Seal, Oil

$

$

Not available

25

Husqvarna 603000866

Center Cap, Rubber

$

$

Not available

26

Husqvarna 603000867

Locking Cap, Nut

$

$

Not available

27

Husqvarna 603001080

Axle Tube, Hd, Rh

$

$

Not available

28

Husqvarna 603001081

Axle Tube, Hd, Lh

$

$

Not available
