HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Master Cylinder Parts Diagram

4x2 Utility Vehicle

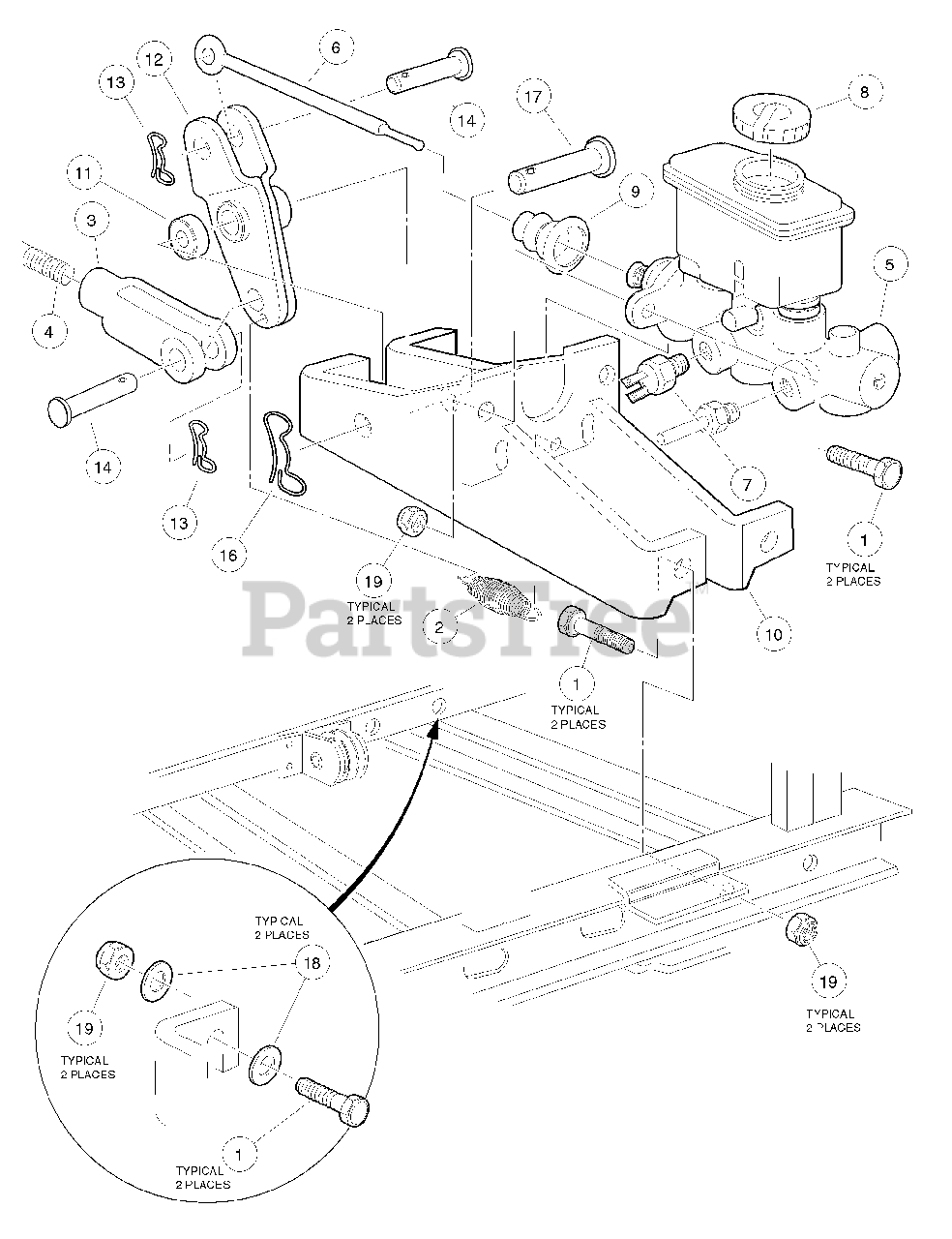

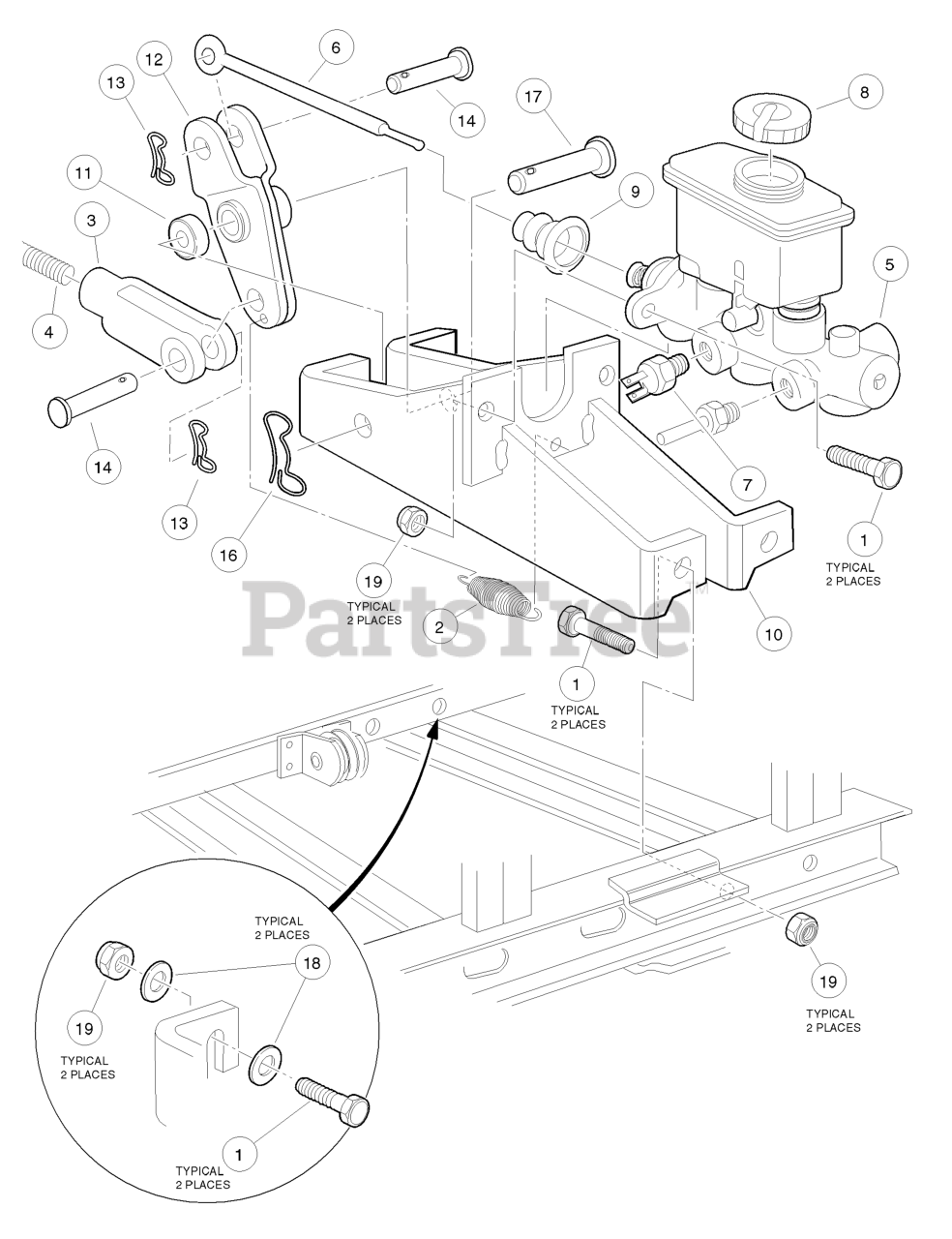

Master Cylinder Parts Diagram

  • Title

1

Husqvarna 603000116

Screw, 5/16-18 X 100 Hex Cap

$

$

Not available

2

Husqvarna 603000175

Spring, Brake Return

$

$

Not available

3

Husqvarna 603000492

Clevis

$

$

Not available

4

Husqvarna 603000610

Rod, Equalizer, 1330"

$

$

Not available

5

Husqvarna 603000717

Master Cylinder

Note: (includes items 6 through 9)

$

$

Not available

6

Husqvarna 603000757

Push Rod

$

$

Not available

7

Husqvarna 603000758

Pressure Switch

$

$

Not available

8

Husqvarna 603000759

Filler Cap Asm

$

$

Not available

9

Husqvarna 603004296

Master Cylinder Boot

$

$

Not available

10

Husqvarna 603000767

Support Leg Brace Asm

$

$

Not available

11

Husqvarna 603000771

Spacer

$

$

Not available

12

Husqvarna 603000880

Bell Crank

$

$

Not available

13

Husqvarna 603000882

Pin, Bow Tie Locking

$

$

Not available

14

Husqvarna 603002601

Pin, 3/8 X 1-5/16 Clevis

$

$

Not available

15

Husqvarna 603000888

Plug, 3/8 X 24

$

$

Not available

16

Husqvarna 603001195

Pin, Bow Tie 0120 X 2750

$

$

Not available

17

Husqvarna 603001196

Pin, 1/2 X 2-1/2 Clevis

$

$

Not available

18

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

19

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available
