HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Hand Park Brake Assembly Parts Diagram

4x2 Utility Vehicle

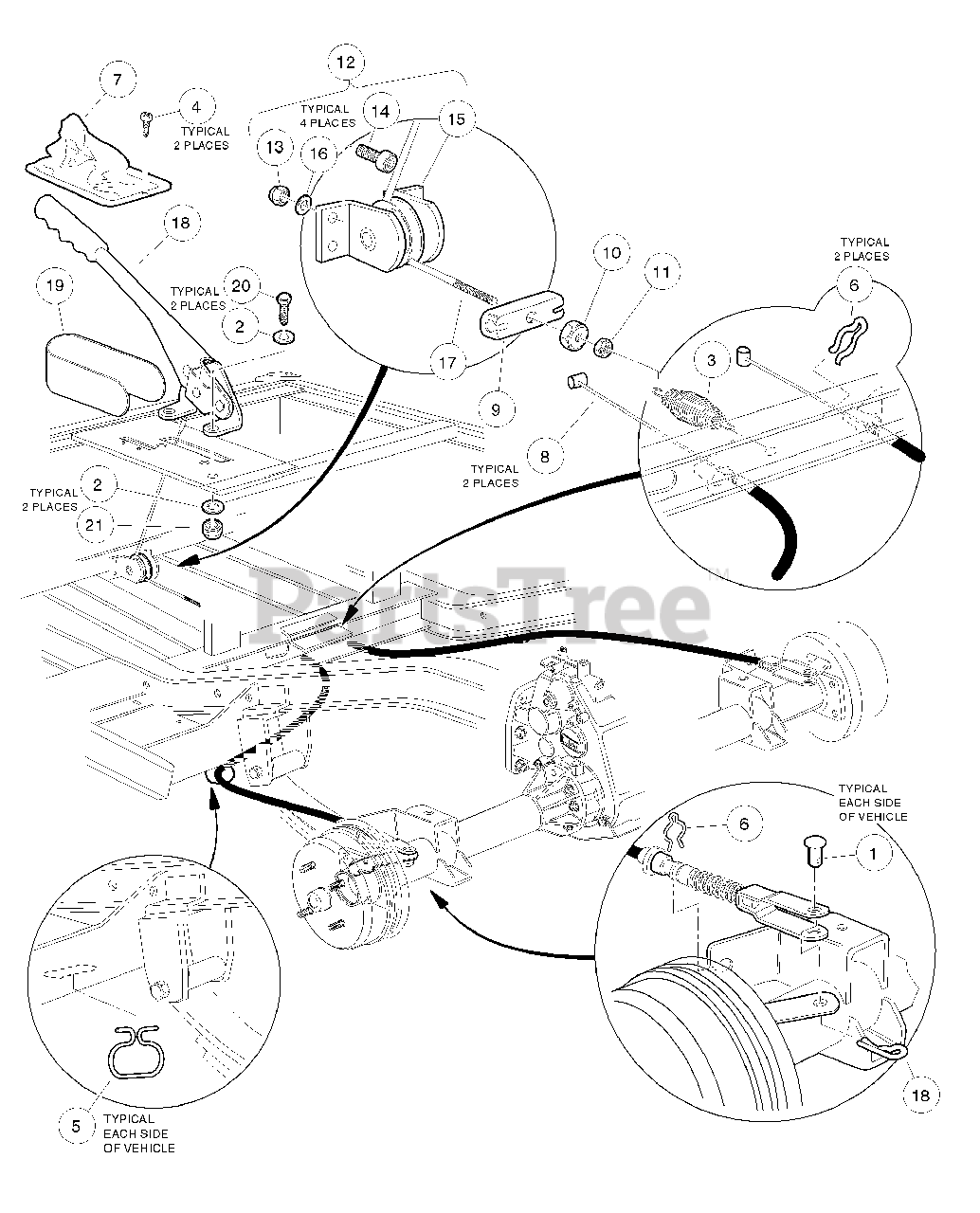

Hand Park Brake Assembly Parts Diagram

  • Title

1

Husqvarna 603000112

Pin, Clevis, 5/16 X 3/4

$

$

Not available

2

Husqvarna 603000132

Washer, 3/8 Flat

$

$

Not available

3

Husqvarna 603000175

Spring, Brake Return

$

$

Not available

4

Husqvarna 603000506

Screw, #7-19 X 0625 Phillips Pan-Head Tap

$

$

Not available

5

Husqvarna 603000577

Hanger, Brake Cable

$

$

Not available

6

Husqvarna 603000702

Park Brake Cable Clip

$

$

Not available

7

Husqvarna 603000721

Park Brake Boot

$

$

Not available

8

Husqvarna 603000722

Cable, Long Parking Brake

$

$

Not available

9

Husqvarna 603000765

Equalizer

$

$

Not available

10

Husqvarna 603000766

Nut, 5/16-24 Hex Cone

$

$

Not available

11

Nut, 5/16-24 Hex

$

$

Not available

12

Husqvarna 603000818

Pulley Kit

Note: (includes items 13 through 16)

$

$

Not available

13

Husqvarna 603000141

Locknut, #10-24 Nylon Insert

$2.49

$

In Stock, only 1 left!

0

14

Husqvarna 603000455

Screw, #10-24 X 3/4 Socket-Head

$3.49

$

In Stock, only 4 left!

0

15

Husqvarna 603000701

Pulley, 2-Inch Flat Mount

$51.99

$

In Stock, only 2 left!

0

16

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

17

Husqvarna 603000819

Cable, Park Brake

$

$

Not available

18

Husqvarna 603000872

Pin, Bow Tie Locking - 072

$

$

Not available

19

Husqvarna 603002654

Lever, Box

$

$

Not available

20

Shield, Boot

$

$

Not available

21

Husqvarna 603000059

Screw, Cap-hex Hd 3/8-16x125

$

$

Not available

22

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
