HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Fuel System Parts Diagram

4x2 Utility Vehicle

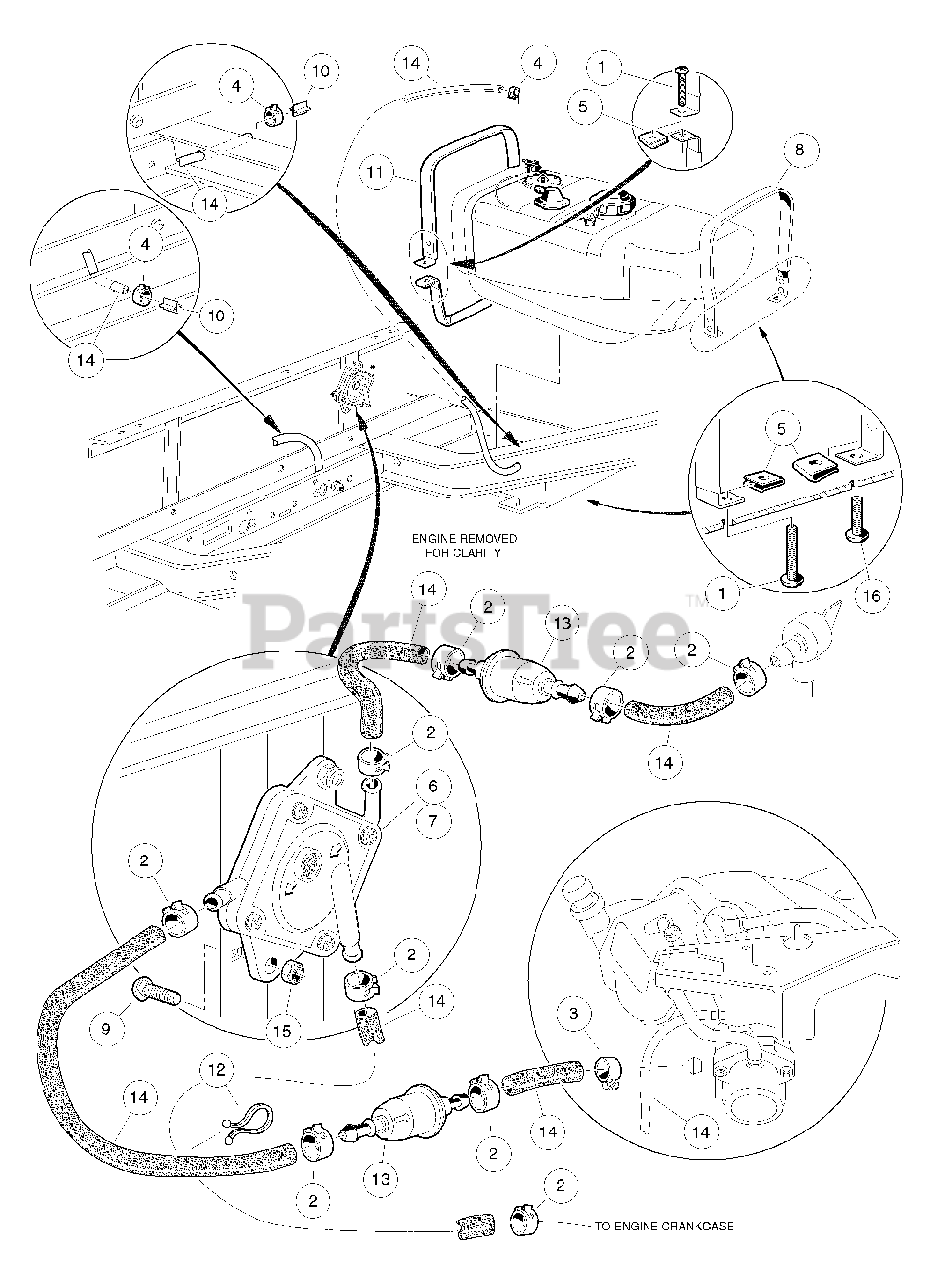

Fuel System Parts Diagram

  • Title
1

Husqvarna 603000131

Screw, 1/4-20 X 2.00 Phillips Truss-Head

$

$

Not available

2

Husqvarna 603000149

Clamp, 0.460 Red Hose

$

$

Not available

3

Husqvarna 603000181

Clamp, 3/8" Hose

Note: (screw type)

$

$

Not available

4

Husqvarna 603000185

Clamp, 0.301 ID Hose

$

$

Not available

5

Husqvarna 603000210

Nut, 1/4-20 Speed

$

$

Not available

6

Husqvarna 603000230

Pump, Impulse Fuel

$

$

Not available

7

Husqvarna 603000231

Kit, Impulse Pump Rebuild

$

$

Not available

8

Husqvarna 603000237

Fuel Strap Assembly Rear

$

$

Not available

9

Husqvarna 603003625

Carriage Bolt

$

$

Not available

10

$

$

Not available

11

Husqvarna 603000611

Fuel Strap Assy, Front

$

$

Not available

12

Husqvarna 603000624

Clamp, Plastic Tie

$

$

Not available

13

Husqvarna 603000008

Filter, Fuel, 30 Micron

$

$

Not available

14

$

$

Not available

15

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

16

Husqvarna 603000090

Screw, 1/4-20 X 0.75 Truss-Head Machine

$

$

Not available
