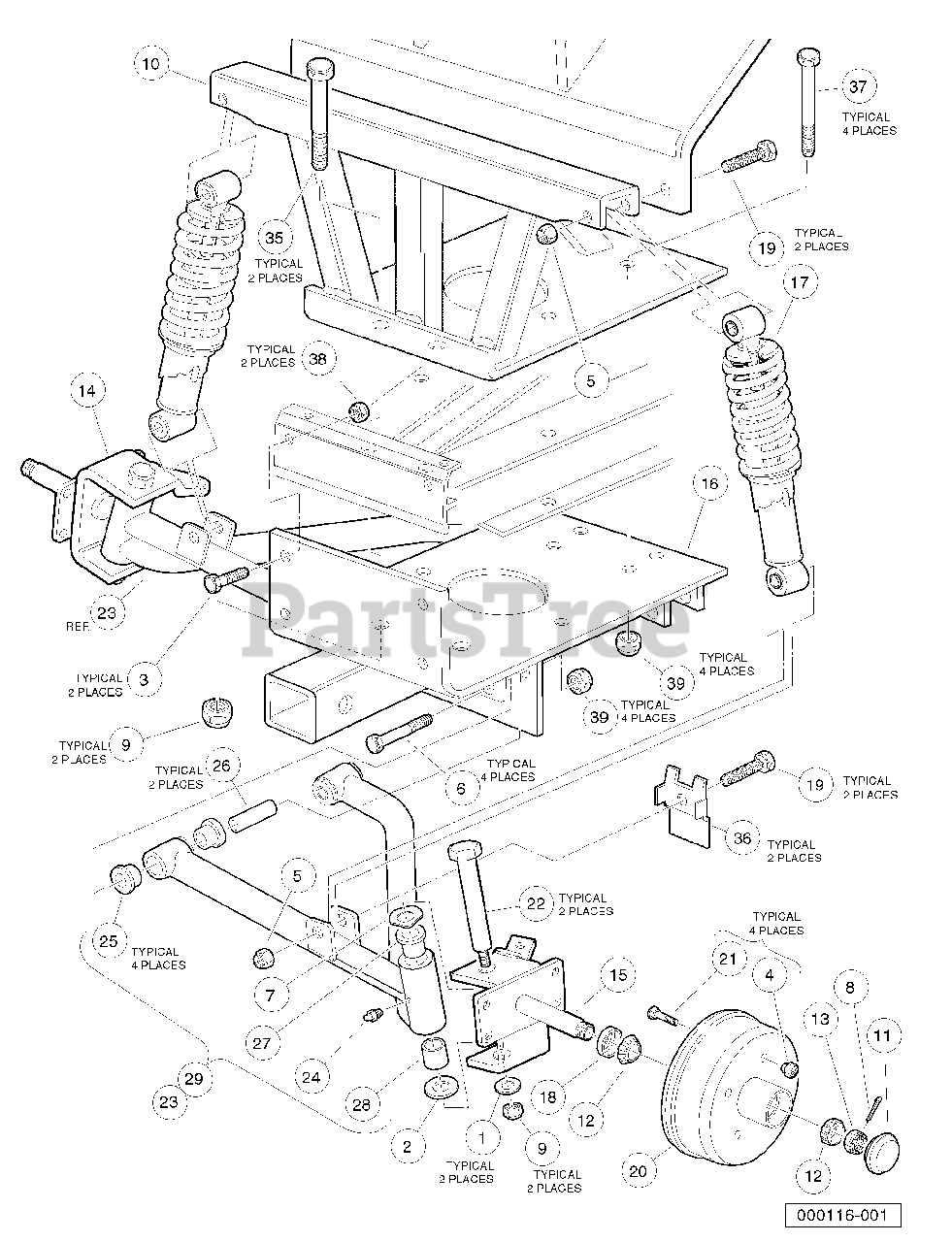

HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Front Suspension Parts Diagram

4x2 Utility Vehicle

Front Suspension Parts Diagram

  • Title

1

Husqvarna 603000495

Washer, 1/2 Type A Flat

$

$

Not available

2

Husqvarna 603000105

Bearing, Thrust

$

$

Not available

3

Husqvarna 603000116

Screw, 5/16-18 X 1.00 Hex Cap

$

$

Not available

4

Husqvarna 603000024

.500-20 Unf Lug Nut

$

$

Not available

5

Husqvarna 603000233

Locknut, 7/16-14 Nylon Insert

$

$

Not available

6

Husqvarna 603000291

Screw, 3/8-16 X 2.75 Hx Hd Cap

$

$

Not available

7

Husqvarna 603000292

Washer, 1.125 Od Wave

$

$

Not available

8

Husqvarna 603000525

Pin, Cotter, 0.312 x 1.25

$

$

Not available

9

Husqvarna 603000578

Locknut, 1/2-20 Nylon Insert

$

$

Not available

10

Husqvarna 603000638

Shock Tower

$

$

Not available

11

Husqvarna 603000641

Dust Cover

$

$

Not available

12

Husqvarna 603000642

Bearing, Tapered

$

$

Not available

13

Husqvarna 603000643

Nut, 1.00-14 Slotted Hex Jam

$

$

Not available

14

Husqvarna 603000647

Assembly, Spindle, RH

$

$

Not available

15

Husqvarna 603000648

Assembly, Spindle, LH

$

$

Not available

16

Husqvarna 603000649

Suspension Mtg Plate

$

$

Not available

17

Husqvarna 603000650

Shock Absorber, Coil Over

$

$

Not available

18

Husqvarna 603000685

Seal, Dual-Lip

$

$

Not available

19

Husqvarna 603000686

Screw, 7/16-14 X 2.50 Hex Cap

$

$

Not available

20

Husqvarna 603000724

Assembly, Front Hub

Note: (includes item 21)

$

$

Not available

21

Husqvarna 603000189

Lug Stud

$

$

Not available

22

Husqvarna 603000738

King Pin Bolt Assembly

$

$

Not available

23

Husqvarna 603000763

Right A-arm Asm

Note: (includes items 24 through 28)

$

$

Not available

24

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 603000290

Bushing, Urethane

$

$

Not available

26

Husqvarna 603000783

Sleeve, A-Arm

$

$

Not available

27

Husqvarna 603000070

Bushing, Flanged Bronze

$

$

Not available

28

Husqvarna 603000088

Bushing, Bronze Spindle

$

$

Not available

29

Husqvarna 603000764

Left A-Arm Asm

Note: (includes items 30 through 34)

$

$

Not available

30

Husqvarna 603000264

Fitting, 1/4-28 Thread-Forming Grease

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 603000290

Bushing, Urethane

$

$

Not available

32

Husqvarna 603000783

Sleeve, A-Arm

$

$

Not available

33

Husqvarna 603000070

Bushing, Flanged Bronze

$

$

Not available

34

Husqvarna 603000088

Bushing, Bronze Spindle

$

$

Not available

35

Husqvarna 603000784

Screw, 1/2-20 X 5.0 Hex Cap

$

$

Not available

36

Husqvarna 603000792

Steering Stop Mtg Plate

$

$

Not available

37

Husqvarna 603000073

Bolt, 3/8-16 X 4.50 Hex Head

$

$

Not available

38

Husqvarna 603000078

Locknut, 5/16-18 Nylon Insert

$

$

Not available

39

Husqvarna 603000095

Locknut, 3/8-16 Hex

$

$

Not available
