HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Front Brake Assembly Parts Diagram

4x2 Utility Vehicle

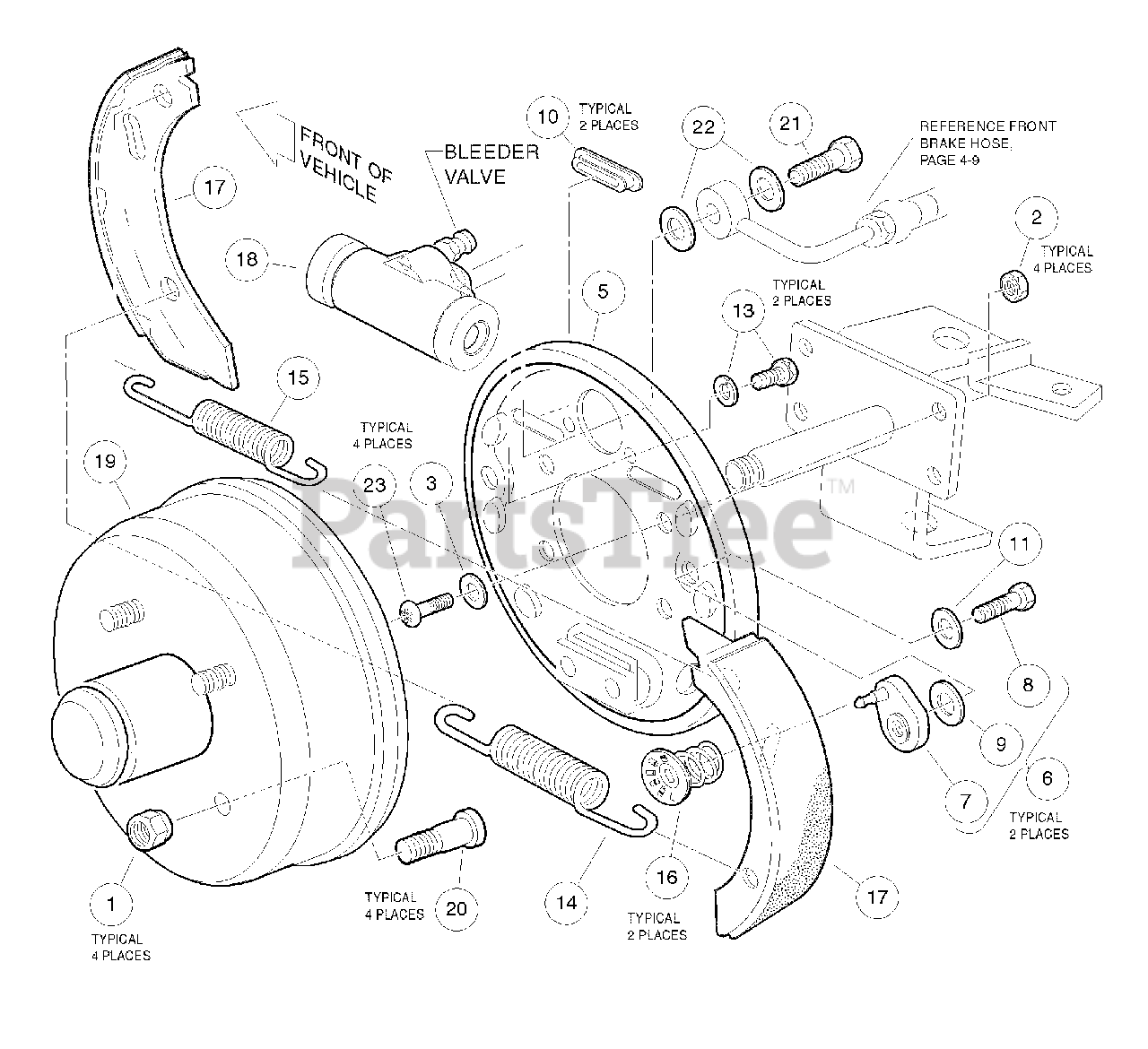

Front Brake Assembly Parts Diagram

  • Title

1

Husqvarna 603000024

500-20 Unf Lug Nut

$

$

Not available

2

Husqvarna 603000193

Nut, 5/16-24 Hex Head Cone

$

$

Not available

3

Husqvarna 603000388

Washer, 5/16 Hardened

$

$

Not available

4

Husqvarna 603000718

Cluster, Front Brake

Note: (includes items 5 through 18)

$

$

Not available

5

Husqvarna 603000739

Backing Plate Asm

$

$

Not available

6

Husqvarna 603000741

Kit, Axle Adjuster

Note: (includes items 7 through 11)

$

$

Not available

7

Husqvarna 603000740

Adjuster

$

$

Not available

8

Husqvarna 603000743

Bolt, 1/4-28 UNF X 31

$

$

Not available

9

Husqvarna 603000744

Washer

$

$

Not available

10

Husqvarna 603000745

Dust Cover

$

$

Not available

11

Washer, 1/4 Flat

$

$

Not available

12

Husqvarna 603000742

Kit, Axle Hardware

Note: (includes items 13 through 16)

$

$

Not available

13

Husqvarna 603000748

Bolt, Wheel Cylinder

$

$

Not available

14

Husqvarna 603000749

Spring, Shoe To Shoe, Lower

$

$

Not available

15

Husqvarna 603000750

Spring, Shoe To Shoe, Upper

$

$

Not available

16

Husqvarna 603000751

Shoe Hold Down

$

$

Not available

17

Husqvarna 603000746

Shoe Kit, Axle Set

$

$

Not available

18

Husqvarna 603000747

Wheel Cylinder Assembly 0625 Dia

$

$

Not available

19

Husqvarna 603000724

Assembly, Front Hub

Note: (includes item 20)

$

$

Not available

20

Husqvarna 603000189

Lug Stud

$

$

Not available

21

Husqvarna 603000725

Bolt, Banjo

$

$

Not available

22

Husqvarna 603000730

Copper Washer

$

$

Not available

23

Husqvarna 603000755

Screw, 5/16-24 X 10 Torx Hd

$

$

Not available
