HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Forward and Reverse Shifter Assembly Parts Diagram

4x2 Utility Vehicle

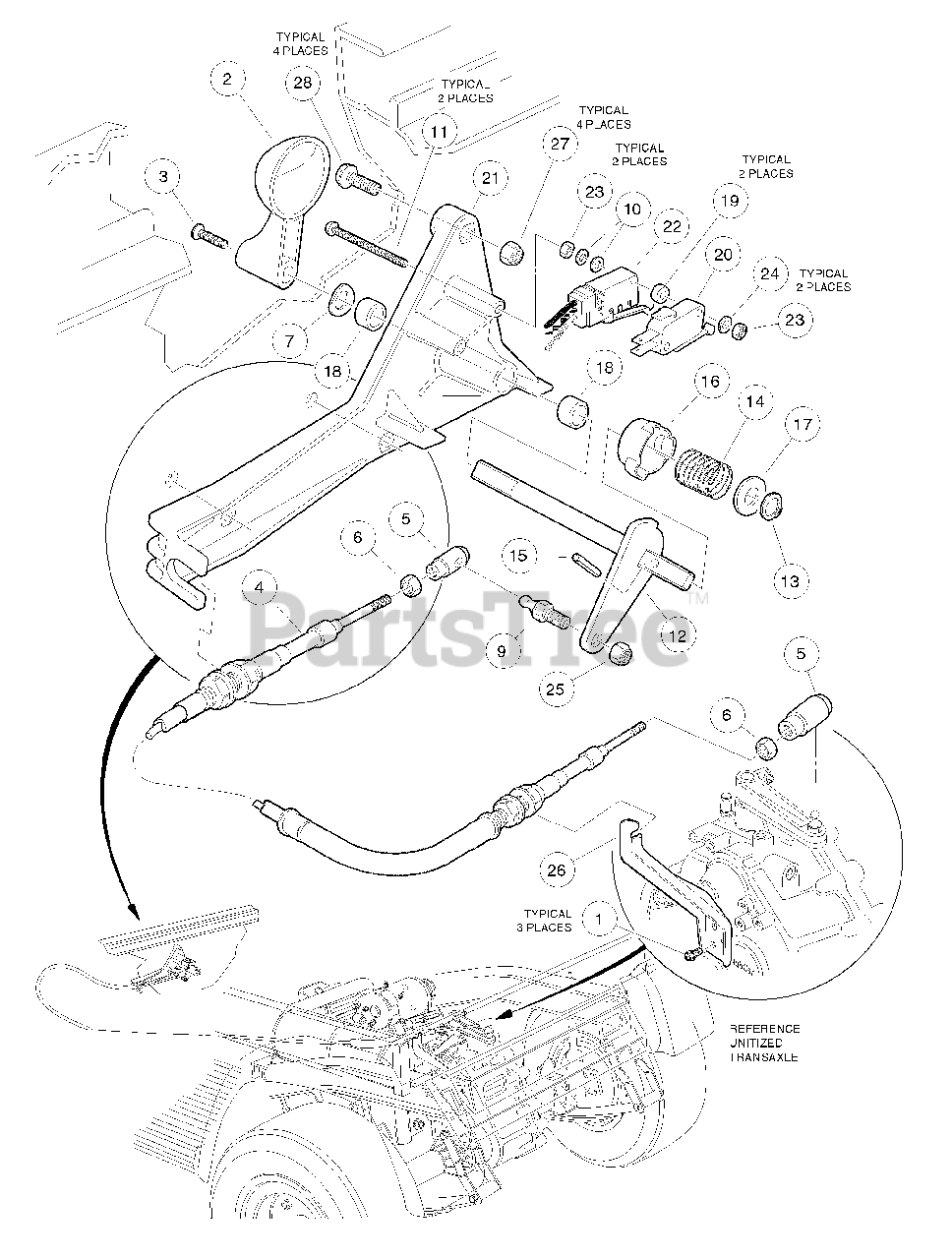

Forward and Reverse Shifter Assembly Parts Diagram

  • Title
1

Husqvarna 603000134

Screw, 1/4 X 0.625 Hex-Head

$

$

Not available

2

Husqvarna 603000162

Handle, FNR

$

$

Not available

3

Husqvarna 603000239

Screw, #8-32 X 0.63 Machine

$

$

Not available

4

Husqvarna 603000258

Cable, Shifter

Note: (includes items 5 and 6)

$

$

Not available

5

Husqvarna 603000137

Joint, #10-32 Ball

$

$

Not available

6

Husqvarna 603000084

Nut, #10-32 Hex

$

$

Not available

7

Husqvarna 603000282

Washer, Wave

$

$

Not available

8

Husqvarna 603000378

Assembly, FNR Shifter

Note: (includes items 9 through 25)

$

$

Not available

9

Husqvarna 603000117

Stud, 1/4-28 X 0.560 Ball

$

$

Not available

10

Husqvarna 603000140

Washer, #4 Flat

$

$

Not available

11

Husqvarna 603000146

Screw, #4-40 Machine

$

$

Not available

12

Husqvarna 603000176

FNR Bell Crank Weldment

$

$

Not available

13

Husqvarna 603000177

Ring, 0.338" Internal Retaining

$

$

Not available

14

Husqvarna 603000178

Spring, FNR Cam

$

$

Not available

15

Husqvarna 603000179

Pin, 1/8 X 1/2 Roll

$

$

Not available

16

Husqvarna 603000209

Neutral Lockout Cam Kit

Note: (includes item 17)

$

$

Not available

17

Husqvarna 603000204

Washer, 0.38" ID Delrin Flat

$

$

Not available

18

Husqvarna 603000215

Bushing, Secondary Weight, Split

$

$

Not available

19

Husqvarna 603000234

Washer, #4 Nylon Flat

$

$

Not available

20

Husqvarna 603000235

Switch, Limit

$

$

Not available

21

Husqvarna 603000289

FNR Shifter Base

$22.99

$

In Stock, only 1 left!

0

22

Husqvarna 603000621

Assembly, Switch, Limit

$

$

Not available

23

Husqvarna 603000086

Nut, #4-40 Hex Machine

$

$

Not available

24

Husqvarna 603000087

Lockwasher, #4 Helical Split

$

$

Not available

25

Husqvarna 603000094

Locknut, 1/4-28 Nylon Insert

$

$

Not available

26

Husqvarna 603003233

Bracket, Shifter

$

$

Not available

27

Husqvarna 603000089

Locknut, 1/4-20 Nylon Insert

$

$

Not available

28

Husqvarna 603000090

Screw, 1/4-20 X 0.75 Truss-Head Machine

$

$

Not available
