HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Exhaust System, FE400 Engine Parts Diagram

4x2 Utility Vehicle

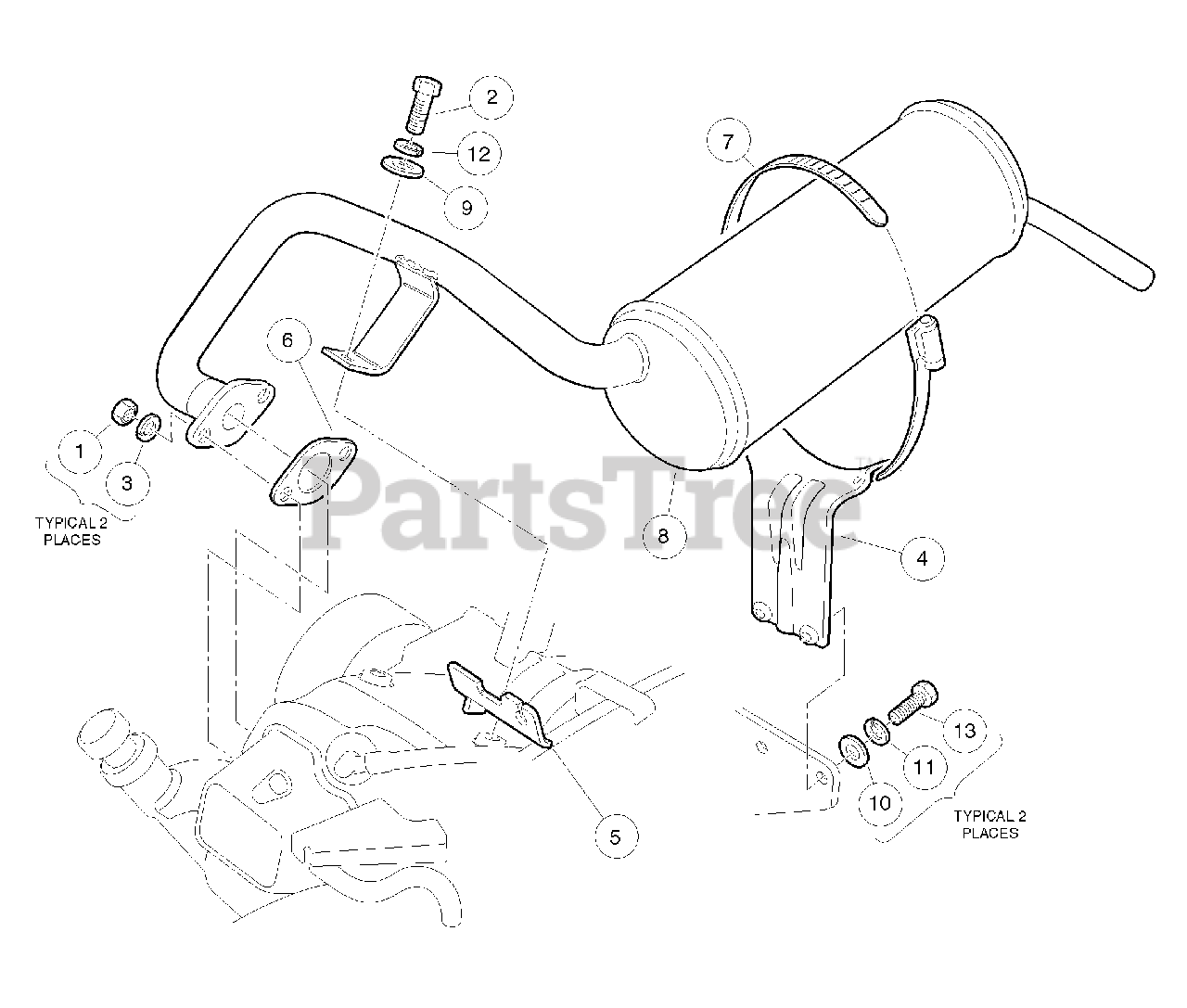

Exhaust System, FE400 Engine Parts Diagram

  • Title

1

Husqvarna 603000142

Nut, M8-1.25 Hex

$

$

Not available

2

Husqvarna 603000579

Screw, M8-125 X 22 Hex-Head

$

$

Not available

3

Husqvarna 603000184

Lockwasher, 8mm Split

$

$

Not available

4

Husqvarna 603000270

Bracket, Muffler Mounting

$

$

Not available

5

Husqvarna 603000271

Bracket, Governor Cable Snap-In

$

$

Not available

6

Husqvarna 603002993

Gasket, Exhaust

$

$

Not available

7

Husqvarna 603000431

Clamp, 5" Muffler Hose

$

$

Not available

8

Husqvarna 603000823

Exhaust System

$

$

Not available

9

Husqvarna 603000065

Washer, 5/16 Type A Flat

$

$

Not available

10

Husqvarna 603000054

Washer, 1/4 Type A Narrow Flat

$

$

Not available

11

Husqvarna 603000058

Lockwasher, 1/4 Helical Split

$

$

Not available

12

Husqvarna 603000072

Lockwasher, 5/16 Split

$

$

Not available

13

Husqvarna 603000083

Screw, 1/4-20 X 0.75 Hex-Head Cap

$

$

Not available
