HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Engine Mounting Parts Diagram

4x2 Utility Vehicle

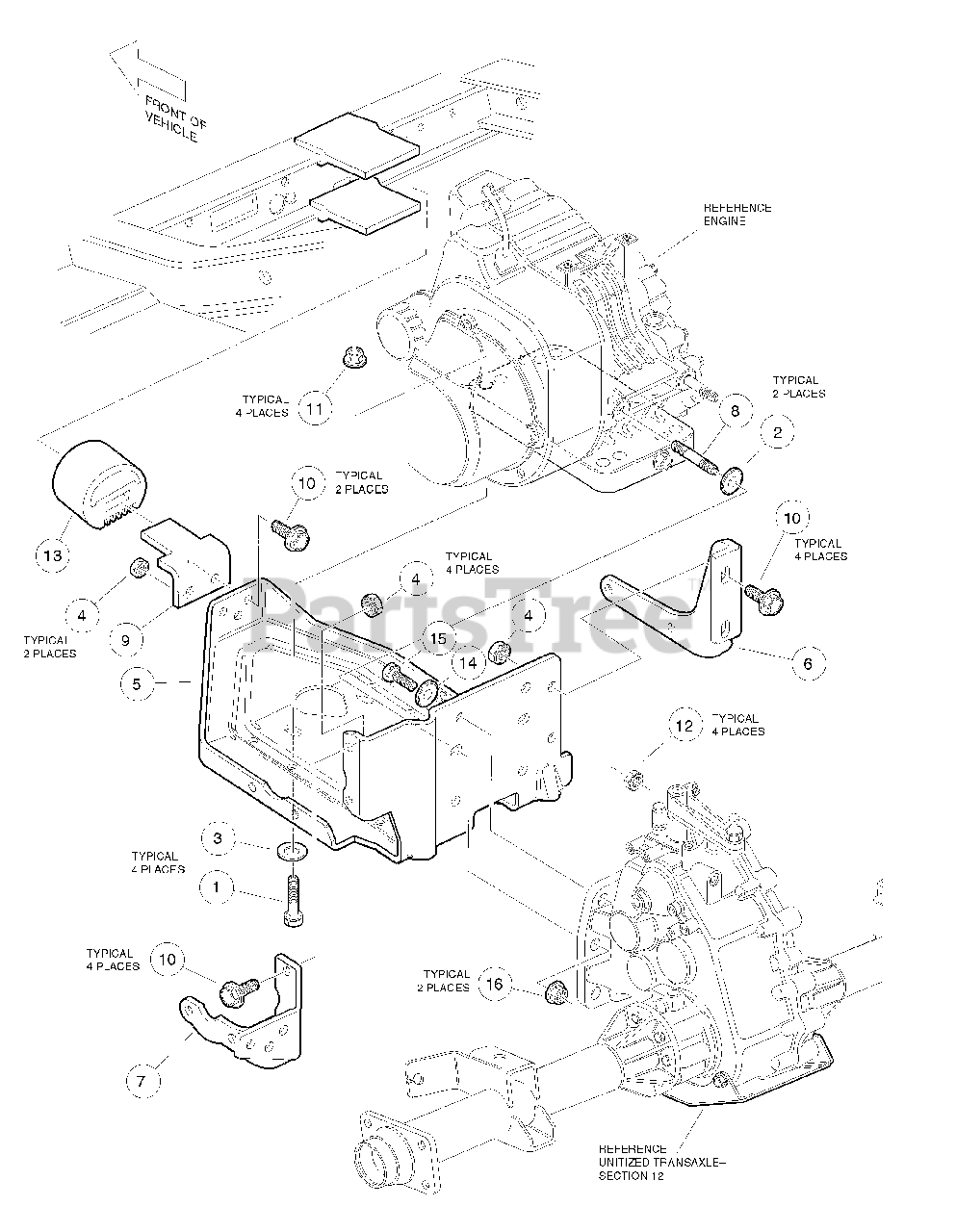

Engine Mounting Parts Diagram

  • Title

1

Husqvarna 603000111

Bolt, Hex-Head, 5/16-18 X 1.50

$

$

Not available

2

Husqvarna 603000127

Washer, 5/16 Flat

$

$

Not available

3

Husqvarna 603000145

Washer, 5/16 Extra Thick Flat

$

$

Not available

4

Husqvarna 603000193

Nut, 5/16-24 Hex Head Cone

$

$

Not available

5

Husqvarna 603000505

Plate, Engine Mounting

$

$

Not available

6

Husqvarna 603000510

Stiffener

Note: (PTO Side)

$

$

Not available

7

Husqvarna 603000511

Stiffener

Note: (Flywheel Side)

$

$

Not available

8

Husqvarna 603000513

Stud, M8-1.25 X 50 mm Two-Ended

$

$

Not available

9

Husqvarna 603000519

Snubber Bracket

$

$

Not available

10

Husqvarna 603000556

Screw, 5/16-24 X 0.875 Grade-8

$

$

Not available

11

Husqvarna 603000616

Locknut, 5/16-18 Hex Flange

$

$

Not available

12

Husqvarna 603000780

Locknut, 3/8-16 Flanged Dimple

$

$

Not available

13

Husqvarna 603000133

Inner Frame Snubber

$

$

Not available

14

Husqvarna 603000055

Washer, 3/8 Type A Flat

$

$

Not available

15

Husqvarna 603000059

Screw, Cap-hex Hd 3/8-16x1.25

$

$

Not available

16

Husqvarna 603000512

Nut Flg, M8 X 1.25 Serrated

$

$

Not available
