HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Electrical Components, Front Body Parts Diagram

4x2 Utility Vehicle

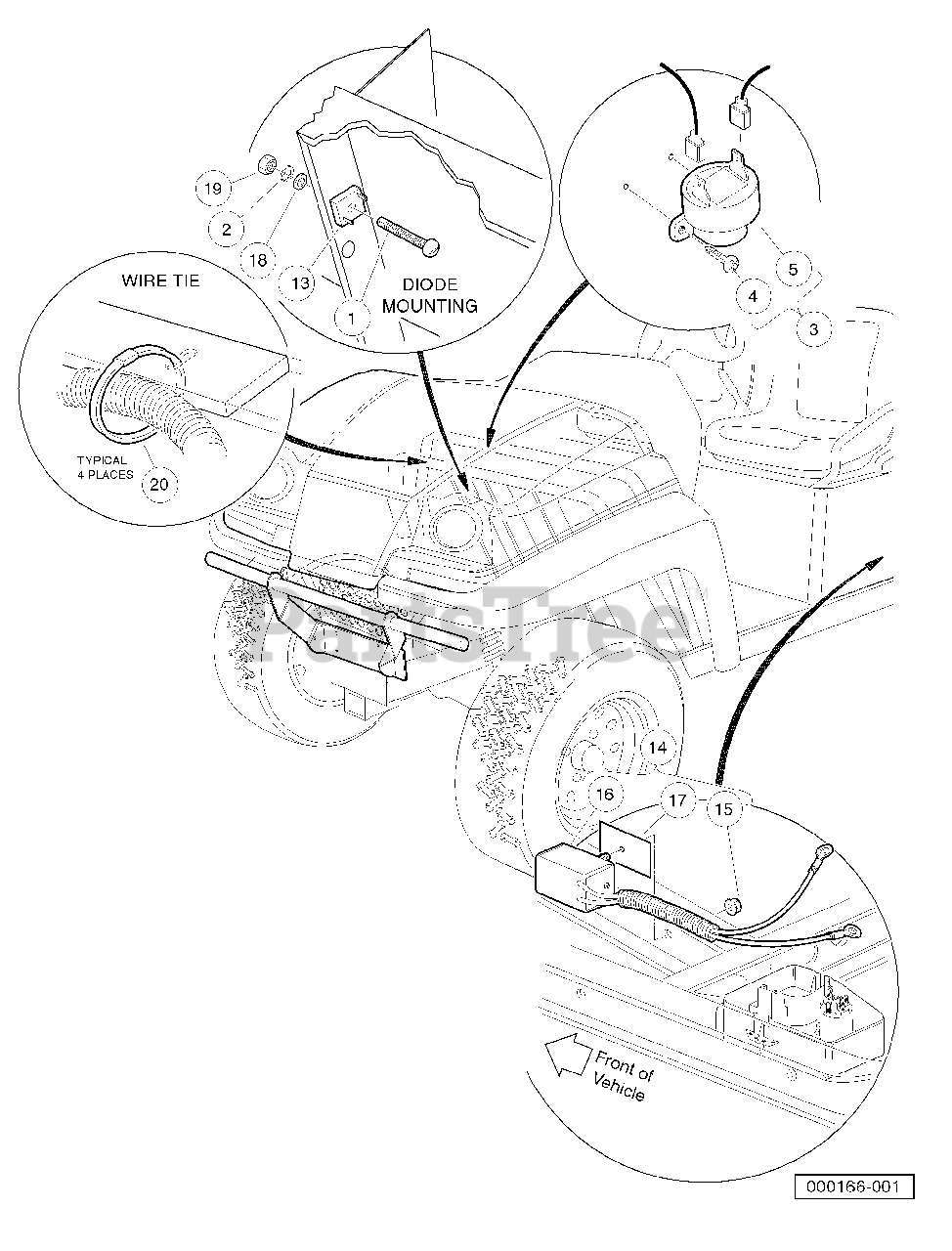

Electrical Components, Front Body Parts Diagram

  • Title

1

Husqvarna 603000114

Screw, #10-32 X 1.25 Rd Hd Mch

$

$

Not available

2

Husqvarna 603000061

Washer, #10 Split Lock

$

$

Not available

3

Husqvarna 603000372

Kit, Reverse Buzzer

Note: (includes items 4 through 12)

$

$

Not available

4

Husqvarna 603002034

Locknut, #6-32 Whiz

$

$

Not available

5

Husqvarna 603000140

Washer, #4 Flat

$

$

Not available

6

Husqvarna 603002086

Screw, #6-32 X 1/2 Hex Washer-Head

$

$

Not available

7

Husqvarna 603000370

Screw, #4-24 X 0.33 Pan-Head Machine

$

$

Not available

8

Husqvarna 603000371

Buzzer, Reverse

Note: (9-48 VDC)

$

$

Not available

9

Wire Assembly Black #18

$

$

Not available

10

Husqvarna 603002349

Screw, #4-40 X 0.75 Round-Head Machine

$

$

Not available

11

Husqvarna 603000086

Nut, #4-40 Hex Machine

$

$

Not available

12

Husqvarna 603000087

Lockwasher, #4 Helical Split

$

$

Not available

13

Husqvarna 603000433

Limiter, Voltage

$

$

Not available

14

Husqvarna 603000865

Kit, Diode

Note: (includes items 15 through 17)

$

$

Not available

15

Husqvarna 603000616

Locknut, 5/16-18 Hex Flange

$

$

Not available

16

Husqvarna 603000826

Diode Assembly

$

$

Not available

17

Husqvarna 603000845

Thermal Pad

$

$

Not available

18

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

19

Husqvarna 603000084

Nut, #10-32 Hex

$

$

Not available

20

Husqvarna 603000093

Tie Wrap, 11" Nylon

$

$

Not available
