HUV 4213 - Husqvarna 4x2 Utility Vehicle (2006-11) Drive Clutch Parts Diagram

4x2 Utility Vehicle

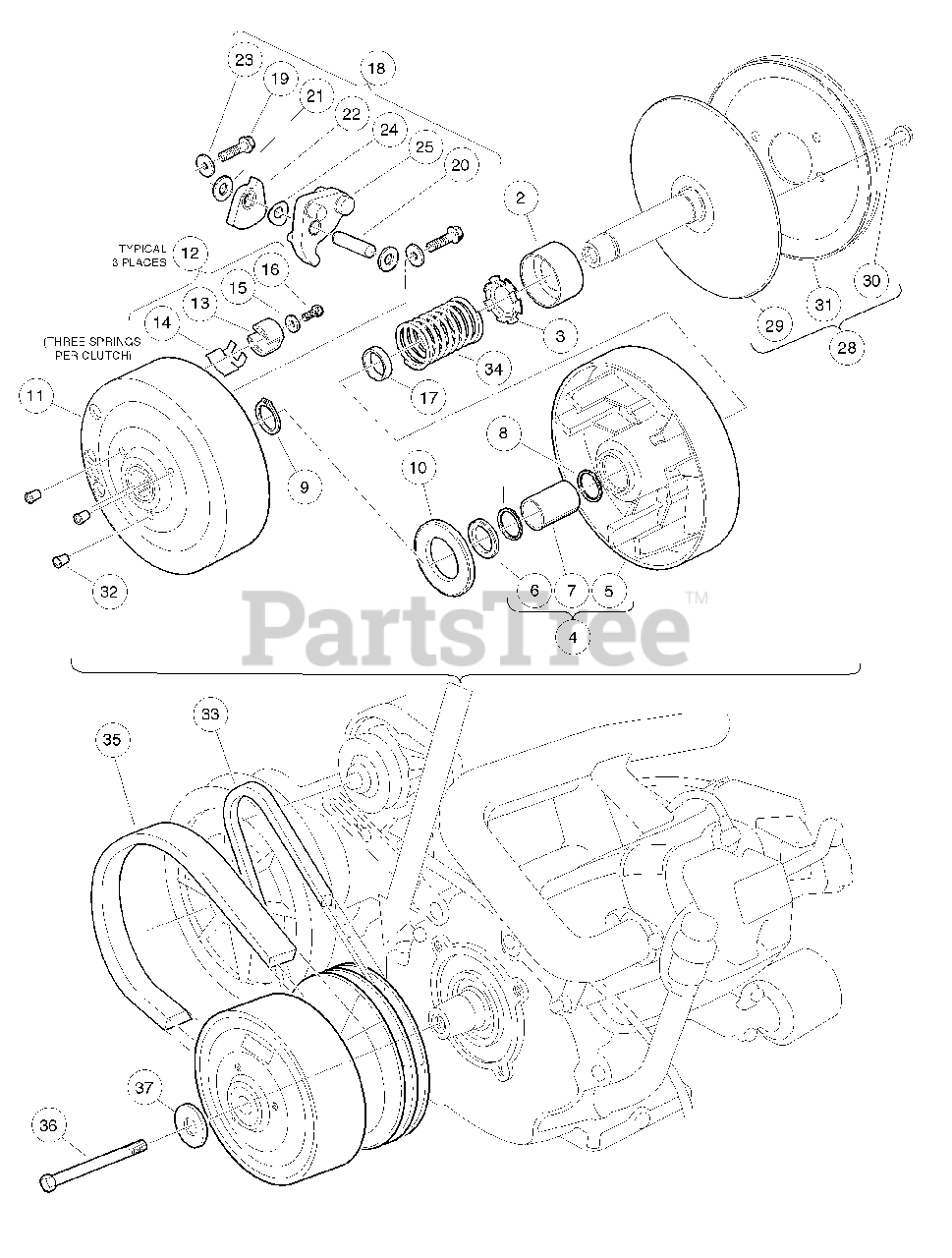

Drive Clutch Parts Diagram

  • Title

1

Husqvarna 603000517

Assembly, Drive Clutch

Note: (includes items 2 through 37)

$

$

Not available

2

Husqvarna 603000195

Bearing, Idler

$

$

Not available

3

Husqvarna 603000196

Retainer, Spring

$

$

Not available

4

Husqvarna 603000197

Movable-Face Assembly

Note: (includes items 5 through 7)

$

$

Not available

5

Drive Clutch Movable Face

$

$

Not available

6

Husqvarna 603000198

Retainer

$

$

Not available

7

Bushing, Split, Drive Clutch

$

$

Not available

8

Husqvarna 603000199

Ring, Spiral Backup

$

$

Not available

9

Husqvarna 603000200

Ring, 0.810" Internal Retaining

$

$

Not available

10

Husqvarna 603000201

Washer, Thrust

$

$

Not available

11

Husqvarna 603000202

Drive Hub Assy, Drive Clutch

$

$

Not available

12

Husqvarna 603000227

Kit, Drive Clutch Button

Note: (includes items 13 through 16)

$

$

Not available

13

Husqvarna 603000203

Driver, Drive Clutch

$

$

Not available

14

Husqvarna 603000219

Spring, Drive Button

$

$

Not available

15

Husqvarna 603000051

Washer, #10 Type A Flat

$

$

Not available

16

Husqvarna 603000092

Screw, #10-24 X 0.50 Hex-Head

$

$

Not available

17

Husqvarna 603000285

Spacer, Fixed Face Shaft

$

$

Not available

18

Husqvarna 603000369

Kit, Drive Clutch Weight

Note: (includes items 19 through 25)

$

$

Not available

19

Husqvarna 603003068

Screw, 1/4-20 X 1.00 Hex Head

$

$

Not available

20

Pin, 0.3752 X 1.50 Dowel

$

$

Not available

21

Husqvarna 603000204

Washer, 0.38" ID Delrin Flat

$

$

Not available

22

Clutch Weight, Secondary

$

$

Not available

23

Washer

$

$

Not available

24

Husqvarna 603000282

Washer, Wave

$

$

Not available

25

Weight, Primary

$

$

Not available

26

Husqvarna 603000473

Kit, Fixed Face - Drive

Note: (includes items 27 and 28)

$

$

Not available

27

Desiccant Bag

Note: (Not Shown)

$

$

Not available

28

Fixed Face Drive

Note: (includes items 29 through 31)

$

$

Not available

29

Fixed Face Assembly, Drive Clutch

$

$

Not available

30

Husqvarna 603000220

Screw, 5/16-18 X 0.75 Thread-Forming

$

$

Not available

31

Pulley, Drive Clutch

$

$

Not available

32

Cap Plug

$

$

Not available

33

Husqvarna 603000589

V-Belt

$

$

Not available

34

Husqvarna 603000828

Spring, Drive Clutch

$

$

Not available

35

Husqvarna 603000830

Be It, Drive

$

$

Not available

36

Husqvarna 603004380

Screw 3/8-24x5.5 Hex Loc Ptch

$

$

Not available

37

Husqvarna 603003617

Washer, 3/8 Type B Flat

$

$

Not available
